Titanium Flange
Created with Pixso.

WN Gr2 Titanium Flange , Welding Neck Flange DN10-DN600 RF Surface

WN Gr2 Titanium Flange , Welding Neck Flange DN10-DN600 RF Surface

Brand Name: LHTI
Model Number: LH-32
MOQ: 5 piece
Price: US dollar $180/pc-US dollar $300/pc
Payment Terms: L/C, D/P, T/T, Western Union,Paypal etc
Supply Ability: 500 piece per week
Detail Information
Place of Origin:
Baoji Shaanxi China
Certification:
ISO9001
Material:
Titanium
Type:
WN
Standard:
ANSI B16.5
Grade:
Gr2
Surface:
RF
Application:
Oil.chemcial Industrial
Keyword:
WN Titanium Flange
Packaging Details:
standard export plywood case
Supply Ability:
500 piece per week
Highlight:

weld neck pipe flanges

,

wn rf flange

Product Description

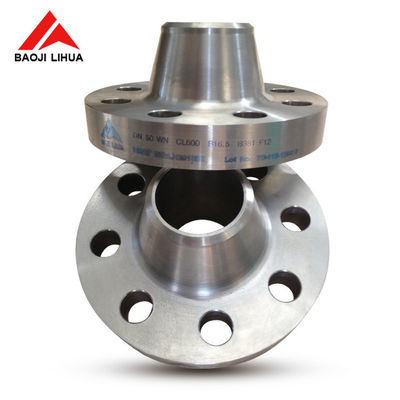

ANSI B16.5 Gr2 WN RF welding neck titanium flange



LHTI provides all types of titanium flange per ASME B16.5 specification, mainly titanium slip-on flange, titanium blind flange, titanium weld neck flange and titanium lap joint flange. Material is mainly C.P. Titanium.



1.WN Titanium flange



products ASME B 16.5 Ti gr2 titanium WN rf flange oil & gas industry &oil flange
Material Grade Gr2, (Gr7, GR12)
Certification ISO9001:2008, EN10204.3.1
Standard ANSI B16.5, ASME B16.5, ASME B16.47,
size 1/2"~ 24"
Pressure Class 150LB, 300LB, 600 LB,900LB, 1500LB, 2500LB
Technique Forged and CNC Machined
type WN
Flange surface FF,RF,TG,RJ ,MFM etc





WN Gr2 Titanium Flange , Welding Neck Flange DN10-DN600 RF Surface 0

WN Gr2 Titanium Flange , Welding Neck Flange DN10-DN600 RF Surface 1



1/2" through 60" NPS (ANSI) [Raised Face only] Class 150 through 2500
12" through 60" NPS (MSS) Class 150 through Class 900 [Raised Face] Class 300 through Class 900

CL150 Titanium Weld Neck Flange
Nom. Pipe
Size
Flange Dia. Flange Thick Hub Dia. At Base Raised Face Dia. Hub Dia. at Weld Point No.
of
Holes
Dia.
of
Bolts
Dia. Of
Bolt Circle
Bore
Dia.
Length
Thru Hub
1/2 3-1/2 7/16 1-3/16 1-3/8 0.84 4 1/2 2-3/8 0.62 1-7/8
3/4 3-7/8 1/2 1-1/2 1-11/16 1.05 4 1/2 2-3/4 0.82 2-1/16
1 4-1/4 9/16 1-15/16 2 1.32 4 1/2 3-1/8 1.05 2-3/16
1-1/4 4-5/8 5/8 2-5/16 2-1/2 1.66 4 1/2 3-1/2 1.38 2-1/4
1-1/2 5 11/16 2-9/16 2-7/8 1.90 4 1/2 3-7/8 1.61 2-7/16
2 6 3/4 3-1/16 3-5/8 2.38 4 5/8 4-3/4 2.07 2-1/2
2-1/2 7 7/8 3-9/16 4-1/8 2.88 4 5/8 5-1/2 2.47 2-3/4
3 7-1/2 15/16 4-1/4 5 3.50 4 5/8 6 3.07 2-3/4
3-1/2 8-1/2 15/16 4-13/16 5-1/2 4.00 8 5/8 7 3.55 2-13/16
4 9 15/16 5-5/16 6-3/16 4.50 8 5/8 7-1/2 4.03 3
5 10 15/16 6-7/16 7-5/16 5.56 8 3/4 8-1/2 5.05 3-1/2
6 11 1 7-9/16 8-1/2 6.63 8 3/4 9-1/2 6.07 3-1/2
8 13-1/2 1-1/8 9-11/16 10-5/8 8.63 8 3/4 11-3/4 7.98 4
10 16 1-3/16 12 12-3/4 10.75 12 7/8 14-1/4 10.02 4
12 19 1-1/4 14-3/8 15 12.75 12 7/8 17 12.00 4-1/2
14 21 1-3/8 15-3/4 16-1/4 14.00 12 1 18-3/4 13.25 5
16 23-1/2 1-7/16 18 18-1/2 16.00 16 1 21-1/4 15.25 5
18 25 1-9/16 19-7/8 21 18.00 16 1-1/8 22-3/4 17.25 5-1/2
20 27-1/2 1-11/16 22 23 20.00 20 1-1/8 25 19.25 5-11/16
24 32 1-7/8 26-1/8 27-1/4 24.00 20 1-1/4 29-1/2 23.25 6

Other related products

WN Gr2 Titanium Flange , Welding Neck Flange DN10-DN600 RF Surface 2



---GR2 titanium hex bolts DIN933 and titanium hex nut DIN934

---Pure titanium pipe fitting,titanium elbow,concentric reducer etc

---Titanium seamless / welding tube for chemcial industrial



5.Customer Feedback Picture

WN Gr2 Titanium Flange , Welding Neck Flange DN10-DN600 RF Surface 3



Any inquiry please feel free contact us.
