Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-TB
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: US dollar $15/kg--US dollar $30/kg
Packaging Details: Plywood box for export
Delivery Time: 5-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 kgs per month
Product Name: |
Titanium Rod |
Standard: |
ASTM B348 |
Material: |
Gr1, Gr2 |
Application: |
Industrial & Medical Use |
Shape: |
Round |
Diameter: |
6-350mm |
Length: |
As Per Your Requirements |
Surface: |
Bright |
Product Name: |
Titanium Rod |
Standard: |
ASTM B348 |
Material: |
Gr1, Gr2 |
Application: |
Industrial & Medical Use |
Shape: |
Round |
Diameter: |
6-350mm |
Length: |
As Per Your Requirements |
Surface: |
Bright |
Hot sale ASTM B348 polished titanium bar gr1 gr2 titanium round bar / rod
1. Our Factory
2. Product Information of Titanium Rod
| Product | titanium bar |
| Item Name | Hot sale ASTM B348 polished titanium bar gr1 gr2 titanium round bar / rod |
| Application | Industry |
| Shape | Round, Square, Hex |
| Material | GR1, GR2, GR5, GR7, GR12, GR23, GR4 ELI, GR5 ELI etc. |
| Standard | ASTM B348, ASME SB348, ASTM F67, ASTM F136 |
| Diameter | 6-350mm |
| Length | Max 6000mm |
| Surface | Polishing, Pickling |
| Grade | Technology | Standard | Specification(mm) |
|
Gr1.Gr2.Gr3.Gr4.Gr5.Gr7. Gr9.Gr12. |
Forged | ASTM B348 F136 F67 | Φ(60~350)X≤4000 |
| Rolled | Φ(6~100)X≤6000 |
3. Advantages of Titanium Rod
4. Tolerance of Titanium Rod
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | |||||||

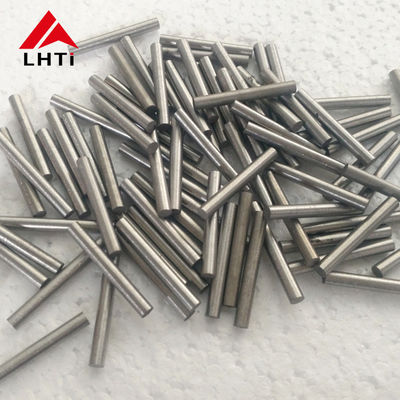

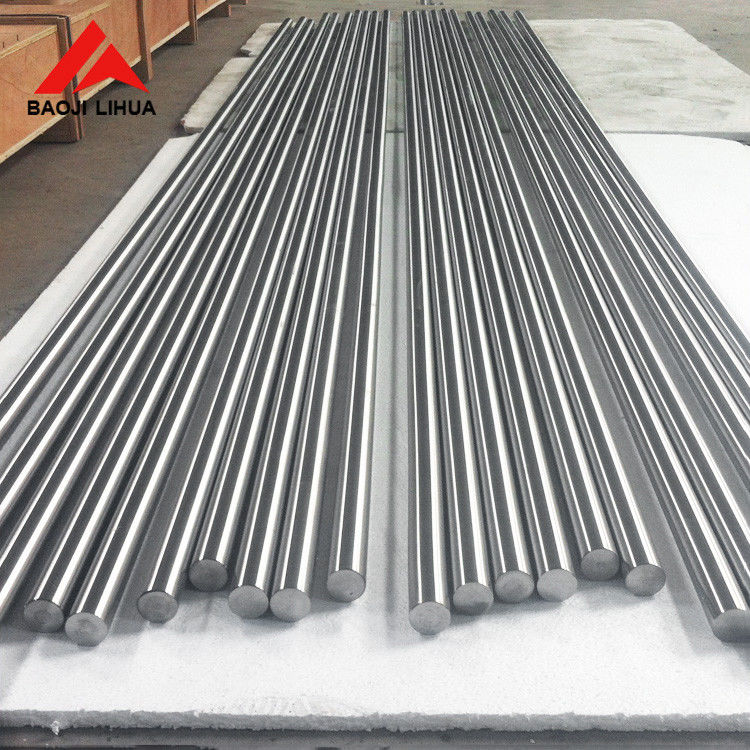

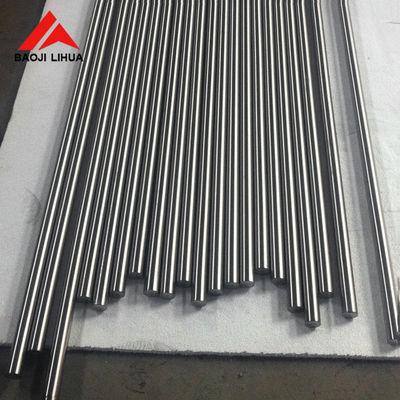

5. Detailed Images of Titanium Rod
6. Our Services
(1) We have the stocks so we would provide our clients the short delivery time.
(2) Strict control from raw materials till products finished, so the quality is guaranteed.
(3) Customized sizes are offered as well as specified sizes and multiple sizes.
(4) Strict quality test from raw material to product.
(5) Original mill sheet test reports EN 10204.3.1 is available.
7. FAQ
| FAQ |
| Q1.--How can you ensure the product quality? |
| --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
| Q2.--Can you print our LOGO on the products? |
| --Sure, and we welcome the customerized products. |
| Q3.--Can we get the free sample? |
| --Sure. |
| Q4.--What about the payment terms? |
| --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
| Q5.--Do you have your website? |
| --Yes, Please click here. http://www.metalstitanium.com(Independent website) |
| Q6.--What is the necessary information for a inquiry? |
| --Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
