Home > products > Titanium Ring > Industrial Titanium Forged Ring Grade 5 Ti6Al4V 200mm 250mm 300mm Big Size

Industrial Titanium Forged Ring Grade 5 Ti6Al4V 200mm 250mm 300mm Big Size

Product Details

Place of Origin: Baoji, Shaanxi, China

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: Forged titanium ring

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: USD15.5-58.5 per kg

Packaging Details: Standard export packging, Carton box/ plywood case outside

Delivery Time: 10-20 work days

Payment Terms: T/T, Western Union, L/C, D/A, D/P

Supply Ability: 20000 kgs per month

Get Best Price
Highlight:

forged titanium ring

,

seamless rolled rings

Standard:
ASTM B381
OD:
200mm 250mm 300mm,or As Customized
Wall Thickness:
10mm 25mm 30mm 40mm, Or As Customers' Requests
Material:
Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 Etc.
Application:
Chemical Industry Etc.
Surface:
Bright
Technique:
Forged, Machined
MOQ:
1 Piece
Standard:
ASTM B381
OD:
200mm 250mm 300mm,or As Customized
Wall Thickness:
10mm 25mm 30mm 40mm, Or As Customers' Requests
Material:
Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 Etc.
Application:
Chemical Industry Etc.
Surface:
Bright
Technique:
Forged, Machined
MOQ:
1 Piece
Industrial Titanium Forged Ring Grade 5 Ti6Al4V 200mm 250mm 300mm Big Size



Industry use titanium forging ring grade 5 Ti6Al4V 200mm 250mm 300mm big size







Product name: forged titanium ring

Standard: ASTM B381

Grade: GR1,GR2,GR5,GR7,GR9,GR12

Application:Chemical industry etc.



1.Common Dimensions:
Outside Diameter: 200~400     400~700     700~900     900~1300mm

Inside Diameter:   100~300     150~500      300~700     400~900mm

Height:                  20~150       30~250        35~300       50~400mm





2.Mechanical Properties:



ASTM Grade Alloy  Composition Tensile Strength Yield Strength Elongation   %
ksi Mpa ksi Mpa
Gr1 Unalloyed Ti ("Pure") 35A -CP1  35 240 25 170 24
Gr2 Unalloyed Ti ("Pure") 50A -CP2 50 345 40 275 20
Gr5 Ti 6Al 4V 130 895 120 828 10E
Gr7 T-50A 0.15Pd 50 345 40 275 20
Gr9 Ti 3Al 2.5V 90 620 70 483 15F
Gr12 Ti-0.3Mo-0.8Ni 70 485 50 345 18





3.Application for titanium ring for industry using



1)Aeronautic

2)Medical

3)Chemical engineering & Petrochemical technology

4)Electrolysis

5)Electroplating



Detailed products:

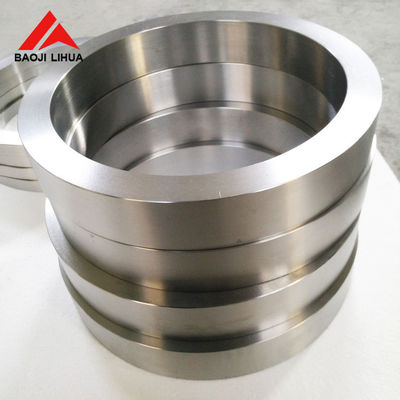

 Industrial Titanium Forged Ring Grade 5 Ti6Al4V 200mm 250mm 300mm Big Size 0

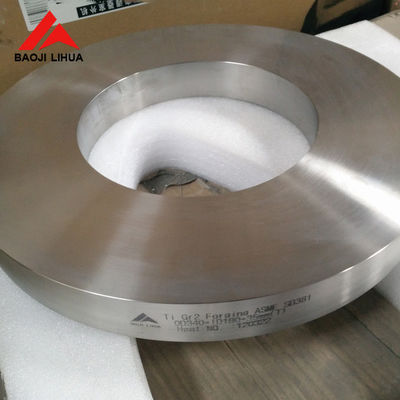

Industrial Titanium Forged Ring Grade 5 Ti6Al4V 200mm 250mm 300mm Big Size 1

Industrial Titanium Forged Ring Grade 5 Ti6Al4V 200mm 250mm 300mm Big Size 2





We understand that your business depends on getting the right materials in the correct size, finish, quantity and quality. We make it our mission to provide you with exactly what you need at the lowest possible price.

Our sole purpose of providing quality products and top notched personal service.







Packaging & Shipping

We will choose shipping way for customers according to the actual weight of goods.

Express:DHL,FedEX,TNT,UPS (choose the most favorable one based on different countries)

Air:Safe and fast international airlines

Sea:Safe and fast international sealines






About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing for titanium mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628.Lihua is certified by ISO9001:2008, TUV and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.
