Product Details
Place of Origin: Baoji City Shaanxi Province China
Brand Name: LHTi
Certification: ISO9001
Model Number: LHTI-012
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD18.5-38 per kg
Packaging Details: Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request
Delivery Time: 7-30work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5Ton per month
Standard: |
ASTM B381 |
OD: |
200-1300mm |
ID: |
100-900mm |
Height: |
35*250mm |
Technique: |
Forging |
Material: |
Titanium GR1,GR2,GR3,GR4,GR5,GR7,GR9,GR12 |
Certification: |
CE,ISO9001,SGS |
Shape: |
Round |
Application: |
Chemical Industry, Aviation Etc. |
Surface: |
Machined Bright |
Standard: |
ASTM B381 |
OD: |
200-1300mm |
ID: |
100-900mm |
Height: |
35*250mm |
Technique: |
Forging |
Material: |
Titanium GR1,GR2,GR3,GR4,GR5,GR7,GR9,GR12 |
Certification: |
CE,ISO9001,SGS |
Shape: |
Round |
Application: |
Chemical Industry, Aviation Etc. |
Surface: |
Machined Bright |
High-Performance ASTMB381 Gr2 dia 30mm 40mm 50mm Titanium Rings
We supply large and small compression forgings, including rings, discs, bars,shafts, rectangular blocks, etc. The unique metallurgical properties of the forgings give them extremely high toughness and strength, suitable for a variety of corrosion resistance applications requiring a combination of strength and toughness.
1. Specifications:
Product name:Titanium forging Ring
Type: Round ring
Material Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 etc.
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Technique:Forged,CNC machined
Physical Properties
| Physical Properties | |||||
| Tensile Strength(min) | Yield Strength(min) | Elongation(%) | |||
| KSI | MPa | KSI | MPa | ||
| Grade 1 | 35 | 240 | 20 | 138 | 24 |
| Grade2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 4 | 80 | 550 | 70 | 483 | 15 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 483 | 15 |
| Grade 12 | 70 | 483 | 50 | 345 | 18 |
2. AVAILABLE SIZES
Titanium Forged disc up to 2800kg per piece
Titanium Forged block is squares or rectangles up to 1200mm width
Titanium Forged Ring Size range from 200 " - 3000mm
Titanium Forged bar Size range from 30 " - 400mm
TYPE: Flange, Ring, Block, Disc, Shaft, Billet, Slab
3. Application for titanium ring for industry using
1)Aeronautic
2)Medical
3)Chemical engineering & Petrochemical technology
4)Electrolysis
5)Electroplating

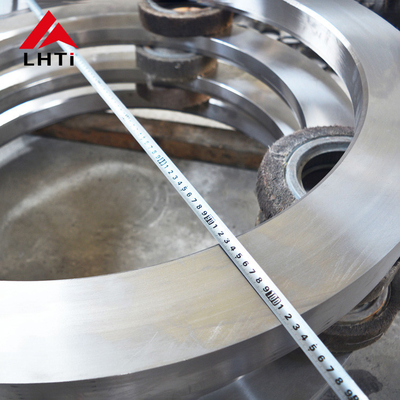

4. Detail images
5. Buyers Feedback
6.Other titanium forged products:
Titanium forged disck, titanium block, titanium flange,titanium forging tube:
7.About our company:
8. FAQ:
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
