F2 Titanium Flange Welding Neck Rustproof Gr2 1”Sch.40s #150 RF ASME SB 381

Product Details

Place of Origin: China titanium valley

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: WN

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $60/pcs

Packaging Details: carton case or Plywood case

Delivery Time: 10 days

Payment Terms: L/C, T/T, Western Union, D/P

Supply Ability: 30000pcs per month

Get Best Price
Highlight:

weld neck pipe flanges

,

wn rf flange

Material:
Gr2 /F2
Type:
WN Flange
Standard:
ASME SB 381
Class:
#150
Certificate:
EN 10204-3.1
Products Name:
F2 Titanium Flanges Welding Neck Gr2 1”Sch.40s #150 RF ASME SB 381
Size:
1”Sch.40s
Material:
Gr2 /F2
Type:
WN Flange
Standard:
ASME SB 381
Class:
#150
Certificate:
EN 10204-3.1
Products Name:
F2 Titanium Flanges Welding Neck Gr2 1”Sch.40s #150 RF ASME SB 381
Size:
1”Sch.40s
F2 Titanium Flange Welding Neck Rustproof Gr2 1”Sch.40s #150 RF ASME SB 381

F2 Titanium flanges welding neck Gr2 1”Sch.40s #150 RF ASME SB 381





一. titanium flange application



Mainly used in petrochemical, medical and health, power, aerospace, military, fire protection, metallurgy, shipbuilding, gas, and Environmental protection requires high pressure.



F2 Titanium Flange Welding Neck Rustproof Gr2 1”Sch.40s #150 RF ASME SB 381 0





Product name Titanium Flange
Material grade Gr1,Gr2,Gr5,Gr7,Gr12
Certificate ISO9001:2008
Standard ANSI B16.5/ASTM B16.5
Size NPS 1/2"~ 24"
Pressure Class150-class 2500
Technique Forged and CNC Machined
Type WNRF , SORF , BLIND ,SW, PL
Flange surface FF,RF,TG,RJ etc
Application Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Advantage 1. Long service life
2. Corrosion -resistant
3. Hign yeiled strenth and tensile strength.





Titanium flange sealing face



raised surface (RF), Male and Female (MF), Tenon groove surface (TG), metal ring connection surface ,total four kinds.





titanium flanges function



The flange, gasket and bolt are connected to each other as a detachable connection of a group of combined sealing structures.



Flange connection is an important connection method for pipeline construction.

The flange connection is easy to use and can withstand large pressures.



Different grade titanium



grade Tensile strength(min) Yeild strength(min) Elongation(%)
component ksi MPa ksi MPa
Gr1 Ta1 35 240 20 138 24
Gr2 Ta2 50 345 40 275 20
Gr5 Ti6Al4V 130 895 120 828 10
Gr7 Ti-0.2Pd 50 345 40 275 20
Gr9 Ti-3Al-2.5V 90 620 70 483 15
Gr12 Ti-0.3Mo-0.8Ni 70 483 50 345 18






F2 Titanium Flange Welding Neck Rustproof Gr2 1”Sch.40s #150 RF ASME SB 381 1

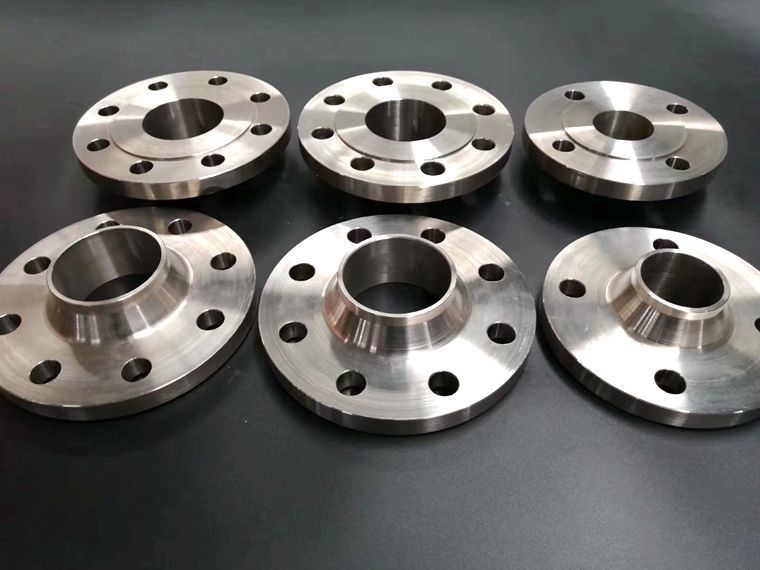

二. titanium flanges picture

F2 Titanium Flange Welding Neck Rustproof Gr2 1”Sch.40s #150 RF ASME SB 381 2

F2 Titanium Flange Welding Neck Rustproof Gr2 1”Sch.40s #150 RF ASME SB 381 3



三  Inspection  (BV ,SGS ,TUV .so on)





All Test Items



Visual testing (VT)

Ultrasonic Testing (UT)

Radiographic Testing (RT)

Magnetic particle testing (MT)

Penetrant Testing/Dye penetrate (PT)

Eddy Current testing (ET)

Acoustic Emission(AE)

F2 Titanium Flange Welding Neck Rustproof Gr2 1”Sch.40s #150 RF ASME SB 381 4
