DN32 Titanium Welding Neck Flange Gr2 UNS R50400 Type 11B PN16 EN1092-1

Product Details

Place of Origin: Baoji city

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: WN

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $49/pcs

Packaging Details: carton case or Plywood case

Delivery Time: 15 days

Payment Terms: L/C, T/T, Western Union, D/P

Supply Ability: 30000pcs per month

Get Best Price
Highlight:

weld neck pipe flanges

,

titanium gr 2 flanges

Material:
Gr2 /UNS R50400
Type:
Type 11B WN Flange
Standard:
EN1092-1
Pressure:
PN16
Certificate:
EN 10204-3.1
Products Name:
Titanium Flanges Welding Neck Gr2 UNS R50400 DN32 Type 11B PN16 In EN1092-1
Dimension:
DN25 DN32
Material:
Gr2 /UNS R50400
Type:
Type 11B WN Flange
Standard:
EN1092-1
Pressure:
PN16
Certificate:
EN 10204-3.1
Products Name:
Titanium Flanges Welding Neck Gr2 UNS R50400 DN32 Type 11B PN16 In EN1092-1
Dimension:
DN25 DN32
DN32 Titanium Welding Neck Flange Gr2 UNS R50400 Type 11B PN16 EN1092-1

Titanium flanges welding neck Gr2 UNS R50400 DN32 Type 11B PN16 in EN1092-1





一. titanium flanges function



ANSI B16.5 gr2 WN RF welding neck titanium flange



The flange, gasket and bolt are connected to each other as a detachable connection of a group of combined sealing structures.



Flange connection is an important connection method for pipeline construction.

The flange connection is easy to use and can withstand large pressures.



Product name Titanium Flange
Material grade Gr1,Gr2,Gr5,Gr7,Gr12
Certificate ISO9001:2008
Standard ANSI B16.5/ASTM B16.5
Size NPS 1/2"~ 24"
Pressure Class150-class 2500
Technique Forged and CNC Machined
Type WNRF , SORF , BLIND ,SW, PL
Flange surface FF,RF,TG,RJ etc
Application Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Advantage 1. Long service life
2. Corrosion -resistant
3. Hign yeiled strenth and tensile strength.





Titanium flange sealing face



raised surface (RF), Male and Female (MF), Tenon groove surface (TG), metal ring connection surface ,total four kinds.





titanium flange application



Mainly used in petrochemical, medical and health, power, aerospace, military, fire protection, metallurgy, shipbuilding, gas, and Environmental protection requires high pressure.



DN32 Titanium Welding Neck Flange Gr2 UNS R50400 Type 11B PN16 EN1092-1 0

DN32 Titanium Welding Neck Flange Gr2 UNS R50400 Type 11B PN16 EN1092-1 1

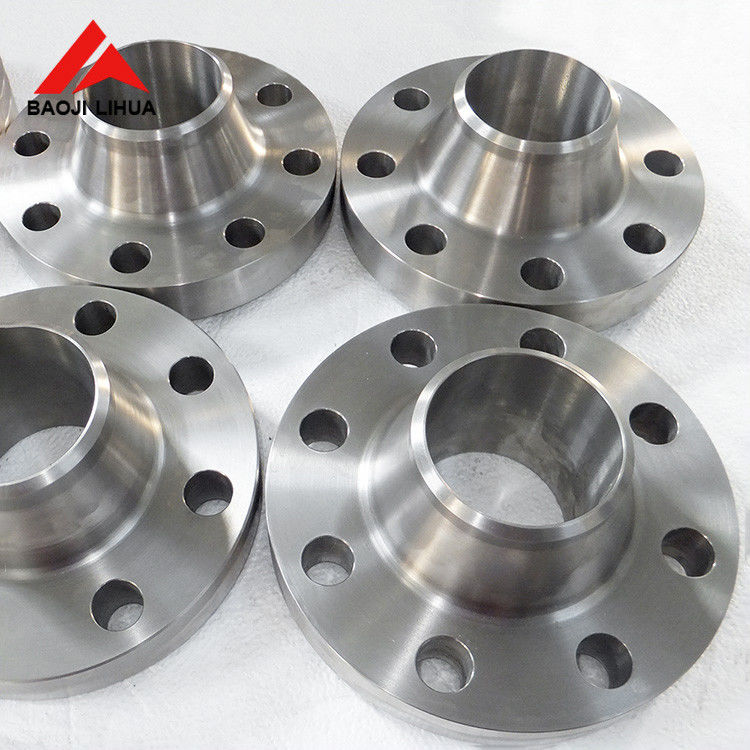

二. titanium flanges picture

DN32 Titanium Welding Neck Flange Gr2 UNS R50400 Type 11B PN16 EN1092-1 2

DN32 Titanium Welding Neck Flange Gr2 UNS R50400 Type 11B PN16 EN1092-1 3

Grade 2 titanium flange is the most commonly requested in the pipe valve and fitting industry, with great strength and corrosion resistance properties.



Grade 12 titanium flange  retains superior strength at higher temperatures and is known for its malleability and weldability. Titanium is often used in applications requiring high temperature and pressure service but with reduced weight.




三  Inspection  (BV ,SGS ,TUV .so on)

DN32 Titanium Welding Neck Flange Gr2 UNS R50400 Type 11B PN16 EN1092-1 4





Kindly find below specifications for titanium flanges:
Standard: ANSI B16.5, ANSI B16.9(US standard)
Material: Gr2.Gr7.Gr12 etc
Demension: 3/8"-100"
Pressure: CL150#;CL300#;CL400#;CL600#; CL900# etc
Customized size welcome.



Standard: DIN EN 1092 & DIN2627~DIN2636 etc, (Germany standard)
Material: Gr1.Gr2.Gr5.Gr7.Gr9.Gr12 etc
Demension: DN10~DN2000 according your request.
Pressure: PN6,PN10,PN16,PN25,PN40 etc
