Home > products > Slip On Flange > ASME B16.5 Forged Titanium Flange 8" DN 200 F12 SORF CL150 Ultrasonic Testing

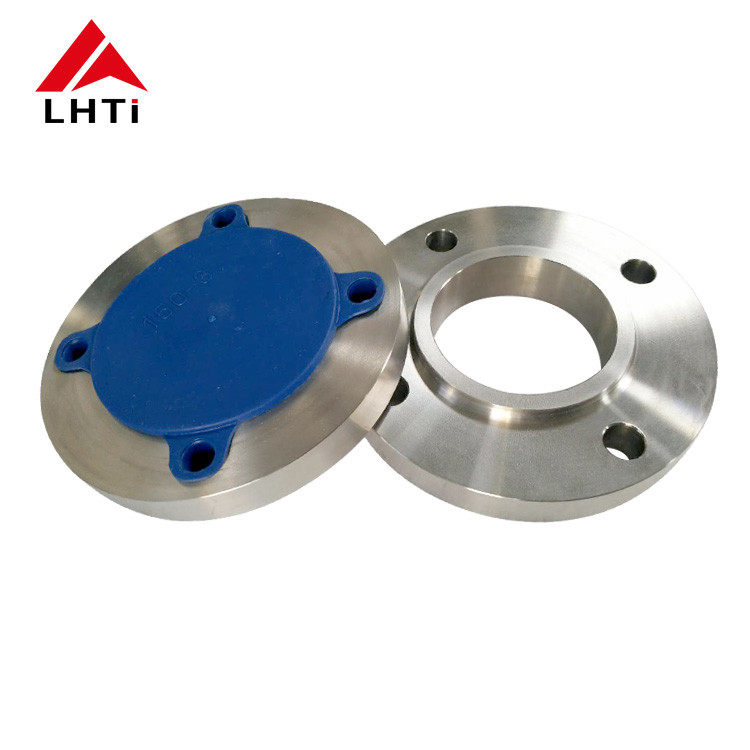

ASME B16.5 Forged Titanium Flange 8" DN 200 F12 SORF CL150 Ultrasonic Testing

Product Details

Place of Origin: China

Brand Name: LH

Certification: ISO 9001-2015

Model Number: Titanium sorf flange

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD 100/PC-USD 105/PC

Packaging Details: plywood case

Delivery Time: 10- 15 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000PCS Per month

Get Best Price
Highlight:

slip on raised face flange

,

slip on type flange

Product Name:
8" DN 200 ASME B16.5 B381 F12 SORF CL150 Titanium Forged Flange
Material Grade:
Gr12 Titanium
Sealing Surface:
RF
Pressure Class:
CL150
Standard:
ASME B 16.5 ASTM B381
Type:
SO Flange
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1, PMI TESTING
Product Name:
8" DN 200 ASME B16.5 B381 F12 SORF CL150 Titanium Forged Flange
Material Grade:
Gr12 Titanium
Sealing Surface:
RF
Pressure Class:
CL150
Standard:
ASME B 16.5 ASTM B381
Type:
SO Flange
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1, PMI TESTING
ASME B16.5 Forged Titanium Flange 8" DN 200 F12 SORF CL150 Ultrasonic Testing

 ANSI B16.5  B381 F2 SORF #150 Titanium flange

Product Description

Titanium flange (titanium flange) is a part made of non-ferrous metal titanium or titanium alloy, which connects the pipe and the pipe to each other, and is connected to the pipe end; the titanium flange has holes, and the bolts tightly connect the two flanges. The flanges are sealed with gaskets. Flanged pipe fittings (flanged pipe fittings) refer to pipe fittings with flanges (flanges or flanges).



It can be made by casting, or by screw connection or welding. Flange (joint) consists of a pair of flanges, a gasket and bolts and nuts. The gasket is placed between the sealing surfaces of the two flanges. After tightening the nut, the specific pressure on the surface of the gasket reaches a certain value and then deforms, and fills the unevenness on the sealing surface, making the connection tight and leak-proof.



Titanium flange classification



According to the connection parts: titanium flange connection is a detachable connection. According to the connected parts, it can be divided into container titanium flange and tube titanium flange.



According to the structure type: there are integral titanium flanges, butt welded titanium flanges, loose titanium flanges and threaded titanium flanges.



Titanium flange grades: TA0, TA1, TA2, TA3, TA9, TA10, TC4, (Gr1 Gr2 Gr3 Gr4 Gr5 Gr 7, Gr9)



Titanium flange supply status: R or M



Titanium flange specifications: DN10 ---- DN3000



Executive standard: GB / T, JB, ASTM, DIN



products Gr12 titanium flange
Material Grade  Gr12,  (Gr2,  GR7)
Certification    ISO9001:2008, EN10204.3.1
Standard

ANSI B16.5, ASTM B16.5, ASME B16.47,

size 8 inch /DN 200
Pressure Class

150LB,

Technique Forged and CNC Machined
type SO
Flange surface FF,RF,TG,RJ ,MFM etc



Flange size comparis

 SO 150.png









Detailed Images
