UNS R56400 Gr5 Titanium Bar 5mm-350mm Polished

Brand Name:	LHTi
Model Number:	LH-Ti05
MOQ:	1kg
Price:	23.5 USD-32.6 USD/KG
Payment Terms:	T/T,L/C,Western Union,D/A,D/P
Supply Ability:	500 tons/month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji City , Shaanxi Province , China

Certification:

ISO9001:2015

Standard:

AMS4928

Grade:

Gr5(Ti-6Al-4V)

Diameter:

5mm~350mm

Length:

500-3000MM, Or As Customer's Request

Surface:

Polished , Bright

Technique:

Rolled

Application:

Blades,discs,rings,airframes,fastners,components,vessels,cases,hubs,forgings,biomedical Implants

Shape:

Round Bar, Square Bar

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside. Or as the clients' request

Supply Ability:

500 tons/month

Highlight:

titanium alloy rod

solid titanium rod

Product Description

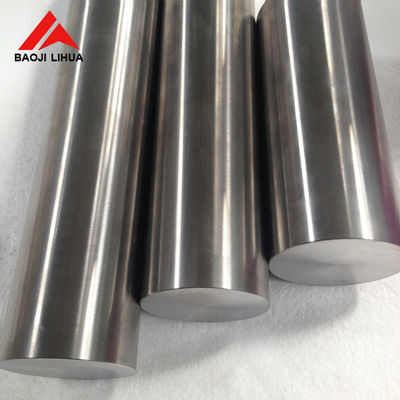

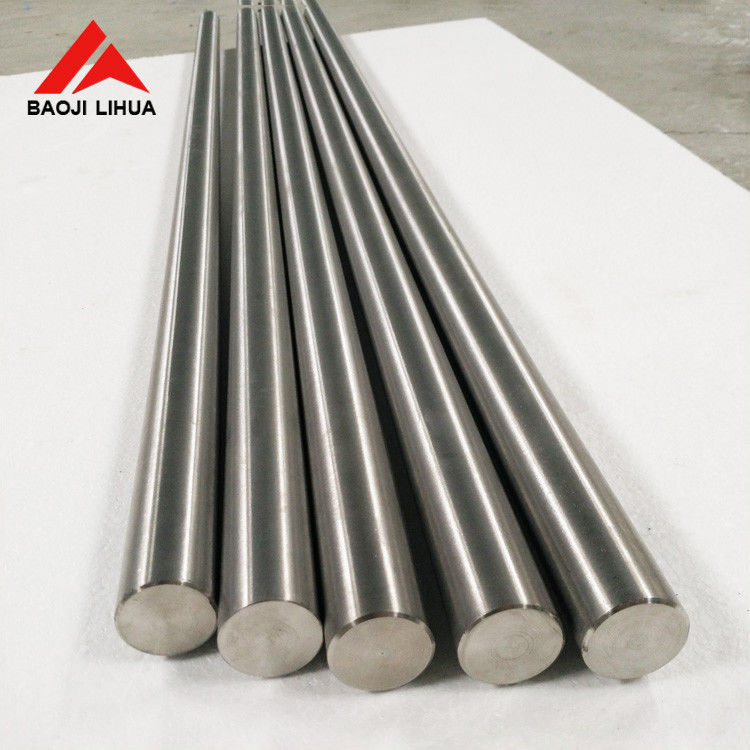

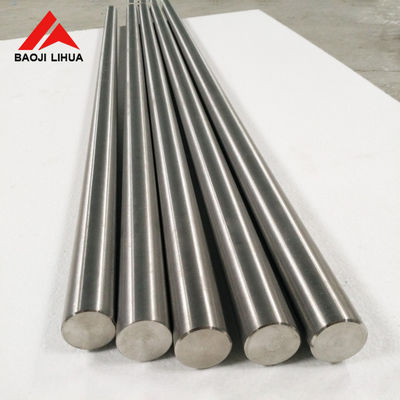

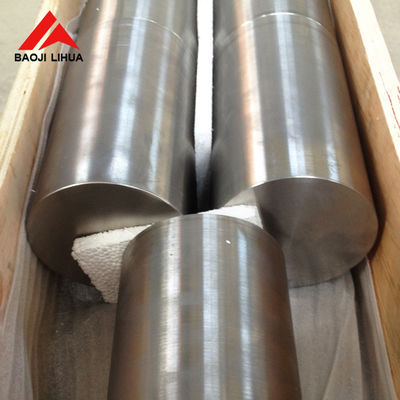

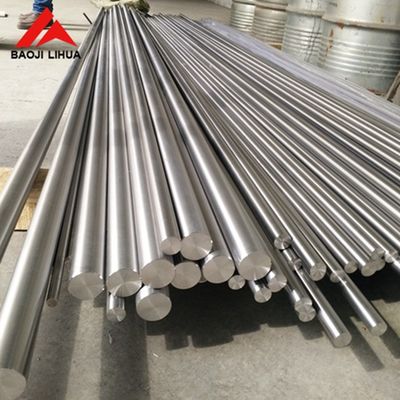

UNS R56400 Gr5 Titanium Bar 5mm-350mm Polished

This AMS 4928 Gr5 Ti-6Al-4V (UNS R56400) titanium bar is supplied in round or square shape with a polished, bright surface. With a diameter range of 5mm to 350mm and lengths of 500-3000mm, it is produced by hot or cold rolling, forging or annealing, and its high strength with low weight makes it a reliable choice for demanding engineering and biomedical parts.

Gr5 Titanium Bar

Technical Specifications

Product Name	Titanium rod / titanium bar
Standard	AMS 4928
Grade	Gr5 (Ti-6Al-4V) / UNS R56400
Diameter	5mm ~ 350mm
Length	500-3000mm or as customer's request
Surface	Polished, bright
Shape	Round bar, square bar
Technique	Hot or cold rolling, forging, annealed
Certificates	EN10204/3.1; third-party testing available (SGS, TUV, BV)

Physical & Mechanical Properties

Property	Value
Density	4.43 g/cc
Hardness, Brinell	334
Hardness, Knoop	363
Hardness, Rockwell C	36
Hardness, Vickers	349
Tensile Strength, Ultimate	950 MPa
Tensile Strength, Yield	880 MPa
Elongation at Break	14%

Applications & Titanium Advantages

This Gr5 titanium bar is used for blades, discs, rings, airframes, fasteners, components, vessels, cases, hubs, forgings and biomedical implants. Ti-6Al-4V offers an outstanding strength-to-weight ratio, good corrosion resistance and stable mechanical properties, so components stay reliable in demanding structural and medical service.

Quality, Customization & Inquiry

LHTi is certified to ISO 9001:2015 and IQNET, works with SGS, BV, LR'S and TUV inspection agencies, makes 100% inspection before shipment and issues EN10204/3.1 certificates. Logos and sizes can be customized and free samples are available. Please send your specification for a quotation.
