Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: LH-Ti10
Minimum Order Quantity: 1 Piece
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 20-30 working days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 2000-5000 pieces per month
Detail Information
Product Name: Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant Heat Exchanger Tube And Shell Heat Exchanger Assembly Parts: Tube Bundle, Shell, Dish Head, Heat Exchange Tube, Etc
Tube Material: Titanium Tube Plate Material: Titanium Steel Composite
Shell Side Material: Titanium/Stainless Steel Shell Material: Titanium/Stainless Steel
Sasteners Material: Titanium/Stainless Steel Advantages: Corrosion Resistant,Simple Structure And Low Cost
Dimension(L*W*H): Customized Applications: High Temperature And Pressure Corrode Fluids,seawater,saltwater,brine Water Etc.
Warranty: 1 Year System: Single /double/Triple System
High Light:

Gr2 Titanium Evaporator Condenser

,

Titanium Evaporator Condenser Gr1

,

Corrosion Resistant Titanium Evaporator Condenser


Product Description

 Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant Heat Exchanger tube and shell heat exchanger



With the maturity of the world titanium production and processing technology, as well as the advantages of titanium light weight, high strength, corrosion resistance and other advantages, titanium has been fully promoted to the civil field, especially in the chemical industry (mainly titanium chemical equipment). In the use of chemical equipment, titanium heat exchanger is the most widely used, the most widely used. Titanium heat exchangers are mainly used in chemical industry, but also widely used in other industries, such as metallurgy, electric power, shipbuilding, central heating, refrigeration and air conditioning, machinery, food, medicine and other fields. The petrochemical industry remains the largest market in the heat exchanger industry.





Working conditions:



1) Refrigerant side: R22, R134a, R407c, R410a, etc.



2) Water side: fresh water, natural water, drinking water, seawater, salt water, groundwater, etc.



Material:



1) Heat transfer tube: titanium



2) Housing: 316L/ titanium





Advantage:



1. Gr2 titanium tube can be used for seawater applications;



2. Strengthen the internal groove to ensure high heat transfer efficiency;



3. One to eight refrigeration loops are available;



4. cooling capacity from 2.5tr to 1000TR;



5. Specifications and performance can be customized according to need.



6. CE, ASME and BR1 certificates are optional;







Material

Gr2 Titanium

Heat exchanger area

according to working conditions

Working/Design temperature

according to the design optional

Pressure

according to the design optional

Application

oil, chemical, pharmacy, food, electricity, paper…







Common using heat exchange tubes size

Item

OD(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

WT(mm)

Form

1

10--15

0.5

0.6

0.8

1

1.25

1.5

2

2

2.5

3

3.5

4

4.5

Cold rolled or cold drawn seamless pipe

2

15-20

0.6

0.8

1

1.25

1.5

2

2

2.5











3

20-30

0.8

1

1.25

1.5

2

2

2.5













4

30-40

1.25

1.5

2

2

2.5



















40-50

1.5

2

2

2.5

3



















50-60

1.5

2

2

2.5

3

3.5

















60-80

2

2.5

3

3.5

4

















5

16

0.5

0.6

0.8

1



















Welded pipe

6

19

0.5

0.6

0.8

1

1.25

















7

25,27

0.5

0.6

0.8

1

1.25

1.5















8

31.32.33

0.8

1

1.25

1.5

2

















9

38

1.5

2

2.5





















10

50

2

2.5























11

63

2

2.5























12

6-10

0.5

0.6

0.8

1

1.25

















Welded (seamed) or rolled (seamless)

13

10-15

0.5

0.6

0.8

1

1.25

1.5















14

15-20

0.5

0.6

0.8

1

1.25

1.5















15

20-25

0.5

0.6

0.8

1

1.25

1.5















16

25-30

0.5

0.6

0.8

1

1.25

1.5

2

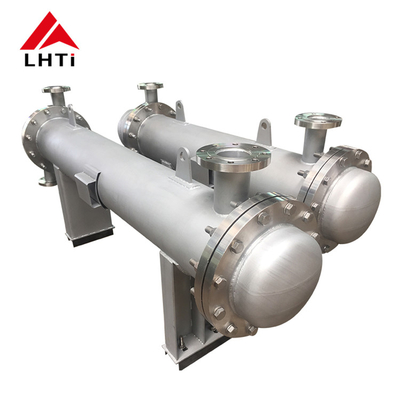

 Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant 0

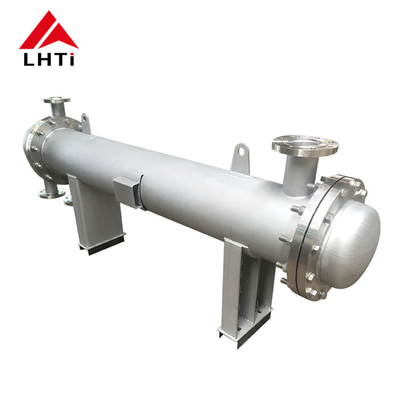

Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant 1





Detailed images:

 Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant 2 Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant 3Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant 4Gr1 Gr2 Titanium Evaporator Condenser Corrosion Resistant 5
