Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti10
Minimum Order Quantity: 5 pcs
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Detail Information
Product Name: Titanium Elbow Material: Gr1 Gr2 Gr7 Gr12 Titanium
Standard: ASTM/ASME B363 OD: 1/8" To 48"
Wall Thickness: Sch5s To Sch160 Processing: Push
Applications: Pipe Fitting Connetion Third Party Test: Available
High Light:

Gr12 90 Degree Titanium Elbow

,

ASME B363 Titanium Elbow

,

OD 1/8" Titanium Elbow


Product Description

ASTM/ASME B363 Gr1 Gr2 Gr7 Gr12 Titanium elbow 90 degree for pipe fittings



Titanium elbow is one of the commonly used titanium pipe fittings.Titanium pipe fittings has extremely high corrosion resistance in most media, especially in neutral, oxidizing and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys, stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment and marine atmosphere for several years, and the surface has not changed.

Titanium pipe fittings is also highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.





Product name: Titanium 90 degree elbow

OD: 1/2"-36"

Wall thickness: 1.0-18mm

Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363

Material grade: Titanium Grade 1 grade 2 grade 7 Grade 12

Type: Seamless ,welded

Surface: Pickled, polished,sand-blasting

Application: Pipe fittings







Tensile Strength(min)

Yeild Strength(min)

Elongation(%)



ksi

MPa

ksi

MPa



Grade  1

35

240

20

138

24

Grade2

50

345

40

275

20

Grade 7

50

345

40

275

20

Grade 12

70

483

50

345

18





























Titanium elbows quality inspections:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection



QQ截图20200806152931



 Detailed images:

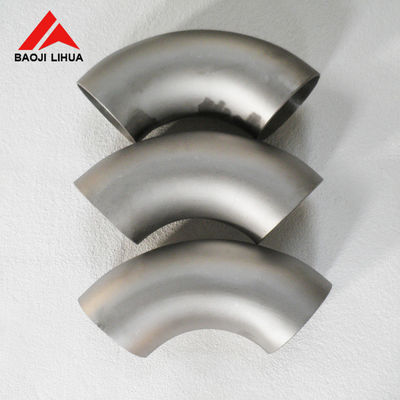

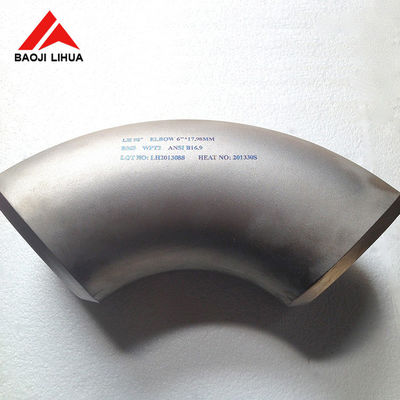

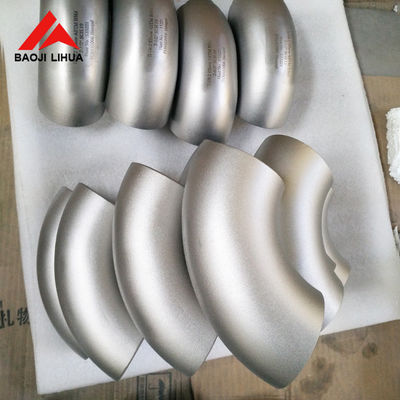

Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 1Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 2Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 3Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 4Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 5





Baoji Lihua Non-ferrous Metals Co.,Ltd found  in 2006, lies in Baoji city--"The Titanium Valley of China. We are specialized in manufacturing, reaseaching and marketing titanium. All our products are mainly exported to Europe, USA, Australia, Middle East and South East Asia. Besides, our products are manufactured either in accordance with the leading regulatory international and domestic standards, such as the ASME, ANSI, EN, DIN, BS, NF, JIS, AS, KS, GB, JB, HG, SH standards, or according to the drawings specified by purchasers. For the material, we mainly produce titanium and titanium alloy, nickel and nickel alloy.

 Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 6




Exhibitions and customer visits:

  Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 7





Welcome to contact and visit us in any time!

Gr12 90 Degree Titanium Elbow OD 1/8" ASME B363 Push Processing 8
