Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015,TUV,SGS
Model Number: LH-Ti10
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Price: US dollar $17.5/kg--US dollar $39.5/kg
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union etc.
Supply Ability: 10000 Kilograms per Month
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |
Color: |
Matal Gray |
Feature: |
Titanium Has Low Weight, Excellent High Strength, Excellent Corrosion Resistance. |
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |
Color: |
Matal Gray |
Feature: |
Titanium Has Low Weight, Excellent High Strength, Excellent Corrosion Resistance. |
Forged Titanium Round Cake Precision
High quality gr5 titanium disc CAD CAM Milling Dental Lab Material 98mm 98.5mm Diameter from China, China's leading titanium disk product, with strict quality control titanium raw material factories, producing high quality titanium raw material products.we have a series of rigorous forging process and operation manual, including the heating steps, heating time and heat preservation time.the forging technology could change the physical structure of titanium disc. Greatly improved the quality of titanium disc level.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

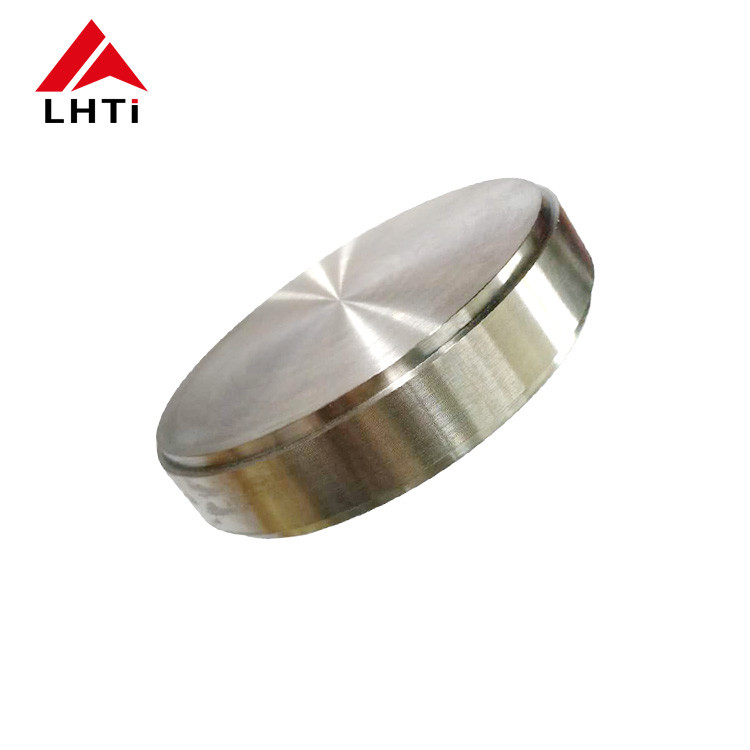

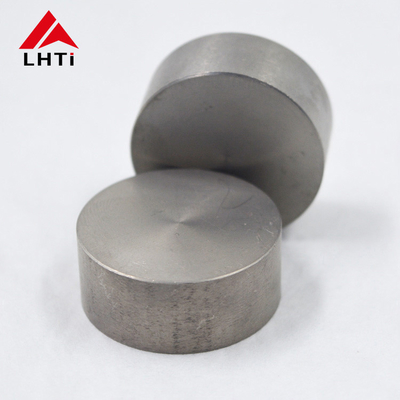

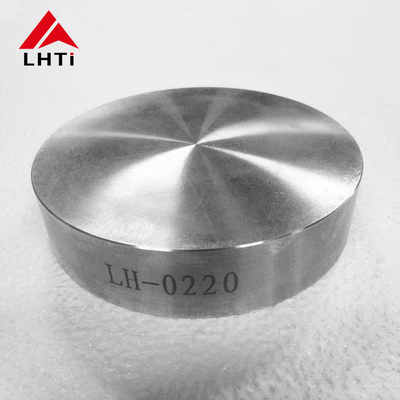

Product picture:
