Product Details
Place of Origin: China
Brand Name: LH-Ti
Certification: ISO9001:2015
Model Number: LHTB
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 15-35/PC
Packaging Details: Standard export packing
Delivery Time: If the goods are available, it is usually 3-5 days. If the goods are out of stock, then 15-20 days.
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Kilogram/Kilograms per Month
Technique: |
Forging |
Product Name: |
Titanium Disc |
Color: |
Metal Color |
Shape: |
Round Disc Shape |
Product Name: |
Titanium Disk |
Dimensions: |
Customers' Requirement |
Keyword: |
Gr5 Titanium Disks |
Size: |
According To Customer's Requirement |
Density: |
4.51g/cm3 |
Application: |
Industry |
Technique: |
Forging |
Product Name: |
Titanium Disc |
Color: |
Metal Color |
Shape: |
Round Disc Shape |
Product Name: |
Titanium Disk |
Dimensions: |
Customers' Requirement |
Keyword: |
Gr5 Titanium Disks |
Size: |
According To Customer's Requirement |
Density: |
4.51g/cm3 |
Application: |
Industry |
Custom Ti6Al-4V titanium disk
The specific strength (strength-to-weight ratio) of titanium and its alloys is very high in metal structural materials. When aircraft, missiles, and rockets fly at high speeds, their engines and surface temperatures are quite high. The comprehensive excellent properties of light weight and strong heat resistance can not only prolong the service life of the aircraft, but also reduce its weight when it is used to replace other metals in aircraft manufacturing, thereby greatly improving its flight performance.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

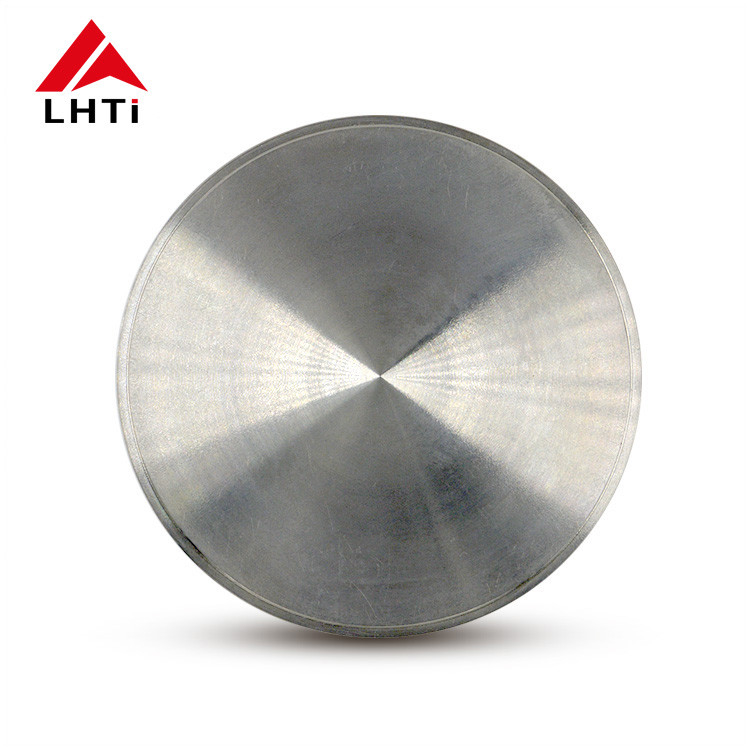

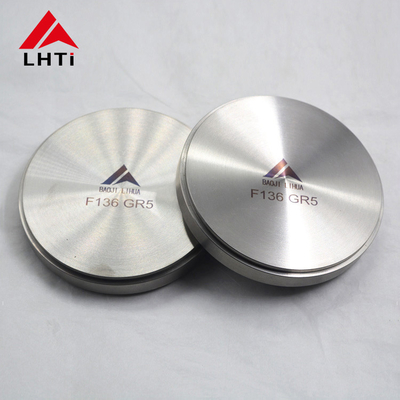

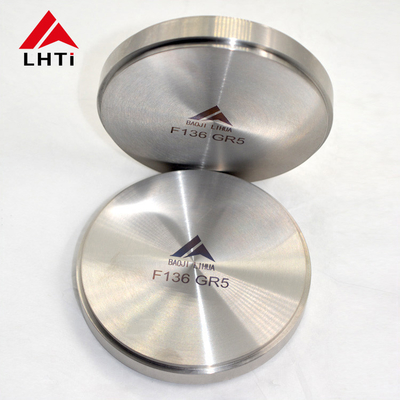

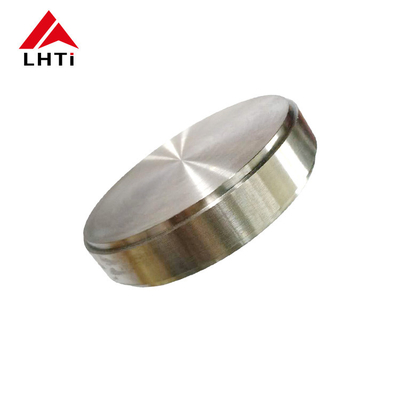

Product picture:
