Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-10
Payment & Shipping Terms
Minimum Order Quantity: 5 piece
Price: US dollar $22/pc--US dollar $80/pc
Packaging Details: Pearl cotton wrap or Sealed packaging，outside is standard Carton case or plywood case,or according your requirment to package
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 5000 piece per week
Product Name: |
Manufacturer High Quality Industry GR2 GR5 GR7 GR12 GR23 Titanium Round Disc |
Material: |
Titanium Alloy |
Diameter: |
150mm--1300mm Or As Your Requirment |
Thickness: |
35mm-550mm Or As Your Requirment |
Package: |
Plywood Case Or According Your Requirment |
Application: |
Industrial |
Product Name: |
Manufacturer High Quality Industry GR2 GR5 GR7 GR12 GR23 Titanium Round Disc |
Material: |
Titanium Alloy |
Diameter: |
150mm--1300mm Or As Your Requirment |
Thickness: |
35mm-550mm Or As Your Requirment |
Package: |
Plywood Case Or According Your Requirment |
Application: |
Industrial |

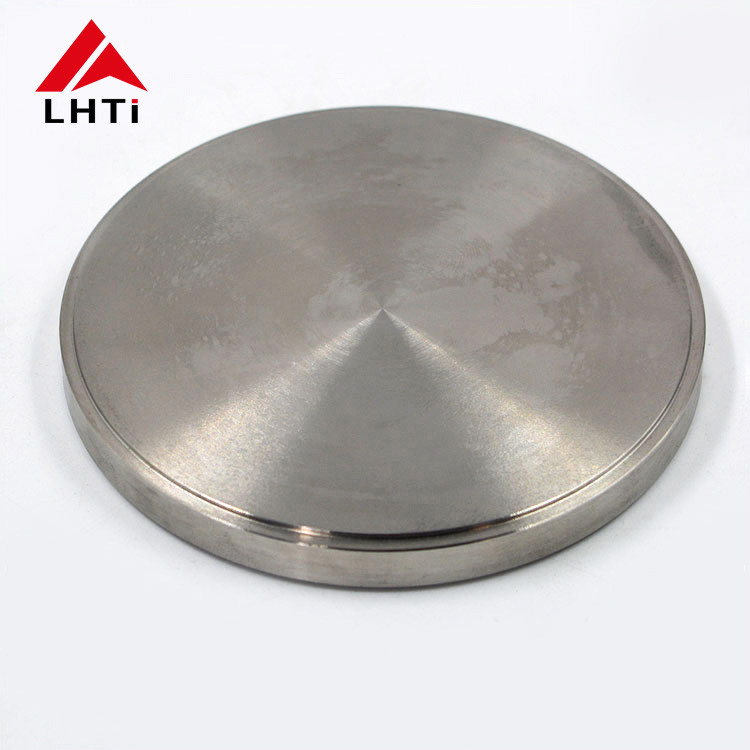

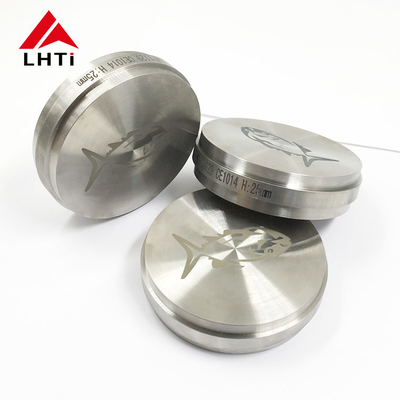

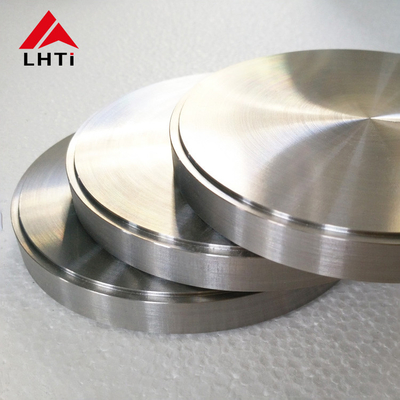

Titanium Disc Industrial Titanium Alloy Disc
At present, the annual output of Titanium Forged Discs processing materials in the world has reached more than 40,000 tons, and there are nearly 30 types of titanium forgings. The most widely used Titanium Forged Discs are Ti-6Al-4V (TC4), Ti-5Al-2.5Sn (TA7) and industrially pure titanium (TA1, TA2 and TA3). Titanium Forged Discs is mainly used to make aircraft engine compressor parts, followed by rockets, missiles and structural parts of high-speed aircraft. In the mid-1960s, titanium and its alloys were used to make electrodes in the electrolysis industry, condensers in power stations, heaters in petroleum refining and seawater desalination, and environmental pollution control devices.
| Name |
titanium disc / titanium block |
| Standard |
ASTM B348/ASTM B381 |
| Grade |
Commercially Pure Grade 1 Commercially Pure Grade 2 Commercially Pure Grade 5 Commercially Pure Grade 7 Commercially Pure Grade 12 |
| Diameter |
Titanium disc diameter :150mm--1300mm or as your requirment |
| Thickness | 35mm--550mm or as your requirment |
| Logo | accept make customer logo on disc |
| Technique | Forging ,Machining |
| Surface | acid surface or polishing, sand blasted surface |
| Shape | Round |
| Application | Industrial |
| Chemical composition % | |||||||||
| Grade | Ti | Al | V | Nb | Fe, max | C, max | N, max | H, max | O, max |
| Gr1 | Bal | / | / | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | |
| Gr2 | Bal | / | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | |
| Gr3 | Bal | / | / | 0.30 | 0.08 | 0.05 | 0.015 | 0.35 | |
| Gr4 | Bal | / | / | 0.50 | 0.08 | 0.05 | 0.015 | 0.40 | |
| Gr5 | Bal | 5.5~6.5 | 3.5~4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 | |
| Ti-6Al-7Nb | Bal | 5.5-6.5 | / | 6.5-7.5 | 0.25 | 0.08 | 0.08 | 0.009 | 0.20 |
Titanium Disc / Block
