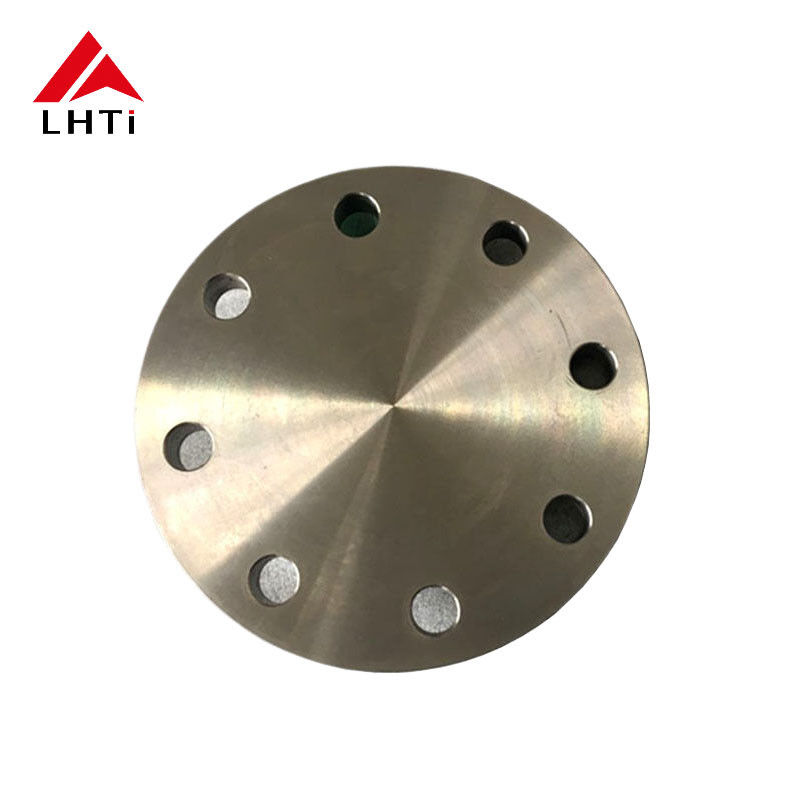

Class 150 Raised Face Titanium Blind Flange BLRF Flange with Ti Gr2 Gr5 Gr7 for Pipeline Applications

Name: Class 150 Raised Face Titanium Blind Flange BLRF Flange with Ti Gr2 Gr5 Gr7 for Pipeline Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Sealing Surface:

Dimension:

PN 25

Pressure:

Class 300

Pakage:

Wooden Cases

Press:

600#

Sample:

Avaliable

Standards:

GB/T 16598,ASME SB381

Flange Facing:

RF/FF/RTJ

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

200 Ton/Tons Per Month

Highlight:

Pipeline Applications Titanium Blind Flange

ASME B16.5 Titanium Blind Flange

Gr7 Titanium Blind Flange

Product Description

ASME B16.5 Class 150 Raised Face Blind Flange (BLRF) made from Titanium Grades Gr2, Gr5, and Gr7 is engineered for demanding pipeline applications across chemical processing, petrochemical, aerospace, and related industries. These titanium flanges deliver exceptional corrosion resistance, high strength, and reliable sealing performance in extreme operating conditions.

Key Features

Material Grades: Available in Titanium Gr2, Gr5 (Ti-6Al-4V), and Gr7 (Ti-0.2Pd) with specific advantages for different applications
Pressure Rating: Class 150 for medium-pressure pipeline systems with high stress resistance
Flange Type: Blind Flange (BLRF) for secure pipeline end sealing
Sealing Surface: Raised Face configuration for effective leak-proof connections

Material Advantages

Advantage	Details
Corrosion Resistance	Exceptional resistance to chemicals, acids, and seawater for extended service life in harsh environments
High Strength-to-Weight Ratio	Titanium Gr5 provides lightweight solutions with superior strength-to-weight ratio
Leak-Proof Sealing	Raised Face design ensures secure, leak-proof sealing under high pressure conditions
Temperature Resistance	Stable performance in high-temperature environments without degradation
Long Service Life	Durable titanium alloys reduce maintenance needs and provide cost-effective long-term operation

Material Specifications

Material Grade	Composition	Advantages
Ti Gr2	Pure Titanium (99.2% Ti)	Excellent corrosion resistance, good formability, cost-effective for general applications
Ti Gr5	Ti-6Al-4V (6% Aluminum, 4% Vanadium)	High strength, lightweight, corrosion-resistant, ideal for aerospace and high-performance applications
Ti Gr7	Ti-0.2Pd (0.2% Palladium)	Outstanding resistance to acids, chlorides, and reducing environments, perfect for chemical processing

Manufacturing Process

Material Selection: High-quality titanium billets selected based on required material grade
Forging: Titanium billets heated and forged into shape, followed by precision machining
Heat Treatment: Enhanced mechanical properties and corrosion resistance through controlled thermal processes
Surface Finish: Raised face machined to ensure perfect seal surface for leak-proof connections
Inspection & Testing: Rigorous dimensional checks and non-destructive testing including ultrasonic examination

Applications

Chemical Processing Plants: Handling aggressive chemicals and corrosive substances
Petrochemical Industry: High-temperature, high-pressure applications
Aerospace: Lightweight, high-strength flanges for critical aerospace systems
Marine & Offshore: Resilient to saltwater and corrosive marine elements
Power Generation: High strength and corrosion resistance for pressure and temperature extremes

Technical Specifications

Specification	Details
Standard	ASME B16.5
Pressure Rating	Class 150
Material Grades	Titanium Gr2, Gr5, Gr7
Flange Type	Raised Face Blind Flange (BLRF)
Temperature Resistance	High (up to 400°C/750°F)
Corrosion Resistance	Excellent (resistant to acids, alkalis, saltwater)
Manufacturing Process	Forging, Machining, Heat Treatment

Summary

ASME B16.5 Class 150 Raised Face BLRF Titanium Blind Flanges in Gr2, Gr5, and Gr7 grades provide optimal performance for professional pipeline applications requiring high-performance materials. Whether dealing with aggressive chemicals, high temperatures, or high-pressure systems, these titanium flanges offer the perfect combination of strength, durability, and corrosion resistance. Precision manufacturing combined with titanium's excellent material properties ensures long-term reliability and safety for your pipeline systems.
