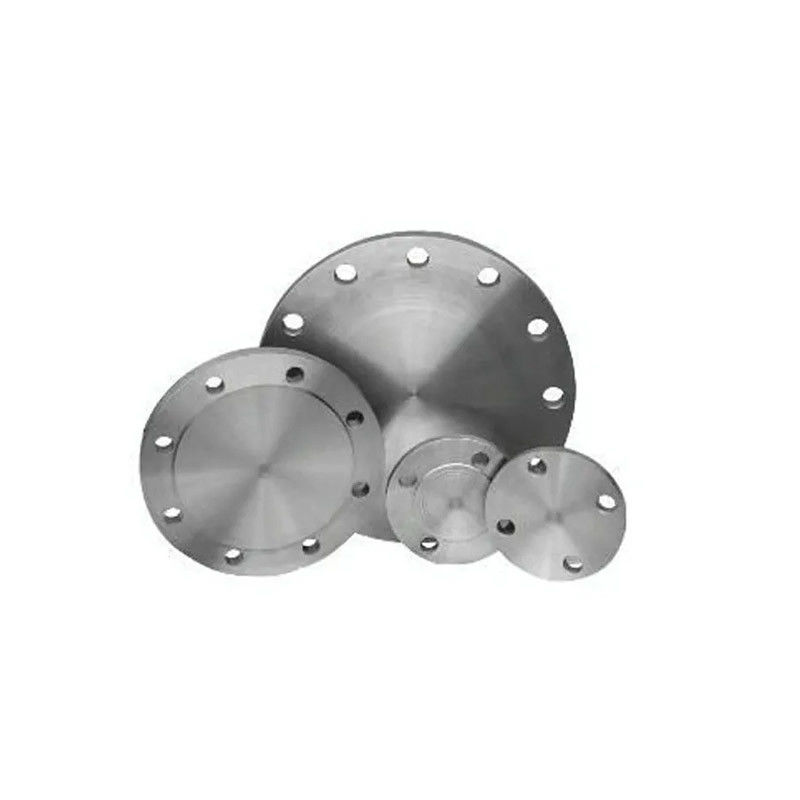

Gr2 Gr5 Titanium Blind Flange – ASME B16.5 Class 300 Raised Face for Corrosion Resistant Pipelines

Name: Gr2 Gr5 Titanium Blind Flange – ASME B16.5 Class 300 Raised Face for Corrosion Resistant Pipelines
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Weld Neck Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Weld Neck Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Qc Documents:

Material And Dimension Report As Normal

Material:

Titanium

Dimension:

DN15--DN300

Bolt Size:

1/4

Class:

#150

Sealing Surface:

Pressure:

150#-2500#

Bolt Holes:

Color:

Primary

Package:

Wooden Case, Pallet, Etc.

Diameter:

Custom Made

Connection Type:

Weld

Technique:

Forged And CNC Machined

Usage:

Chemical Flange

Pakage:

Wooden Cases

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

500 Ton/Tons Per Month

Highlight:

ASME B16.5 Titanium Blind Flange

Class 300 Titanium Blind Flange

Pipeline Services Titanium Blind Flange

Product Description

ASME B16.5 Titanium Blind Flanges – Class 300 Raised Face

The ASME B16.5 Titanium Blind Flange (Ti Gr2, Ti Gr5) Class 300 Raised Face is a critical component designed for industries requiring exceptional corrosion resistance and mechanical strength. Manufactured in compliance with ASME B16.5 standards, these flanges deliver reliable sealing performance and secure pipeline closures in demanding operational environments.

Titanium Material Overview

Titanium Grade 2 (Ti Gr2)

Material Properties: Commercially pure titanium offering excellent corrosion resistance in marine and chemical environments with moderate strength and superior weldability
Applications: Chemical processing, desalination systems, and marine applications where corrosion resistance is paramount
Advantages: Exceptional resistance to oxidation, seawater, and acidic environments

Titanium Grade 5 (Ti Gr5)

Material Properties: Titanium alloy composition (90% titanium, 6% aluminum, 4% vanadium) providing enhanced mechanical performance without compromising corrosion resistance
Applications: Aerospace engineering, high-performance systems requiring both strength and corrosion resistance
Advantages: Superior strength-to-weight ratio, excellent fatigue resistance, and high temperature tolerance

Key Performance Benefits

Superior Corrosion Resistance: Immune to rust and corrosion in seawater, acidic solutions, and chemically aggressive media
Lightweight Construction: Reduced weight without compromising structural integrity, ideal for aerospace and high-performance applications
High-Temperature Performance: Ti Gr2 withstands temperatures up to 450°F (232°C), Ti Gr5 up to 600°F (316°C)
Exceptional Fatigue Resistance: Reliable performance under cyclical pressure conditions and extended service life
Enhanced Durability: Reduced maintenance requirements and longer component lifespan

Industrial Applications

Chemical Processing: Safe handling of chemicals, acids, and aggressive fluids with leak-resistant performance
Marine and Offshore: Long-lasting sealing solutions in seawater environments where standard materials degrade rapidly
Aerospace: Lightweight yet strong components for aircraft and rocket systems
Desalination Plants: Enduring high pressure and corrosive seawater conditions in water processing facilities
Power Generation: Extended service life in power plants handling high-temperature fluids and chemicals

Technical Specifications

Standard	ASME B16.5
Flange Type	Blind Flange
Material	Titanium Grade 2 (Ti Gr2) / Titanium Grade 5 (Ti Gr5)
Pressure Rating	Class 300
Face Type	Raised Face
Temperature Range	Up to 450°F (232°C) for Ti Gr2, Up to 600°F (316°C) for Ti Gr5
Corrosion Resistance	Excellent resistance to seawater, acidic solutions, and aggressive environments
Weldability	Good weldability (especially Ti Gr2)
Strength	Ti Gr2 – Moderate strength, Ti Gr5 – High strength
Alloy Composition (Ti Gr5)	90% Titanium, 6% Aluminum, 4% Vanadium

Enhanced Safety and Durability Features

Non-Combustible: Inherent fire resistance for enhanced safety in industrial and offshore applications
High Impact Resistance: Durable performance under mechanical stress and vibration in high-pressure systems
Non-Toxic Material: Biocompatible properties suitable for food processing and pharmaceutical industries

The ASME B16.5 Titanium Blind Flange (Ti Gr2, Ti Gr5) Class 300 Raised Face delivers superior performance through exceptional corrosion resistance, high strength, and long-term durability. These flanges provide reliable sealing and structural integrity in extreme conditions, making them an optimal choice for critical applications where long-term reliability is essential.
