EN1092-01 Gr1 Gr2 Gr5 Titanium Plate Flange Flat Flange PN 10 For Industrial Piping in Corrosive Environments

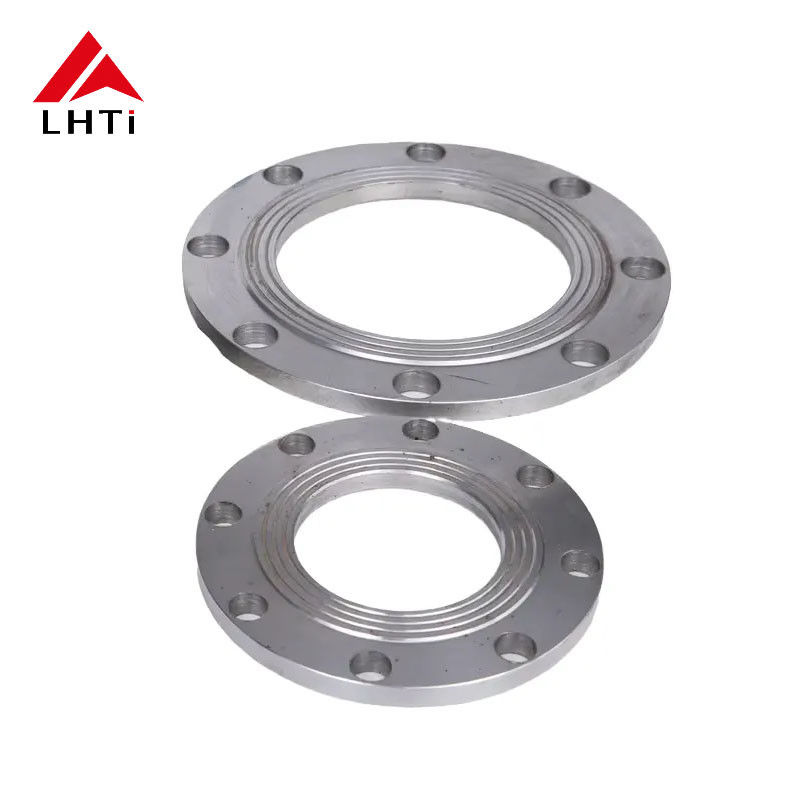

EN 1092-1 Gr5, Gr7 Titanium Plate Flange Raised Face PN 5 for Industrial Pipelines

Introduction:

In industrial pipeline applications, components must perform under extreme conditions while maintaining durability and resistance to corrosion. The EN 1092-1 Gr5, Gr7 Titanium Plate Flange Raised Face PN 5 is specifically designed for such applications, providing a reliable solution for industries where corrosion resistance, strength, and longevity are crucial. These flanges are especially beneficial in chemical processing, offshore systems, and power generation industries, where exposure to harsh environments and fluctuating pressures is a constant.

This article will examine the characteristics, materials, and applications of these flanges in detail, highlighting the Titanium Gr5 and Titanium Gr7 alloys, their unique properties, and the significance of selecting the correct flange for various industrial pipeline systems.

What Does EN 1092-1 Represent?

EN 1092-1 is a European standard outlining the specifications for flanges used in pipeline systems. It encompasses various flange types, such as plate, weld neck, and slip-on flanges, and provides detailed dimensions, pressure ratings, and other design characteristics to ensure that the components meet the needs of different applications.

In this context, the Plate Flange Raised Face PN 5 is designed to handle moderate pressures (5 bar or approximately 72.5 psi) and features a raised face, which is essential for ensuring a strong seal between connected components, making it ideal for systems that require precise sealing and pressure control.

Titanium Grades Gr5 and Gr7

The Gr5 and Gr7 titanium alloys are two of the most commonly used grades in demanding applications, offering an ideal balance of strength, corrosion resistance, and lightweight properties. These alloys ensure that Titanium Flanges are able to perform well even under harsh and aggressive conditions.

Titanium Gr5 (Ti-6Al-4V):

• Composition: Made of 90% titanium, 6% aluminum, and 4% vanadium, this alloy is one of the most widely used titanium grades, especially in industries requiring high-strength materials.
• Strength: Known for its superior tensile strength and high strength-to-weight ratio, Gr5 titanium is suitable for applications where structural integrity under high stress is a must.
• Corrosion Resistance: This grade offers excellent protection against corrosive elements, making it suitable for use in chemical processing or marine applications.
• Common Uses: Primarily utilized in aerospace, marine, and offshore oil industries, Gr5 titanium is used for components that need to withstand constant exposure to moisture and chemicals.

Titanium Gr7 (Ti-0.15Pd):

• Composition: Titanium Gr7 is an alloy of titanium with palladium, specifically 0.12-0.25% palladium, which enhances its corrosion resistance in aggressive chemical environments.
• Corrosion Resistance: It excels in environments with high acidity, such as hydrochloric acid or sulfuric acid, and provides excellent resistance to pitting and crevice corrosion.
• Applications: Ideal for use in chemical reactors, seawater desalination plants, and chemical pipelines, where the system is exposed to acidic or chloride-rich conditions.

Features of EN 1092-1 Gr5, Gr7 Titanium Plate Flange Raised Face PN 5

1. Raised Face Design:

   • The raised face design involves a protruding sealing surface around the flange's edge, which enhances the ability to create a tight seal between the flange and the gasket. This is important for ensuring that the flange joint is leak-free and secure under varying operational pressures.

2. Pressure Rating PN 5:

   • With a PN 5 rating, these flanges are designed to withstand 5 bar (72.5 psi) of pressure. This makes them suitable for applications with moderate pressure levels, particularly in systems that don’t require the extremely high-pressure resistance of other flange types.

3. Titanium Benefits:

   • Corrosion Resistance: Titanium is known for its immunity to corrosion in many environments, particularly in chlorides, acids, and saline environments. This makes it an excellent choice for industries such as offshore, chemical processing, and marine where exposure to corrosive agents is frequent.
   • Strength and Durability: The inherent strength and toughness of titanium alloys make these flanges ideal for systems that must endure high stresses and heavy-duty use.

4. Size and Customization:

   • EN 1092-1 flanges are available in multiple sizes and can be custom-manufactured to meet the precise needs of a specific application, ensuring that fit and functionality are always optimized for each pipeline system.

Where Are EN 1092-1 Gr5, Gr7 Titanium Plate Flanges Used?

1. Chemical Plants:

• Titanium flanges are often used in chemical processing systems due to their ability to resist the corrosion caused by chemicals such as hydrochloric acid and sulfuric acid. The raised face design provides a reliable seal, minimizing the risk of leaks in high-pressure applications.

2. Offshore Oil and Gas:

• In the offshore industry, flanges made from Titanium Gr5 and Gr7 are widely used due to their ability to resist both corrosion from seawater and mechanical stress. They are common in piping systems and water treatment systems on oil rigs and offshore platforms.

3. Nuclear and Power Generation:

• Titanium flanges are employed in critical parts of power plants, where high temperatures and harsh chemicals are common. The raised face flange ensures a secure seal in systems such as cooling towers and feedwater systems that are subject to high pressures.

4. Desalination and Water Treatment:

• In desalination plants, where the primary goal is to treat seawater and convert it into freshwater, the corrosion resistance of Titanium Gr7 makes it a valuable material. It ensures the durability of piping and valves in saltwater environments.

5. Aerospace:

• Titanium Gr5 is often used in aircraft components, particularly those that are subjected to extreme conditions such as fuel systems and exhaust systems. The material's lightweight nature and strength make it a preferred option for reducing weight while maintaining performance.

Advantages of Titanium Plate Flanges

1. Exceptional Corrosion Resistance:

   • Titanium flanges offer superior protection against corrosion in harsh environments, including seawater, acids, and chlorides. This is especially important for long-term reliability and cost savings in maintenance.

2. Increased Strength and Durability:

   • Gr5 and Gr7 titanium alloys provide both high tensile strength and toughness, ensuring that the flanges remain intact under pressure and stress for prolonged periods.

3. Lightweight but Strong:

   • Compared to other high-strength materials like steel, titanium is significantly lighter, making it easier to handle and install in complex systems, such as those in offshore or aerospace applications.

4. Sealing Performance:

   • The raised face design ensures a better seal by offering a more reliable interface for gaskets, which improves the overall integrity of the pipeline system.

5. Long-Term Performance:

   • Titanium flanges typically last longer than many other materials, reducing the need for frequent replacements and minimizing maintenance costs over the lifetime of the system.

Conclusion

The EN 1092-1 Gr5, Gr7 Titanium Plate Flange Raised Face PN 5 offers exceptional strength, corrosion resistance, and sealing performance for industrial pipeline systems. Whether used in chemical plants, offshore oil rigs, power generation, or desalination systems, these flanges deliver reliable performance in harsh environments. By choosing titanium alloys, industries benefit from reduced maintenance, increased reliability, and cost savings over the long term.
