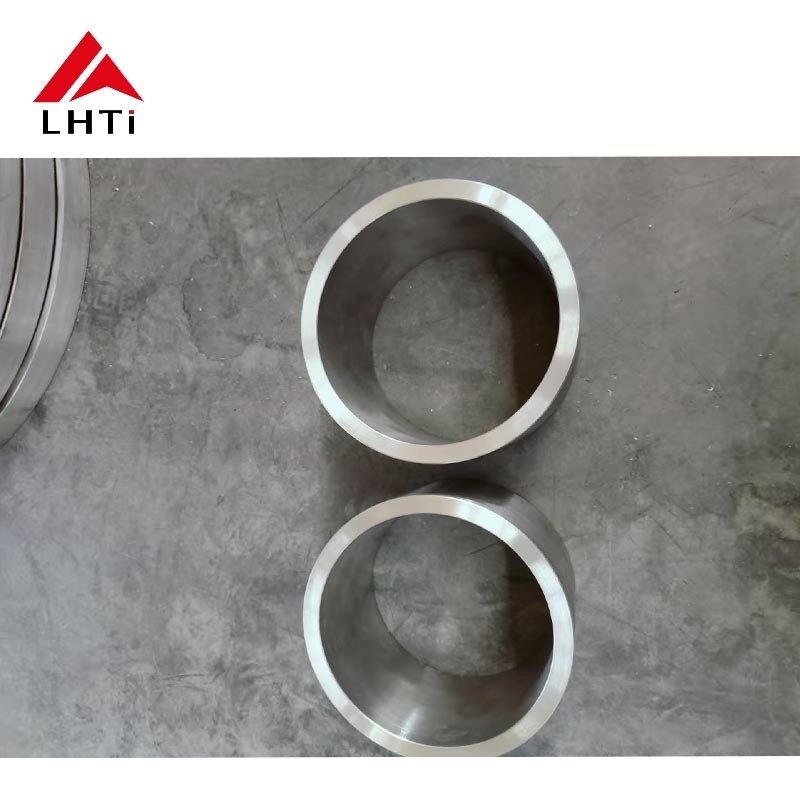

Ti Gr7 ASTMB338 Pure Titanium Seamless Tube For Aggressive Chemical Industry Uses

Ti Gr7 ASTMB338 Pure Titanium Tube Titanium Seamless Tube For Aggressive Chemical Industry Uses

Titanium and its alloys have become indispensable materials in various industries, offering a combination of exceptional strength, lightweight properties, and outstanding corrosion resistance. When used in the form of titanium tubes and pipes, they offer unique advantages for a range of industrial applications that require durability and resistance to harsh environments. This article will discuss the key features and uses of pure titanium tubes, titanium pipes, and titanium alloy tubes under ASTM B338 standards, particularly grades Gr5 and Gr7, and explore how they meet the demands of diverse industries.

ASTM B338 Grade 7 refers to a specific grade of Titanium (Ti-0.15Pd) alloy that is commonly used in applications that require superior corrosion resistance and high strength. Grade 7 titanium is a pure titanium alloy with palladium (0.12% to 0.25%) added, which significantly enhances its resistance to aggressive chemicals and harsh environments.

This makes Grade 7 Titanium Seamless Tubing especially suitable for use in the chemical industry, particularly in applications where corrosion resistance is a primary concern. Here's a more detailed breakdown of why Grade 7 titanium tubes are ideal for these industries:

Key Features of ASTM B338 Grade 7 Titanium Seamless Tube:

High Corrosion Resistance:

• Palladium addition enhances the corrosion resistance of Grade 7 titanium, especially in oxidizing and reducing acids, chlorine, and chlorides.
• Ideal for environments where chlorine gas, sulfuric acid, or other aggressive chemicals are present.

Seamless Tubing:

• Seamless tubes are created using processes like extrusion or pilgering. These tubes have no welded seams, resulting in superior strength and uniformity.
• Seamless tubes have higher integrity and are less prone to leaks under pressure, making them ideal for use in chemical reactors, heat exchangers, or any equipment where safety and reliability are critical.

Excellent Mechanical Properties:

• Tensile strength: Typically around 50-70 ksi (345-485 MPa).
• Yield strength: Around 40-60 ksi (275-415 MPa).
• Elongation: ~20% minimum.
• These properties ensure that the tubing can handle both high pressure and mechanical stress in demanding chemical processes.

Lightweight but Strong:

• Titanium is renowned for its lightweight nature while maintaining exceptional strength—ideal for applications where minimizing weight is important without sacrificing mechanical performance.

Biocompatibility:

• Titanium is biocompatible, meaning it is non-toxic and can be used in medical and pharmaceutical applications in addition to industrial uses.

Temperature and Pressure Resistance:

• Titanium has a high melting point (about 1,668°C or 3,034°F) and maintains its strength at elevated temperatures. This makes it useful in high-temperature chemical environments.
• It can perform under both high temperature and high pressure without losing its structural integrity.

Applications of ASTM B338 Grade 7 Titanium Seamless Tube in the Chemical Industry:

Chemical Processing Equipment:

• Heat exchangers, cooling coils, reactors, and piping systems for handling aggressive chemicals, such as hydrofluoric acid or sulfuric acid.
• Titanium tubes prevent corrosion in the highly acidic environments of chemical plants and refineries.

Marine Chemical Environments:

• Desalination plants and marine chemical reactors where the titanium tubes are exposed to harsh seawater and corrosive substances.
• Seawater desalination systems rely on titanium’s resistance to saltwater corrosion.

Electrochemical Applications:

• Electrochemical reactors, used in the production of chlorine, hydrogen, and other chemicals, require materials like titanium for its non-reactivity and corrosion resistance.

Pharmaceutical and Food Processing:

• Grade 7 titanium tubes are widely used in systems where purity is crucial, such as in pharmaceutical mixing tanks and food processing equipment, as titanium prevents contamination of the product.

Industrial Heat Transfer:

• Titanium tubes are used in heat exchangers and condensers, where they are exposed to aggressive chemicals and temperatures that would degrade other materials.

Power Generation:

• In industries like nuclear power plants, titanium is used for cooling systems and heat exchangers due to its resistance to high temperatures and aggressive cooling liquids.

Benefits of Using Titanium Grade 7 in Aggressive Chemical Environments:

1. Durability: Titanium is inherently non-corrosive in aggressive chemicals, reducing the need for frequent maintenance or replacement.
2. Long Service Life: Its strength and resistance to corrosion translate into a longer service life for equipment.
3. Lower Maintenance Costs: With Grade 7 titanium, companies can expect reduced downtime and lower repair costs due to the material’s high resistance to wear, corrosion, and mechanical stress.
4. Increased Safety: The high integrity of seamless tubing and the material’s strength ensure that titanium can withstand high-pressure applications, preventing accidents and leaks.

Titanium Tube Sizes:
