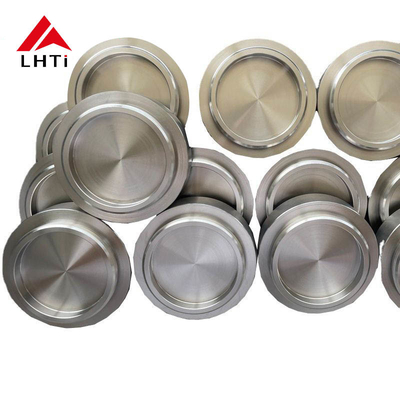

Titanium Sputtering Ti Grade 1 Grade 2 Silver Sputtering Target Titanium Target Sputtering To Coating

Titanium Sputtering Ti Grade 1 Grade 2 Silver Sputtering Target Titanium Target Sputtering to Coating

Sputtering is a widely used deposition technique for creating thin films and coatings on various substrates. In this process, material from a sputtering target (usually in the form of a metal or alloy) is bombarded with high-energy ions in a vacuum, causing atoms to be ejected and deposit onto a surface. This results in the formation of a thin, uniform coating. For different applications, specific materials like Titanium Grade 2, Titanium Grade 5, and Silver are often used as sputtering targets due to their unique properties.

Below, I will detail the properties, uses, and benefits of these sputtering targets in coating applications.

Titanium Sputtering Targets: Grade 1 vs. Grade 2

Titanium is a highly versatile metal known for its strength, corrosion resistance, and biocompatibility, making it suitable for a wide range of applications, from aerospace to medical devices.

Titanium Grade 1 (Ti Gr1) Sputtering Target

• Composition: Titanium Grade 1 is commercially pure titanium (99.5% titanium). It has the lowest strength of all titanium grades but also the highest formability and corrosion resistance.
• Key Properties:
  • Excellent Corrosion Resistance: Grade 1 titanium has superior resistance to corrosion in a variety of environments, particularly in chloride-rich solutions (such as seawater).
  • High Ductility: It has excellent workability and can be easily processed into thin films for deposition.
  • Good Biocompatibility: It’s non-toxic and biocompatible, which makes it ideal for medical applications.

Titanium Grade 2 (Ti Gr2) Sputtering Target

• Composition: Grade 2 titanium is the most widely used of the commercially pure titanium grades (99.2% titanium) and contains small amounts of iron and oxygen.
• Key Properties:
  • Higher Strength than Grade 1: While still a commercially pure titanium, Grade 2 offers a balance of strength and ductility.
  • Excellent Corrosion Resistance: Similar to Grade 1, Ti Grade 2 resists corrosion in most environments, particularly in saltwater and acidic conditions.
  • Biocompatibility: Ti Gr2 is widely used in medical implants, as it is highly biocompatible.

Titanium Sputtering Target Applications:

• Medical Coatings: Both Grade 1 and Grade 2 titanium are commonly used to coat medical devices, such as orthopedic implants, dental implants, and surgical instruments. These applications benefit from titanium’s biocompatibility and corrosion resistance.
• Aerospace and Automotive Coatings: Titanium sputtering targets are often used in aerospace for coating turbine blades, engine components, and aircraft parts due to their high strength-to-weight ratio and resistance to oxidation and wear.
• Decorative and Functional Coatings: Titanium is frequently used in decorative coatings for consumer electronics, jewelry, and luxury items because of its shiny, lustrous finish, and resistance to corrosion.

Silver Sputtering Target

Silver is a metal that offers exceptional electrical and thermal conductivity, along with excellent reflectivity and corrosion resistance. These properties make it highly suitable for a variety of sputtering applications.

Silver Sputtering Target

• Composition: Pure silver (99.9% or greater).
• Key Properties:
  • Electrical and Thermal Conductivity: Silver has the highest electrical conductivity of any metal and is widely used in electronics for applications requiring efficient electrical and thermal transfer.
  • Reflectivity: Silver has excellent reflectivity in the visible and infrared spectrum, making it ideal for optical coatings.
  • Corrosion Resistance: While silver can tarnish in the presence of sulfur, it is highly resistant to corrosion in most environments.
  • Antimicrobial Properties: Silver is known for its antimicrobial properties, making it useful in medical applications.

Silver Sputtering Target Applications:

• Electronics Coatings: Silver is widely used in the electronics industry to create conductive thin films for printed circuits, solar cells, and sensors.
• Optical Coatings: Due to its high reflectivity, silver is used in optical devices such as mirrors, lenses, and light-reflective coatings for instruments like telescopes and camera lenses.
• Medical Coatings: Silver sputtering targets are employed in antimicrobial coatings for medical devices, such as surgical instruments, hospital equipment, and wound dressings.
• Decorative Coatings: Silver is often used for decorative coatings on jewelry, luxury items, and consumer products due to its shiny appearance.

Applications of Titanium and Silver Sputtering for Coatings

The combination of Titanium (Grades 1 and 2) and Silver as sputtering targets allows for the creation of high-performance coatings across various industries. Here’s a breakdown of the coating applications:

Medical Coatings:

• Titanium (Grade 1 and Grade 2): Titanium coatings are widely used in the biomedical field for implants like knee and hip prostheses, spinal implants, and dental implants. The material's high biocompatibility and corrosion resistance make it ideal for such applications.
• Silver: Silver coatings are also used for their antimicrobial properties, helping to prevent bacterial growth on medical devices, surgical instruments, and wound care products.

Electronics Coatings:

• Silver: Silver sputtering targets are often used for thin-film deposition on PCBs, solar panels, sensors, and other electronic components that require high conductivity and thermal efficiency.
• Titanium: Titanium coatings are used for capacitors, semiconductors, and conductive layers in electronics, offering durability and corrosion resistance.

Optical Coatings:

• Silver: The reflectivity of silver makes it an excellent choice for optical coatings, such as in mirrors and lenses for telescope systems, camera lenses, and light reflectors.
• Titanium: Titanium coatings, particularly Titanium Nitride (TiN), are used in optical applications requiring high resistance to wear and corrosion.

Decorative Coatings:

• Titanium: Titanium’s ability to form vibrant colors on surfaces through anodizing makes it ideal for decorative coatings on jewelry, consumer electronics, and luxury items.
• Silver: Silver is often used in decorative applications for its shiny appearance and the luster it imparts on consumer products.

Coating Applications Using Sputtered Titanium and Silver

1. Medical Coatings:

   • Titanium (Grade 2 & Grade 5) coatings are commonly used in orthopedic implants (e.g., hip implants, knee implants), dental implants, and surgical instruments because of their biocompatibility, corrosion resistance, and mechanical strength.
   • Silver coatings can be applied to medical instruments and devices to take advantage of silver’s antimicrobial properties, ensuring sterility and reducing infection risk.

2. Aerospace Coatings:

   • Titanium Gr5 sputtering targets are used for aerospace coatings on components such as aircraft turbine blades and engine parts to provide high strength and resistance to wear and corrosion under extreme conditions.
   • Silver coatings are also used in satellite mirrors, solar panels, and communication devices due to silver’s reflectivity and electrical conductivity.

3. Electronics Coatings:

   • Silver coatings are used extensively in the electronics industry for conductive thin films, including the production of sensors, printed circuit boards (PCBs), and solar cells.
   • Titanium coatings are used in capacitors and semi-conductor components, where their durability and corrosion resistance are critical.

4. Optical Coatings:

   • Silver coatings are ideal for reflective mirrors, optical sensors, and lenses because of silver's ability to reflect light across a wide range of wavelengths.

Specific Medical Applications for Titanium Aluminum Alloy Coatings

1. Orthopedic Implants:

   • Titanium-aluminum alloys are used for hip and knee replacements, spinal implants, and bone screws due to their strength, lightness, and corrosion resistance. Sputtering these alloys onto implant surfaces creates thin, biocompatible coatings that can resist wear and corrosion over long periods of use.

2. Dental Implants:

   • Titanium dental implants are coated with thin films made from titanium-aluminum alloys to improve bone integration and reduce the risk of rejection. These coatings also enhance the durability of dental implants in challenging environments (e.g., exposure to saliva, acids, and occlusal forces).

3. Surgical Tools:

   • Surgical tools that are coated with titanium-aluminum alloy thin films benefit from enhanced wear resistance, corrosion resistance, and biocompatibility. Coatings on tools such as scalpels, forceps, and scissors help them maintain their performance and integrity over time, especially in sterilization cycles.

4. Medical Device Coatings:

   • Devices like stents, catheters, and vascular grafts can be coated with titanium-aluminum alloys to improve their biocompatibility and corrosion resistance in the body. Such coatings help the devices integrate better with body tissues and reduce the risk of complications or rejection.

5. Prosthetic Devices:

   • Titanium-aluminum alloy coatings are also applied to prosthetic limbs and joints to improve their durability and comfort. The alloy coating improves the strength, flexibility, and longevity of prosthetics, making them better suited for long-term use.

High-Purity Sputtering Targets for Medical Coatings

High-purity sputtering targets of titanium and titanium-aluminum alloys (such as Ti Gr2, Ti Gr5, and Ti Gr7) are essential for ensuring that the thin films deposited on medical devices meet stringent standards for purity, uniformity, and performance. In the medical industry, where the integrity of coatings is paramount for patient safety and device longevity, high-purity sputtering guarantees that the final coating will:

• Enhance biocompatibility by avoiding impurities that could cause rejection or irritation.
• Maintain mechanical properties such as strength and ductility to ensure the device functions properly under physiological conditions.
• Withstand long-term exposure to bodily fluids without degrading or compromising the device's integrity.

Titanium-aluminum alloy targets are specialized materials used in sputtering processes to deposit thin films with specific properties. These targets are made from a combination of titanium (Ti) and aluminum (Al), and they offer unique characteristics that make them valuable in various industrial applications.

Characteristics of Titanium Aluminum Alloy Targets:

1. High Purity:

   • Titanium-aluminum alloy targets are produced with high purity, typically 99.5% or higher. This high purity ensures that the thin films deposited during sputtering are free from impurities, providing excellent performance and uniformity in applications that require precise coatings.

2. Fine Particle Size:

   • The alloy targets are manufactured with a fine particle size, which enhances the efficiency of the sputtering process. Smaller particle sizes enable a more uniform deposition of the film on the substrate, improving the quality of the coating.

3. Easy Sintering:

   • Titanium-aluminum alloys exhibit good sintering properties, which means they can be easily processed into dense and solid forms. This is crucial for ensuring that the target is durable, reliable, and capable of withstanding the stresses of the sputtering process without degradation.

4. Good Formability:

   • Titanium-aluminum alloy targets are known for their excellent formability. This characteristic allows them to be manufactured into various shapes and sizes, ensuring compatibility with different sputtering systems and enhancing their versatility in a wide range of applications.

Applications of Titanium Aluminum Alloy Targets:

Titanium-aluminum alloy sputter targets are used in various industries due to their distinct properties, such as wear resistance, corrosion resistance, and the ability to form strong coatings. Some key applications include:

1. Cutting Tools:

   • Titanium-aluminum alloy coatings are commonly used in cutting tools, where they improve wear resistance, corrosion resistance, and thermal stability. These coatings extend the lifespan of tools like drills, end mills, and lathe tools, making them more efficient in high-speed machining.

2. Cemented Carbide Drill Bits and Tools:

   • Cemented carbide drill bits and tools benefit from the titanium-aluminum alloy coating as it significantly enhances the tool's performance in abrasive and high-temperature conditions. The coating also improves the tools' cutting ability and resilience when drilling or machining tough materials.

3. Cemented Carbide Ceramic Tools:

   • These coatings are applied to ceramic tools made from cemented carbide, enhancing their abrasion resistance, toughness, and strength. This is particularly useful in applications that require tools to handle extremely hard materials, such as in aerospace or automotive industries.

4. Cemented Carbide Molds:

   • Titanium-aluminum alloy coatings are also used in molds made from cemented carbide. These molds, used in the metal casting process, benefit from the enhanced wear resistance and corrosion resistance provided by the titanium-aluminum coatings, which contribute to longer service life and improved product quality.

5. Powder Metallurgy Parts of Superhard Materials:

   • Titanium-aluminum alloys are essential in producing superhard materials through powder metallurgy. The coatings improve the hardness, thermal stability, and corrosion resistance of the final products, making them suitable for applications in industries such as mining, drilling, and cutting tools.

6. Metal Composite Ceramics:

   • These alloys are often used as additives in the manufacturing of metal composite ceramics. The combination of metal and ceramic properties provides materials with enhanced strength, heat resistance, and electrical conductivity, making them suitable for demanding applications in electronics and mechanical systems.

7. Additives for High-Temperature Resistant Alloys:

   • Titanium-aluminum alloys serve as key additives in the production of high-temperature resistant alloys. These alloys are commonly used in applications such as jet engines, gas turbines, and heat exchangers, where thermal stability and strength are critical. The addition of titanium and aluminum improves the overall temperature resistance and structural integrity of the alloy.

Titanium Grades:

Conclusion:

Titanium alloy sputtering targets, including TiAl alloys, are versatile materials widely used for coating applications in industries ranging from aerospace to electronics and biomedical. These materials provide exceptional properties such as strength, corrosion resistance, biocompatibility, and wear resistance, making them ideal for demanding applications that require durable, high-performance thin films. When choosing a titanium sputtering target, factors like alloy composition, purity, and target geometry must be considered to achieve optimal results in the sputtering process.
