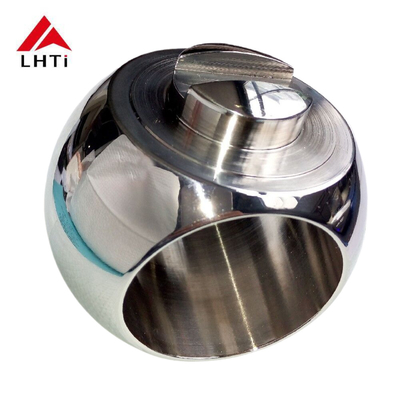

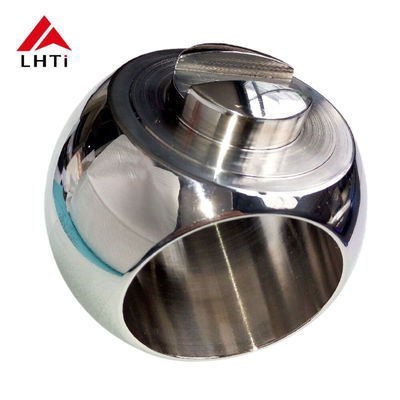

Titanium Balls Grade 2 Grade 5 Titanium Floating Ball For Water Management Systems

Name: Titanium Balls Grade 2 Grade 5 Titanium Floating Ball For Water Management Systems
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Ball
MOQ:	10 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Features:

Biological Compatibility,Non-Magnetic

Seat Type:

Soft Seat, Metal Seat

End Connections:

Flanged (ANSI, JIS, DIN, GB)

Design:

Full Port, Reduced Port

Face To Face Dimension:

ASME B16.10

Stem Material:

Titanium, Stainless Steel

Grades:

TA1 TA2 TA10 Gr2 Gr3

Bore Type:

Full Bore, Reduced Bore

Size:

1/2 Inch - 12 Inch

Blow-Out Proof Stem:

Yes

Sealing Method:

Floating Ball, Trunnion Mounted

Top Flange:

ISO 5211

Fire Safe Design:

API 607

Suitable Medium:

Water, Oil, Gas, Steam, Corrosive Fluids

Standards:

API 598, ASME B16.34, ISO 5211

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Grade 5 Titanium Ball Valve

High Strength Titanium Ball Valve

Grade 2 Titanium Ball Valve

Product Description

Titanium Balls for Water Management Systems

Titanium hollow balls are precision-engineered spherical components crafted from titanium or titanium alloys, featuring a lightweight hollow design while maintaining exceptional durability and structural integrity.

Key Characteristics

Lightweight Construction: Approximately 50% lighter than steel with comparable strength
Exceptional Corrosion Resistance: Superior performance in seawater, acids, and harsh environments
High Temperature Performance: Maintains mechanical properties under extreme thermal conditions
Biocompatible: Non-toxic and suitable for medical applications
Precision Engineering: Manufactured to exact specifications with consistent dimensional accuracy

Material Grades Available

Grade	Composition	Key Properties
Grade 1 (Gr.1)	Commercially Pure Titanium	Excellent corrosion resistance, good formability
Grade 2 (Gr.2)	99.2% Titanium	Good strength, high ductility, excellent weldability
Grade 5 (Ti-6Al-4V)	90% Ti, 6% Al, 4% V	High strength, heat resistance, aerospace-grade
Grade 23 (Ti-6Al-4V ELI)	Extra Low Interstitial	Medical grade, improved fracture toughness

Product Specifications

Parameter	Specification
Size Range	Diameter: 0.5mm - 300mm (Custom sizes available)
Available Materials	Gr.1, Gr.2, Gr.3, Gr.4, Gr.5, Gr.7, Gr.9, Gr.12, Gr.23
Surface Finish	Metallic luster, natural titanium color or custom coatings
Manufacturing Techniques	Machining, Forging, Drilling, Threading, Polishing
Titanium Content	≥ 99.6%
Impurity Content	< 0.02%
Density	4.51 g/cm³

Grade Comparison: Grade 2 vs Grade 5

Grade 2 Titanium

Composition: 99.2% pure titanium with trace elements
Strength: Moderate strength comparable to low alloy steels
Ductility: Highly ductile and easily formable
Weldability: Excellent welding characteristics
Applications: Chemical processing, marine environments, medical implants

Grade 5 Titanium (Ti-6Al-4V)

Composition: 90% titanium, 6% aluminum, 4% vanadium
Strength: Significantly stronger than Grade 2 with superior strength-to-weight ratio
Heat Resistance: Maintains properties at elevated temperatures
Fatigue Resistance: Excellent performance under cyclic loading
Applications: Aerospace components, high-performance engineering, critical structural parts

Applications

Water Management Systems: Floating balls for level control and buoyancy
Aerospace: Bearings, valves, and precision instruments
Medical: Implants, prosthetics, and surgical instruments
Industrial: Chemical processing, marine equipment, calibration metrology
Consumer: Body jewelry and high-end accessories

Customization Available: All titanium balls can be manufactured to specific customer requirements including custom sizes, alloy compositions, surface finishes, and specialized performance characteristics. Additional tooling and manufacturing processes available for unique applications.
