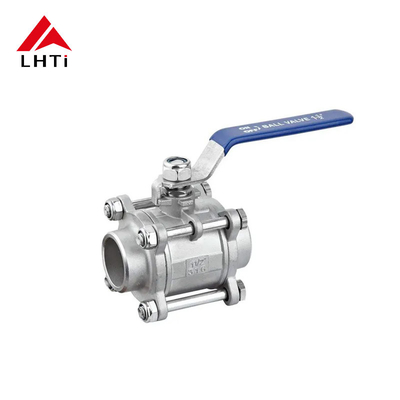

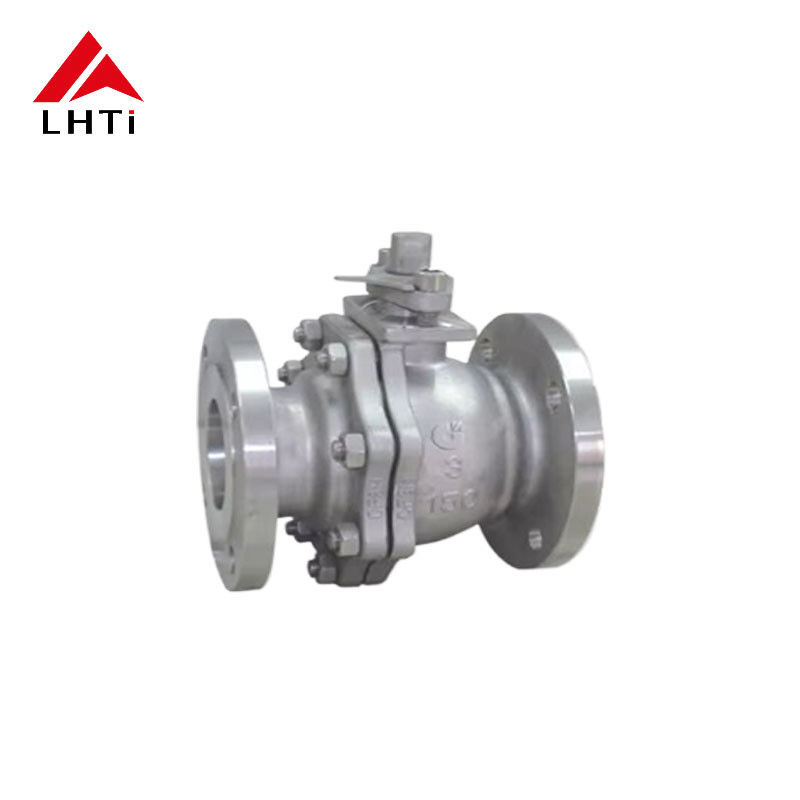

Unleashing the Full Potential of Oil and Gas Operations with Titanium Ball Valves

Brand Name:	LHTi
Model Number:	V Port Titanium Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Ball Grades:

Grade 2 And Grade 5

Applications:

Water Gas Steam, Industrial Applications

Surface:

Metallic Luster

Temperature Range:

-196°C - 600°C

Port Rating:

ASME Class 150, Flanged Ends

End Connections:

Flanged (ANSI, JIS, DIN, GB)

Anti-Static Design:

API 608

Standard:

GB/T12237、API6D、ASME B16.34

Body Type:

2-Piece, 3-Piece

Ti Content:

99.6%

Type:

Ball Valve

Operation:

Manual, Pneumatic, Electric

Surface Treatment:

Polished Mirror Bright

Pressure Rating:

Class 150 - Class 2500

Suitable Media:

Water, Oil, Gas, Chemicals

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

titanium ball valve for oil

titanium ball valve for gas

high-performance titanium ball valve

Product Description

Unleashing the Full Potential of Oil and Gas Operations with Titanium Ball Valves

Titanium Ball Valves for Oil and Gas Operations

In the demanding landscape of the oil and gas industry, titanium ball valves represent a significant advancement in fluid control technology. Known for exceptional strength, lightweight properties, and remarkable corrosion resistance, these valves are reshaping standards for operations in harsh environments.

Material Advantages

Titanium's excellent corrosion resistance ensures valve integrity in extreme environments like offshore drilling platforms and aggressive chemical applications. The lightweight characteristics contribute to more efficient handling and installation, providing significant logistical advantages in remote locations.

Innovative Design Features

The V-port design allows for precise control of flow rates, enabling linear flow characteristics for fine adjustments in drilling operations. Advanced sealing technologies withstand extreme pressures and temperatures, ensuring leak-free operation in challenging conditions.

Key Advantages

Precise Control: V-port design facilitates accurate modulation of flow rates
Corrosion Resistance: Exceptional longevity in challenging environments
Durability: Robust construction minimizes maintenance needs and downtime
High-Temperature Performance: Effective operation in high-temperature settings

Technical Specifications

Pressure Rating	PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter	DN25-DN350 1"-14"
Drive Mode	Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
Design Standards	GB/T12237, ASME B16.34
Testing Standards	JB/T9092, GB/T13927, API6D, API598

Industry Applications

Chemical Industry: Handling corrosive media including acids, alkalis, and oxides
Petroleum and Natural Gas: Controlling flow and pressure in extraction, transportation, and processing
Marine Engineering: Strong resistance to seawater corrosion in subsea pipelines and offshore platforms
Aerospace: Lightweight, high-strength properties for hydraulic and fuel systems
Food and Pharmaceutical: Non-toxic, contamination-free fluid control systems

Titanium ball valves offer long-term cost-effectiveness through reduced maintenance, extended service life, and improved operational efficiency. Their environmental benefits include minimized risk of fluid spills and recyclable material composition.
