Titanium Flange
Created with Pixso.

Gr23 Titanium Flange for Biomedical Equipment

Gr23 Titanium Flange for Biomedical Equipment

Brand Name: LHTi
Model Number: Blind Flange
MOQ: 5-10 pieces
Price: negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 5000 Pieces Per Month
Detail Information
Place of Origin:
Baoji, Shaanxi, China
Certification:
ISO9001,CE,etc
Certifications:
ISO 9001/CE/PED
Country Of Origin:
China/USA/Europe
Connection Type:
Welded/Threaded
Port:
Shanghai
Techics:
Forged
Craft:
Casting
Seal Face:
RF, FF, FM, M,RJ
Class:
CL300
End Type:
Raised Face
Grades:
Gr1,Gr2,Gr5,Gr7,Gr12,Gr23
Press:
600#
Connection Method:
Welding
Surface Treatment:
Painting
Executive Standard:
ANSI B16.5, GB/T9112
Test:
UT
Packaging Details:
Plywood case or pallet, or as per your requirement
Supply Ability:
5000 Pieces Per Month
Highlight:

Titanium flanges for biomedical engineering

,

Titanium bone connecting flanges

,

Medical grade titanium flanges

Product Description

Gr23 Titanium Flange for Biomedical Equipment

A flange in a biomedical plant is rarely part of the implant itself. It is the joint that carries sterile water, clean steam, compressed air or a cleaning chemical into a machine that has to be validated, and it is the part that a validation engineer will inspect for a crevice, a dye mark or a surface that cannot be cleaned. That changes the requirements: the grade becomes the ELI version of Ti-6Al-4V, the surface becomes passivated rather than painted, and the certificate becomes part of the delivery.

Biomedical Flange Data

Grade Gr23 Ti-6Al-4V ELI, Gr5, Gr2 and Gr12 also supplied
Material standard ASTM F136 for ELI, ASTM B381 for forgings
Dimensional standard ANSI B16.5 and GB/T 9112
Class 150, 300 and 600, raised face or flat face
Size 1/2 inch to 24 inch
Manufacture Forged and machined, not cast
Surface Machined, pickled and passivated, or electropolished
Test Ultrasonic test, dimensional and surface inspection
Certificate EN 10204 3.1 with heat number and test results

Grade Choice for Medical Equipment

Grade Tensile / yield, MPa Where it is used

Gr2345 / 275Sterile water, clean steam, machine framesGr5895 / 828High pressure and structural jointsGr23 ELI860 / 795Implant-adjacent and instrument parts, lower oxygen and ironGr12440 / 330Chemical cleaning and acid dosing lines

Gr23 is the extra low interstitial version of Gr5: the oxygen is held to 0.13 percent and the iron to 0.25, which raises ductility and fracture toughness at the cost of a small amount of strength. For a part that touches tissue, or that has to be bent and formed without cracking, that trade is worth taking and the grade is specified to ASTM F136 rather than to the general alloy standard. For a flange on a clean steam line the Gr23 premium buys nothing, and Gr2 is the sensible order.

Forged, Not Cast

A flange for a validated system is machined from a forged ring, so the grain flows around the section instead of ending at a casting skin. Cast titanium is porous at the surface, the porosity holds cleaning fluid and the part cannot be reliably passivated, which is why cast flanges are not accepted in a clean utility even when the chemistry is correct. The forging also gives a denser section for the ultrasonic test, and the test is what proves the absence of internal defects that a pressure joint cannot tolerate.

Surface and Cleanability

The surface treatment is where a biomedical flange differs most from an industrial one. Painting is not used, because a coating on a titanium flange is a layer that can chip into a sterile line and hide corrosion underneath. The finish is machining followed by pickling and passivation, or electropolishing where the surface has to be smooth at the micrometre level. Electropolishing removes the outer layer including embedded iron from tooling, rounds the edges of the bore and leaves a surface that resists biofilm. The flange face itself is protected during finishing, because a raised face that has been polished out of flat will leak.

Where These Flanges Are Installed

Typical points are the utilities on a steriliser, a clean steam header, a water for injection loop, a bioreactor skid, a dialysis machine and the clean side of a pharmaceutical filling line. In each case the flange is part of a system that is cleaned in place and steamed in place, so the joint has to survive repeated thermal cycling without relaxing, and the gasket has to be selected for the same cycle. Titanium is chosen where the water is chlorinated or where the cleaning chemical would attack stainless, and where the weight of a stainless flange on a moving machine part matters.

Joints, Gaskets and Bolting

A titanium flange is usually bolted to another titanium flange, and the gasket is PTFE, expanded PTFE or a PTFE envelope for clean service, or a spiral wound gasket with a PTFE filler where the temperature allows. Titanium bolts are rare: the bolting is normally stainless or a high strength alloy, isolated from the titanium by the gasket and by washers, because a titanium bolt in a titanium flange galls on assembly and cannot be relied on for the torque that a pressure joint needs. The bolt torque is calculated for the gasket, not for the flange material, and it is recorded because the joint is part of a validated system.

Ordering a Biomedical Flange

Specify the grade and its material standard, the dimensional standard and class, the face type, the size, the bore to match the tube, the surface finish and the test, for example 2 inch Class 150, Gr23 to ASTM F136, ANSI B16.5 raised face, bore to suit 50.8 mm tube, electropolished, UT tested, certificate 3.1. State that the part is for a clean utility, because that decides the passivation and the packing, and ask for the surface roughness and the borescope record if the flange is going into a sterile line.

Product Images

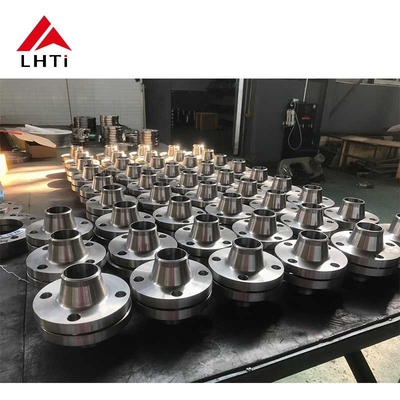

Gr23 ELI titanium flange for biomedical equipment

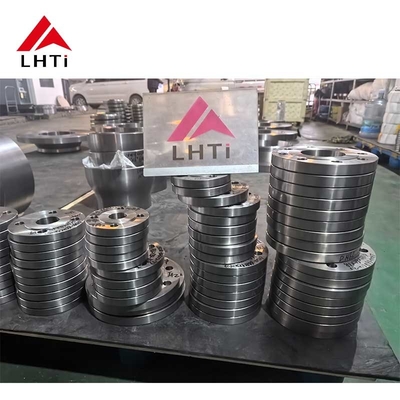

Gr23 ELI titanium flange for biomedical equipment

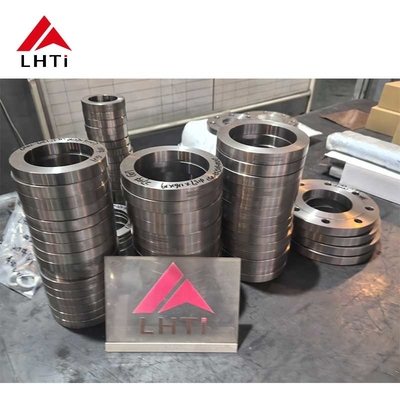

Gr23 ELI titanium flange for biomedical equipment

Gr23 ELI titanium flange for biomedical equipment
