Gr5 Titanium Sheet Plate ASTM B265 AMS 4911 2mm

Gr5 Titanium Sheet Plate ASTM B265 AMS 4911 2mm

Brand Name: LHTi
Model Number: Titanium sheet
MOQ: 50 kg
Price: USD13.00-38.00 per kg
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 200000 kg per month
Detail Information
Place of Origin:
China
Situation:
Annealed
Material Grade:
Titanium Gr5 Eli
Formability:
Good
Status:
Annealed(M)
Length:
2000mm
Sample:
Accept
Elongation:
10%
Material:
Titanium
Melting Point:
1668°C
Processing:
Cold-Rolled,Hot-Rolled
Application:
Aerospace, Medical, Chemical Industry
Surface:
Pickled Bright Polished Satin
Character:
Flexible
Package:
Wooden Case
Product:
Titanium Sheet
Packaging Details:
Plywood box with soft foam for additional protection
Supply Ability:
200000 kg per month
Highlight:

AMS 4911 Titanium Sheet Plates

,

ASTM B265 Titanium Sheet Plates

,

High Performance Titanium Sheet Plates

Product Description

Gr5 Titanium Sheet Plate ASTM B265 AMS 4911 2mm

Titanium is valued for its combination of high strength, low weight and strong corrosion resistance. Grade 5, also known as Ti-6Al-4V, is one of the most widely used titanium alloys because of its mechanical properties and versatility. It contains about 90% titanium, 6% aluminum and 4% vanadium, which gives a high strength to weight ratio and good fatigue resistance. This sheet and plate product is supplied annealed in 2 mm, 3 mm and 5 mm thickness to ASTM B265 and AMS 4911, with a pickled bright, polished or satin surface.

Technical Specifications

Product Titanium sheet, titanium plate
Material Grade Titanium Gr5 ELI (Ti-6Al-4V)
Status Annealed (M)
Processing Cold rolled, hot rolled
Surface Pickled bright, polished, satin
Thickness 2 mm, 3 mm, 5 mm, others on request
Length 2000 mm, or customized
Formability Good, flexible
Melting Point 1668 C
Application Aerospace, medical, chemical industry

Mechanical Properties

Property Value
Tensile Strength min (MPa) 895
Yield Strength min (MPa) 828
Elongation min (%) 10

ASTM B265 and AMS 4911 Standards

ASTM B265 specifies the requirements for titanium and titanium alloy plate, sheet and strip, covering chemical composition, mechanical properties and dimensional tolerances. AMS 4911 sets the additional requirements for titanium alloy sheet and plate used in aerospace work, where tight tolerances and consistent material properties matter. Following both standards lets the mill produce Gr5 sheet and plate that meets the demands of aerospace, automotive and medical industries.

Cold Rolling Process

Cold rolling passes the metal stock through rollers at room temperature, which reduces the thickness and improves the mechanical properties. The process starts with ingots or slabs that are formed and prepared, and because the material is deformed without heat it strain hardens as it passes through the rollers, raising strength and hardness while keeping dimensional accuracy and ductility. That is why cold rolled Gr5 titanium sheet is often chosen where a smooth finish and stable thickness are needed.

Product Pictures

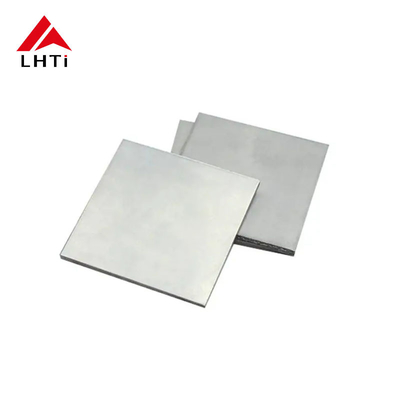

Gr5 titanium sheet plate ASTM B265 AMS 4911

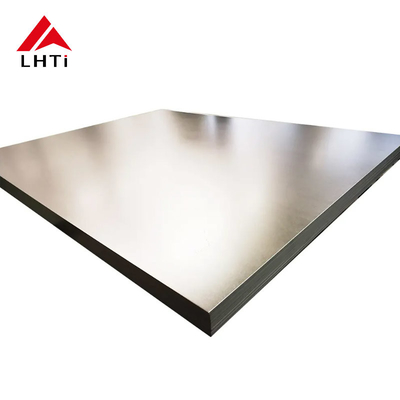

Cold rolled Gr5 titanium sheet 2mm 3mm 5mm

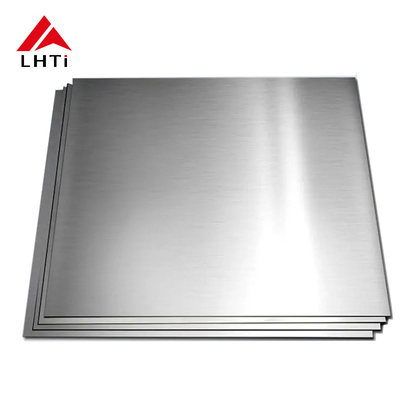

Annealed titanium plate pickled bright surface

Applications

Aerospace structures, medical implants and instruments, chemical processing equipment and other parts that need a light, strong and corrosion resistant sheet. Thickness, surface finish and size can be produced to the drawing or standard specification.
