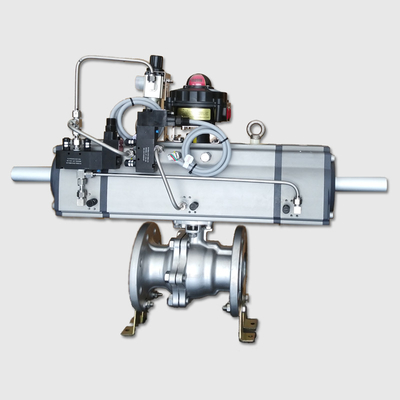

Three-Piece Pneumatic Ball Valve

Product Introduction:

The Three-Piece Pneumatic Ball Valve offers exceptional control and durability for various industrial applications. Key features include:

• Three-Piece Design: Comprises three separate components (body, ball, and end caps) for ease of maintenance and repair without removing the valve from the pipeline.
• Pneumatic Actuation: Operated by compressed air, providing fast and accurate valve control.
• Versatile Connections: Available with various end connections (flanged, threaded, etc.) to suit different installation requirements.
• High Durability: Constructed from robust materials to withstand high pressures and harsh environments.
• Easy Maintenance: The three-piece construction allows for quick disassembly and component replacement, minimizing downtime.
• Excellent Sealing: Ensures reliable performance with superior sealing capabilities, reducing leakage and maintenance needs.

This valve is ideal for applications in oil and gas, chemical processing, and water treatment where reliable performance and easy maintenance are critical.

Face-to-Face Dimensions for Ball Valve

Applications of Three-Way Titanium Ball Valves:

Three-way titanium ball valves are utilized across various industrial sectors due to their distinctive advantages:

• Chemical Industry: Titanium's superior corrosion resistance makes these valves ideal for handling corrosive substances like acids, alkalis, and oxides in chemical processes.

• Petroleum and Natural Gas Industry: They are crucial for managing fluid flow and pressure in the extraction, transportation, and processing of petroleum and natural gas, ensuring system safety and reliability.

• Marine Engineering: Their resistance to seawater corrosion makes them well-suited for marine applications, including subsea pipelines and offshore platforms.

• Aerospace Field: Their lightweight and high-strength properties make them essential for hydraulic and fuel systems in aerospace applications, meeting stringent aircraft requirements.

• Food and Pharmaceutical Industries: The non-toxic nature and contamination resistance of titanium make these valves suitable for fluid control in food processing and pharmaceutical sectors.

Common Connection Methods for Titanium Ball Valves:

Flange Connection: Perfect for medium to high-pressure systems, this method uses flanges and bolts to securely attach the valve to the pipeline, providing robust sealing, reliability, and ease of disassembly for maintenance.

Socket Connection: This involves inserting the pipe into the valve's socket end and securing it with welding or bonding, suitable for small-diameter systems. It offers effective sealing and mechanical strength.

Threaded Connection: Ideal for small-diameter, low-pressure systems, threaded connections (e.g., NPT, BSP) are straightforward and easy to install but are not suitable for frequent disassembly.

Welded Connection: Includes butt-welded or socket-welded options, used for high-temperature, high-pressure, and corrosive media systems. It ensures a permanent, leak-proof connection and is optimal for applications requiring maximum sealing and stability.
