ASME B16.10 Titanium V-Port Ball Valve For Water Treatment

Brand Name:	LHTi
Model Number:	V Port Titanium Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Full/Reduced Bore:

Full Bore

Fire Safe Design:

API 607, API 6FA

Suitable Medium:

Water, Oil, Gas, Steam, Corrosive Fluids

Face To Face Dimension:

ASME B16.10

Material:

Titanium

Grades:

TA1 TA2 TA10 Gr2 Gr3

Actuator Type:

Manual, Pneumatic, Electric

Design Standard:

API 6D, API 608, ASME B16.34

Operation Method:

Lever, Gear, Actuator

Application:

Chemical, Petrochemical, Power, Oil & Gas, Mining, Water Treatment

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

TA10 Titanium Ball Valve

Water Treatment Titanium Ball Valve

ASME B16.10 Titanium Ball Valve

Product Description

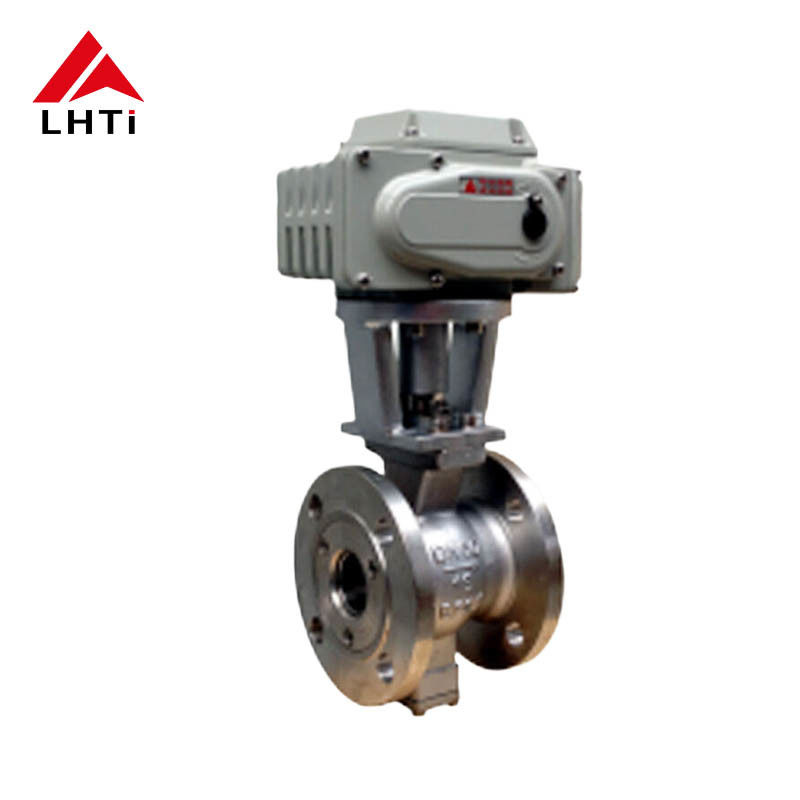

ASME B16.10 Titanium V-Port Ball Valve For Water Treatment

ASME B16.10 Titanium V-Port Ball Valve

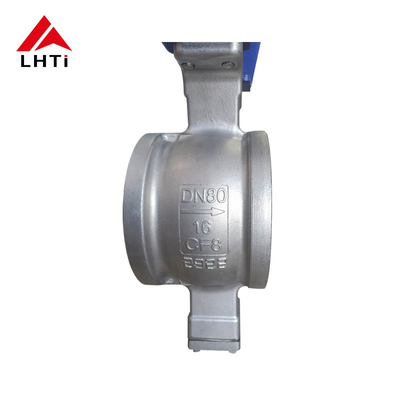

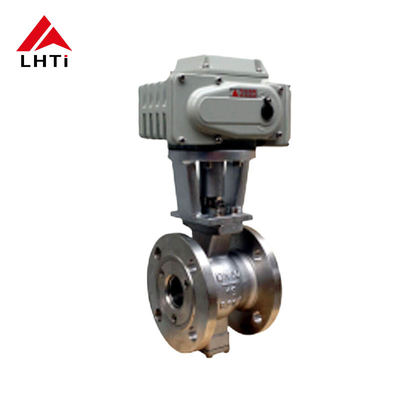

Special material ball valves designed for water treatment applications, available in TA1, TA2, TA10, Gr2, and Gr3 titanium grades with electric V-type ball valve operation.

Product Overview

Special material ball valves encompass various types including two-way, three-way, and four-way configurations. These valves feature both soft-seal and hard-seal options in floating and trunnion-mounted designs. Constructed from high-performance materials including titanium, nickel, zirconium, Hastelloy, Monel, Inconel, duplex stainless steel, 904L, Alloy 20, and C4 steel for exceptional performance in demanding environments.

A titanium V-port ball valve is a specialized control valve featuring a V-shaped port for fluid passage. This innovative design enables more precise flow control compared to traditional ball valves. The titanium construction provides exceptional corrosion resistance, making these valves ideal for demanding industrial applications.

Technical Specifications

Pressure Rating	PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter	DN25-DN350 1"-14"
Drive Mode	Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet	TA1, TA2, TA10, Gr2, Gr3
Ball	TA1, TA2, TA10, Gr2, Gr3
Stem	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring	PTFE, RPTFE, PPL, PEEK
Titanium Ball Valve Model	VQ647Y-16Ti, VQ647Y-25Ti, VQ647Y-40Ti, VQ647Y-150Lb(Ti), VQ647Y-300Lb(Ti), VQ647Y-16A, VQ647Y-25A, VQ647Y-40A, VQ647Y-150Lb(A), VQ647Y-300Lb(A), VQ947Y-16Ti, VQ947Y-25Ti, VQ947Y-40Ti, VQ947Y-150Lb(Ti), VQ947Y-300Lb(Ti), VQ947Y-16A, VQ947Y-25A, VQ947Y-40A, VQ947Y-150Lb(A), VQ947Y-300Lb(A)
Design Standards	GB/T12237, ASME B16.34
Face-to-Face Dimensions	GB/T12221, API6D, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API6D, API598

Main Features

V-Port Design: V-shaped port enables linear and stable flow control with enhanced accuracy for modulating or throttling applications
Corrosion Resistance: Titanium construction provides exceptional resistance to chemicals, seawater, and harsh environments
High Strength: Titanium's superior strength-to-weight ratio ensures durability and resilience
Temperature Tolerance: Capable of withstanding high temperatures for hot fluid and gas applications
Biocompatibility: Suitable for pharmaceutical and biotechnology industries due to non-reactive properties

Key Advantages

Precise Control: V-port design enables accurate modulation and control of flow rates
Corrosion Resistance: Exceptional longevity and reliability in challenging environments
Durability: Robust construction reduces maintenance needs and downtime
High Temperature Performance: Effective operation in high-temperature industrial applications

Industrial Applications

Chemical Industry: Handling corrosive media including acid and alkali solutions, and oxides in chemical production processes
Petroleum and Natural Gas Industry: Controlling flow and pressure in extraction, transportation, and processing operations
Marine Engineering: Fluid control systems in subsea pipelines and offshore platforms with excellent seawater corrosion resistance
Aerospace Field: Hydraulic and fuel systems requiring lightweight, high-strength components
Food and Pharmaceutical Industries: Fluid control systems where non-toxic, non-contaminating materials are essential
