ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve

Brand Name:	LHTi
Model Number:	ASME B16.34 Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Operation Method:

Lever, Gear, Actuator

Design Standard:

API 6D, ASME B16.34

Material:

Titanium TA2 GR2

Fire Safe Design:

API 607, API 6FA

Temperature Rating:

-196°C - 600°C

Pressure Rating:

Class 150 - Class 600

Face To Face Dimension:

ASME B16.10

Operation:

Manual, Pneumatic, Electric

Anti-Static Design:

API 608

Actuator Type:

Manual, Pneumatic, Electric

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

ASME B16.34 Three Way Ball Valve

6 Inch Three Way Ball Valve

Corrosion Resistant Three Way Ball Valve

Product Description

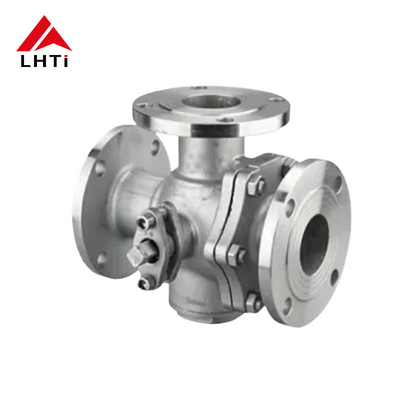

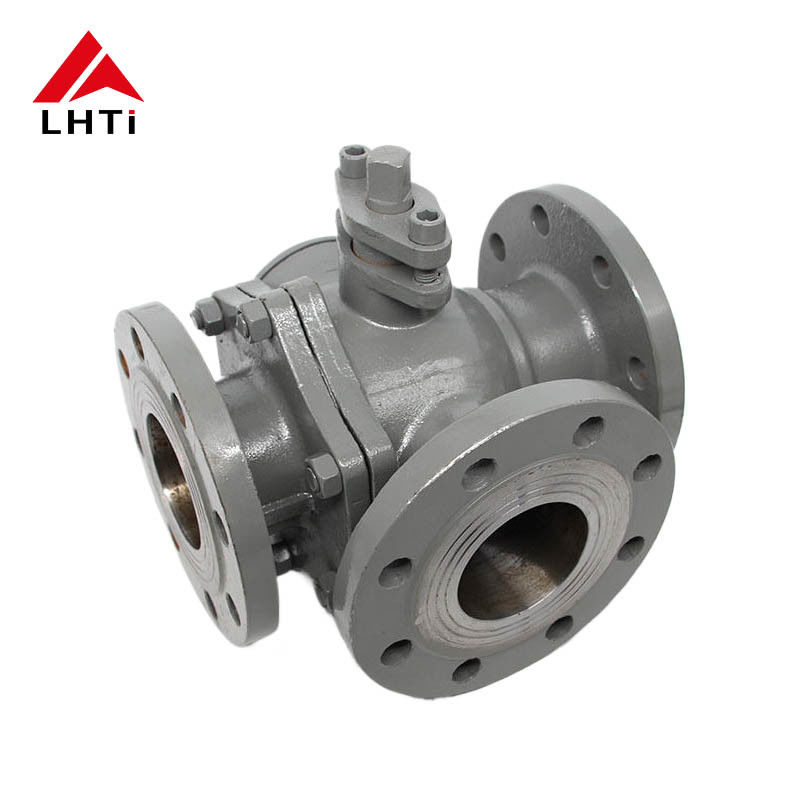

ASME B16.34 Three Way Ball Valve TA2 Titanium Ball Valve

Corrosion resistant 6-inch ball valve designed for demanding industrial applications with superior performance and reliability.

Three-Way Titanium Ball Valves: L-Type and T-Type

Three-way titanium ball valves are available in L-type (Q44F) and T-type (Q45F) configurations, each designed for specific flow control applications in industrial systems.

L-Type (Q44F) Three-Way Ball Valve

The L-type three-way ball valve is engineered for flow direction switching, connecting two perpendicular channels to effectively redirect medium flow from one direction to another.

T-Type (Q45F) Three-Way Ball Valve

The T-type three-way ball valve provides versatile media distribution, confluence, and flow direction switching capabilities. It enables interconnection of three channels or connection between any two channels for complex flow control requirements.

Technical Specifications

Pressure Rating	PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter	DN15-DN300 1/2"-12"
Drive Mode	Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
Titanium Ball Valve Models	Q44F-16Ti, Q44F-25Ti, Q44F-40Ti, Q45F-16Ti, Q45F-25Ti, Q45F-40Ti, Q344F-16Ti, Q344F-25Ti, Q344F-40Ti, Q345F-16Ti, Q345F-25Ti, Q345F-40Ti, Q644F-16Ti, Q64F-25Ti, Q644F-40Ti, Q645F-16Ti, Q645F-25Ti, Q645F-40Ti, Q944F-16Ti, Q944F-25Ti, Q944F-40Ti, Q945F-16Ti, Q945F-25Ti, Q945F-40Ti, Q44F-150LB(Ti), Q44F-300LB(Ti), Q345F-150LB(Ti), Q645F-150LB(Ti), Q945F-150LB(Ti)
Design Standards	GB/T12237, ASME B16.34
Face-to-Face Dimensions	GB/T12221, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API598

Valve Seat Structure

Three-way titanium ball valves typically feature a two-seat structure. Custom four-seat configurations are available upon request, providing enhanced sealing performance and operational flexibility for specialized applications.

Industrial Advantages

Ball valves offer compact construction, reliable sealing, simple design, and easy maintenance. The sealing surface and spherical surface remain in closed position, minimizing medium erosion. Suitable for general working media including water, solvents, acids, natural gas, and demanding applications with oxygen, hydrogen peroxide, methane, and ethylene.

Key Features

Minimal Fluid Resistance: Equal resistance coefficient to equivalent pipe length
Compact Design: Simple structure, small size, and lightweight construction
Reliable Sealing: Plastic sealing surfaces provide excellent sealing, suitable for vacuum systems
Quick Operation: 90° rotation for full open/close operation, compatible with remote control
Easy Maintenance: Simple construction with generally removable sealing rings for straightforward disassembly and replacement
Surface Protection: Ball and valve seat sealing surfaces isolate from medium when fully open or closed, preventing erosion

Industrial Applications

Chemical and Petrochemical Industry

Fluid distribution and confluence for chemical mixing or separation in complex reaction processes. Flow direction switching for production process requirements.

Oil and Gas

Pipeline system management for fluid transport path control, splitting, and merging operations. Equipment maintenance with fluid path switching to maintain system operation.

Water Treatment

Water distribution control in treatment plants for flow direction switching between treatment stages. Filtration system operation for filter status switching.

Food and Beverage Industry

Liquid handling for distribution, mixing, and flow direction switching in production lines. CIP system integration for cleaning and disinfecting liquid flow control.

Pharmaceutical Industry

Production process management for liquid medicine direction and mixing control. Laboratory equipment for fluid sample distribution and handling.

HVAC Systems

Cooling and heating system integration for cooling/heating water flow direction switching and temperature regulation. Energy management optimization through flow direction control.
