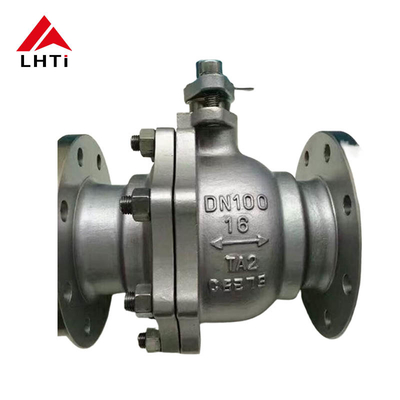

American Standard 2-Way Light Weight Titanium Alloy Ball Valve

Name: American Standard 2-Way Light Weight Titanium Alloy Ball Valve
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball Valves
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Ball Valves
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Features:

Lightweight, High Strength, Corrosion Resistance, Low Temperature Resistance, High Temperature Resistance

Product Name:

Titanium Ball Valves

Standard:

GB/T12237、API6D、ASME B16.34

Pressure Rating:

Class 150-600

Ball Materials:

Titanium TA1、TA2、TA10、Gr2、Gr3

Working Temp:

150°-425°

Testing Standards:

JB/T9092、GB/T13927、API6D、API598

Applications:

Water Gas Steam, Industrial Applications

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Gr2 Titanium Alloy Ball Valve

DN 50 Titanium Alloy Ball Valve

Industrial Uses Titanium Alloy Ball Valve

Product Description

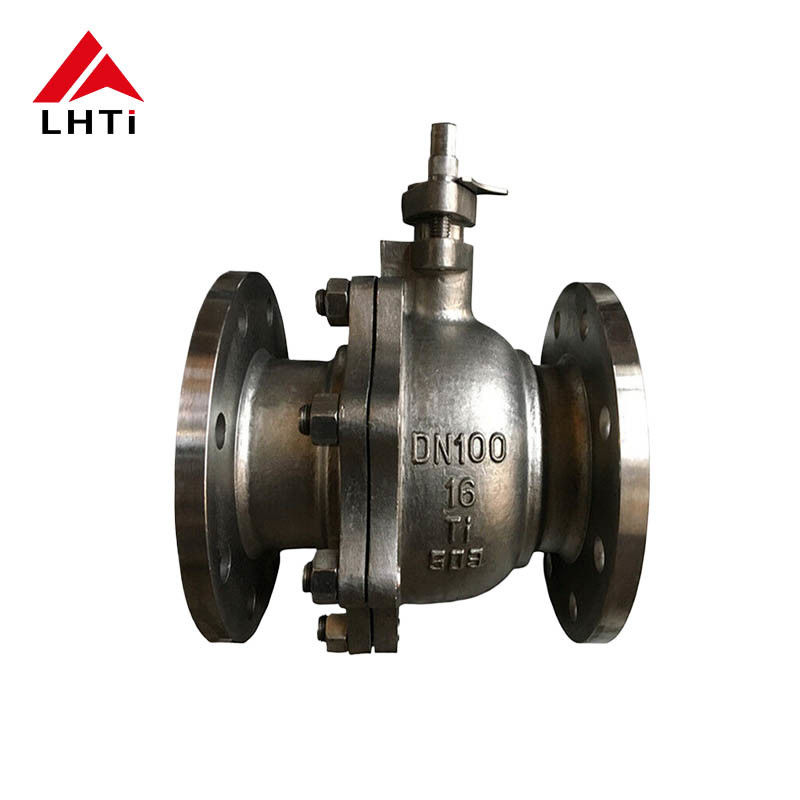

American Standard 2-Way Light Weight Titanium Alloy Ball Valve

Special material ball valves encompass various types including two-way, three-way, and four-way configurations. Available in both soft-seal and hard-seal designs with floating and trunnion-mounted options, these valves utilize high-performance materials such as titanium, nickel, zirconium, Hastelloy, Monel, Inconel, duplex stainless steel, 904L, Alloy 20, and C4 steel. These materials ensure exceptional corrosion resistance, mechanical strength, and reliability across demanding industrial applications.

Technical Specifications

Pressure Rating	Class 150-600Lb
Nominal Diameter	1/2" - 10"
Drive Mode	Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials	TA1, TA2, TA10, Gr2, Gr3
Ball Materials	TA1, TA2, TA10, Gr2, Gr3
Stem Materials	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials	PTFE, RPTFE, PPL, PEEK
American Standard Models	Q41F-150Lb(Ti), Q41F-300Lb(Ti), Q41F-600Lb(Ti), Q341F-150Lb(Ti), Q341F-300Lb(Ti), Q341F-600Lb(Ti), Q341F-150Lb(A), Q341F-300Lb(A), Q341F-600Lb(A)
Design Standards	GB/T12237, API6D, ASME B16.34
Face-to-Face Dimensions	GB/T12221, API6D, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API6D, API598

Titanium Grades

TA1 (Gr1)

Pure titanium offering the best ductility and toughness, easy to form and weld.

TA2 (Gr2)

Pure titanium with good overall performance including corrosion resistance and moderate strength, easy to form and weld.

TA9 (Gr7)

Titanium with 0.12-0.25% palladium addition, significantly enhancing corrosion resistance in reducing environments.

TA10 (Gr12)

Titanium alloy with molybdenum and nickel, providing better strength and heat resistance while maintaining good corrosion resistance.

TC4 (Gr5)

Titanium alloy with 6% aluminum and 4% vanadium, possessing very high strength and hardness with good corrosion resistance and low density.

Design Features

Excellent Corrosion Resistance: Operates stably in environments containing strong acids, strong alkalis, and other corrosive media, extending system service life.
Superior Mechanical Properties: Features good strength and hardness, with heat-treated titanium alloy achieving high strength for higher pressure and temperature applications.
Lightweight and High Strength: Lower density makes installation and maintenance easier while maintaining high strength for diverse working pressures.
Excellent Sealing Performance: Advanced sealing structures effectively prevent medium leakage, ensuring system safety and reliability with minimal contact area between ball and sealing ring.
Flexible Operation: Rotating ball mechanism enables quick opening and closing with minimal operating force, ensuring smooth and vibration-free operation.
Wide Applicability: Suitable for various conditions and media including chemical, petroleum, pharmaceutical, and marine engineering fields.

Common Applications

Chemical Industry

Used to handle strong acids, alkalis, and highly corrosive chemicals in chemical equipment, reactors, storage tanks, and piping systems.

Oil and Gas Industry

Applied in offshore oil platforms and onshore oilfield extraction equipment to resist corrosion from seawater and hydrogen sulfide gas in oil pipelines, natural gas facilities, and refineries.

Pharmaceutical and Food Industry

Meets hygiene standards and prevents reactions with pharmaceuticals or food in purified water systems, reactors, and mixing vessels.

Marine Engineering

Excellent resistance to seawater corrosion makes them ideal for marine structures, seawater desalination equipment, and subsea pipelines.

Power Industry

Used in power plants to handle high-temperature, high-pressure steam and corrosive cooling water in nuclear power plants, thermal power plants, and cogeneration equipment.
