Forged Gr2 Titanium Weld Neck Flange ANSI B16.5

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Titanium alloy forging flange

Titanium welded neck pipe fittings

Gr2 titanium flange

Product Description

Forged Gr2 Titanium Weld Neck Flange ANSI B16.5

This titanium alloy forging flange is supplied as a welded neck pipe fitting in Gr2. It is forged and CNC machined with a polished surface and an RF sealing surface, in sizes from 1/2 inch to 30 inch NB (DN10-DN2000) and pressure classes from 150# to 2500#. Titanium flanges offer a long service life, corrosion resistance and high yield and tensile strength, and are used in cars, glasses, medical equipment, electronics, petrochemical equipment, pump and valve, pipeline and ocean industry applications.

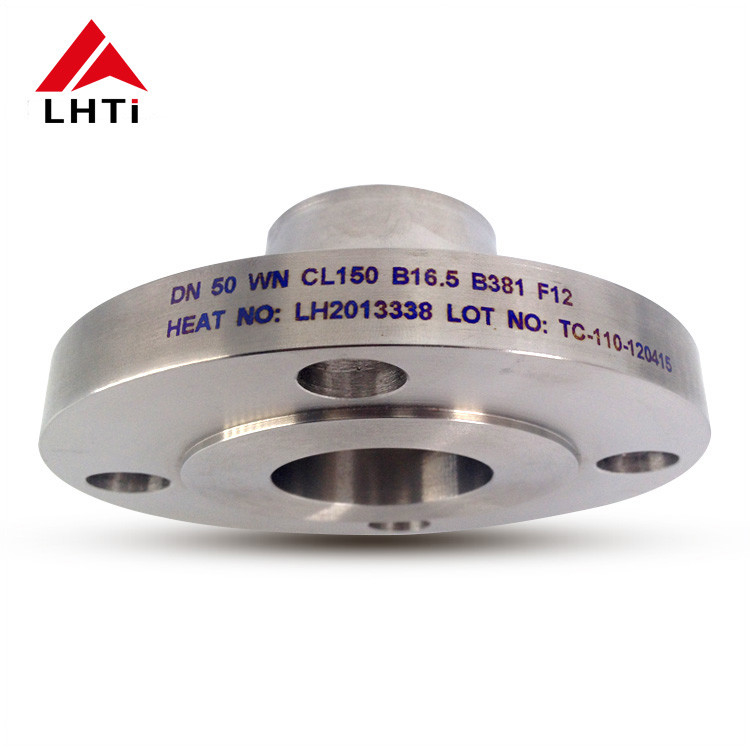

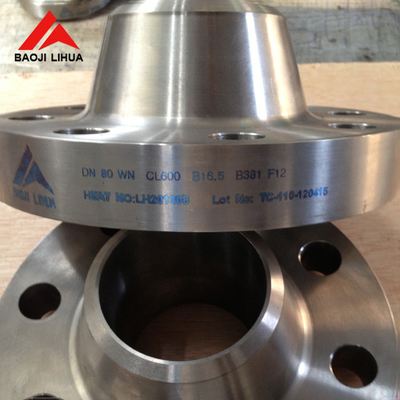

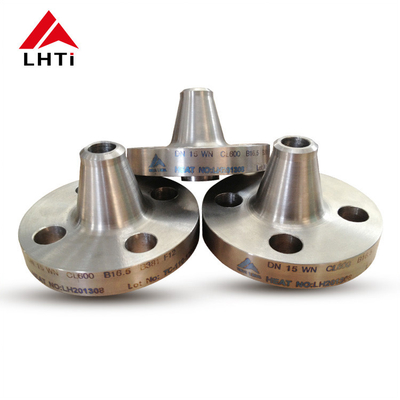

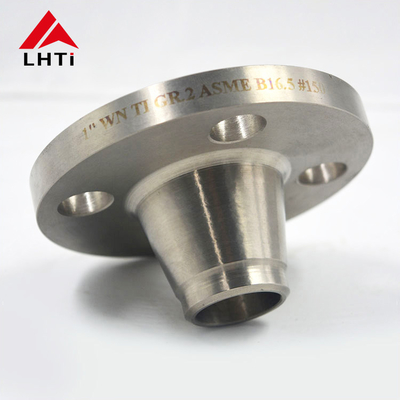

Forged Gr2 titanium weld neck flange

Technical Specifications

Type	WN, SO, BL, SW, PL, lap joint, customized
Standard	ANSI B16.5, JIS B2220, DIN 2627-2628, ASME, GB/T 9116, ASTM B16.5
Material	Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Sealing surface	RF
Size	1/2 inch - 30 inch NB, NPS 1/2 - NPS 24 (DN10 - DN2000)
Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6 - PN64
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing and material test report EN 10204 3.1

Chemical Requirements (wt %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Tensile Requirements

Grade	Tensile Strength min ksi [MPa]	Yield Strength min ksi [MPa]	Elongation %
1	35 [240]	20 [138]	24
2	50 [345]	40 [275]	20
5	130 [895]	120 [828]	10
7	50 [345]	40 [275]	20
12	70 [438]	50 [345]	18

Applications & Titanium Advantages

These titanium flanges are used in cars, glasses, medical equipment, electronics, petrochemical equipment, pump and valve, pipeline and ocean industry applications. Titanium offers a long service life and excellent corrosion resistance, together with high yield strength and tensile strength, so the joint stays leak-free and reliable in demanding service.

Quality, Customization & Inquiry

Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006 and holds ISO 9001:2015 and BV audit certification, with ultrasonic testing and material test reports to EN 10204 3.1 available. Custom types, sizes and sealing surfaces are offered, wrapped in foam inside a plywood box for export. Please send your drawing or specification for a quotation.
