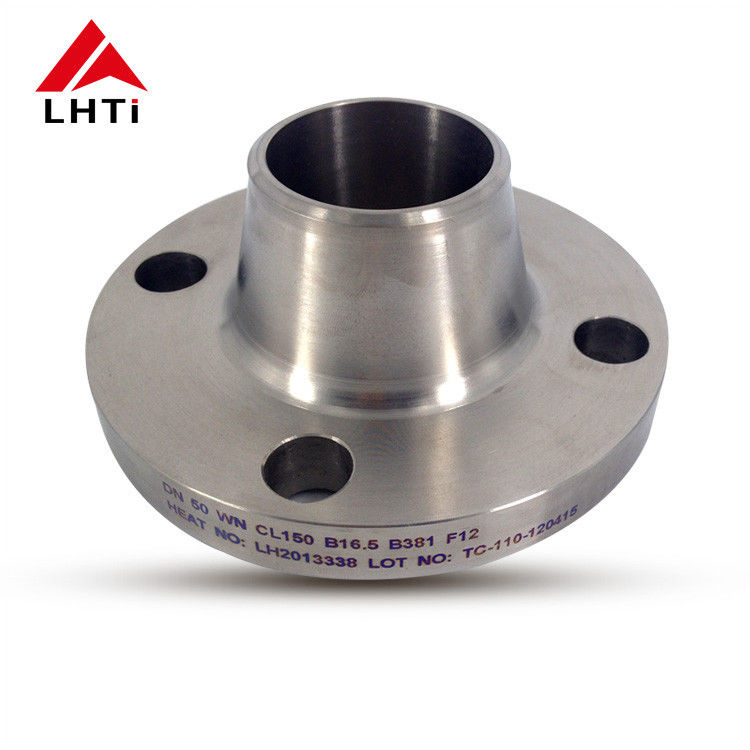

Titanium Weld Neck Flange ASME B16.5 JIS DIN GOST

Titanium Weld Neck Flange ASME B16.5 JIS DIN GOST

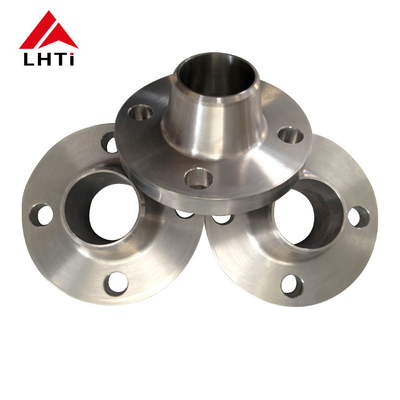

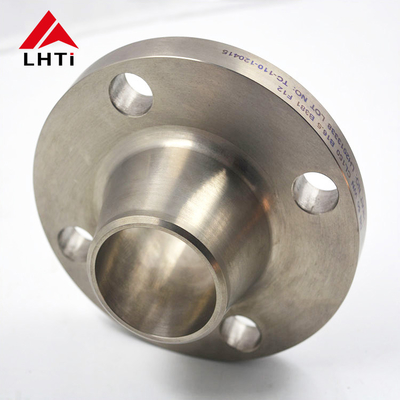

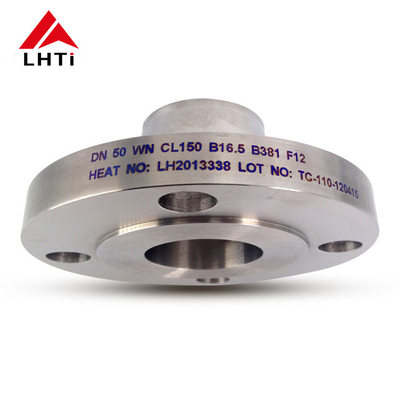

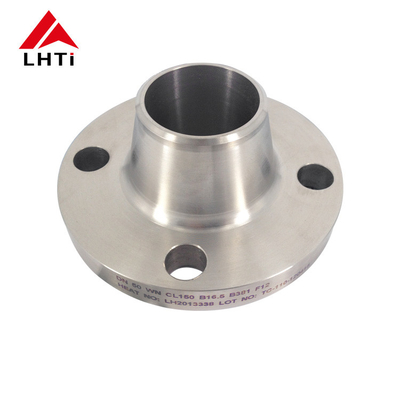

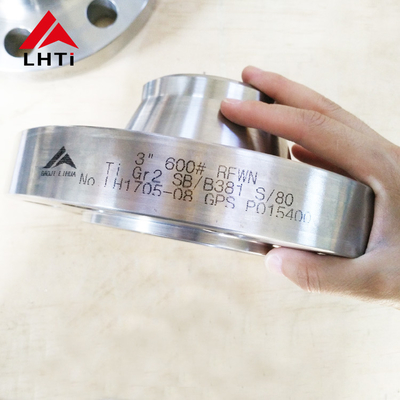

This forged titanium weld neck flange is supplied to a range of international flange standards, including ASME/ANSI B16.5, B16.36 and B16.47, AWWA C207-1994, JIS/KS B2220-2010, UNI EN1092-1 and GOST 12821-80 and GOST 33259-2015. Pressure ratings cover Class 150 to Class 2500 for the ASME series and PN6 to PN250 for the EN series, sizes run from DN15 to DN2000 (1/2 inch to 36 inch), and the flange is produced in Grade 1, Grade 2, Grade 5, Grade 7, Grade 11 and Grade 12 by forging and CNC machining.

Technical Specifications

Standards Available

Applications & Titanium Advantages

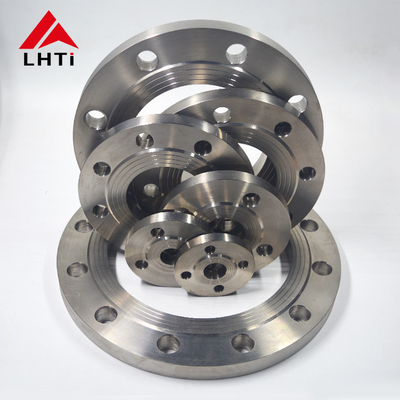

The flange, gasket and bolt work together as a detachable sealing assembly, and flange connections are widely used in pipeline construction because they are easy to assemble and can carry high pressures. These forged titanium weld neck flanges are used in petrochemical, power generation, aerospace, shipbuilding, metallurgy, gas, fire protection, medical equipment and environmental protection plants that operate at high pressure. Titanium gives long service life, corrosion resistance and high yield and tensile strength, so the flanges suit seawater and chemical service. Available types include plate flat (PL), welding neck (WN), slip on (SO), socket welding (SW), threaded (Th) and blind (BL) flanges.

Quality, Customization & Inquiry

Flanges are forged and CNC machined under ISO9001:2015 and TUV quality control. Size, pressure rating, seal face and grade can be customized, monthly capacity is 5000 pcs and orders are normally delivered within 3-15 work days. Please send your size, pressure rating, seal face and grade so that we can prepare a quotation.
