DN10-DN2000 Titanium WN Welding Neck Flange

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Ansi Titanium Blind Flange

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

DN10 Titanium Flange

Titanium WN Flange ASME B16.5

Polished Welding Neck Blind Flange

Product Description

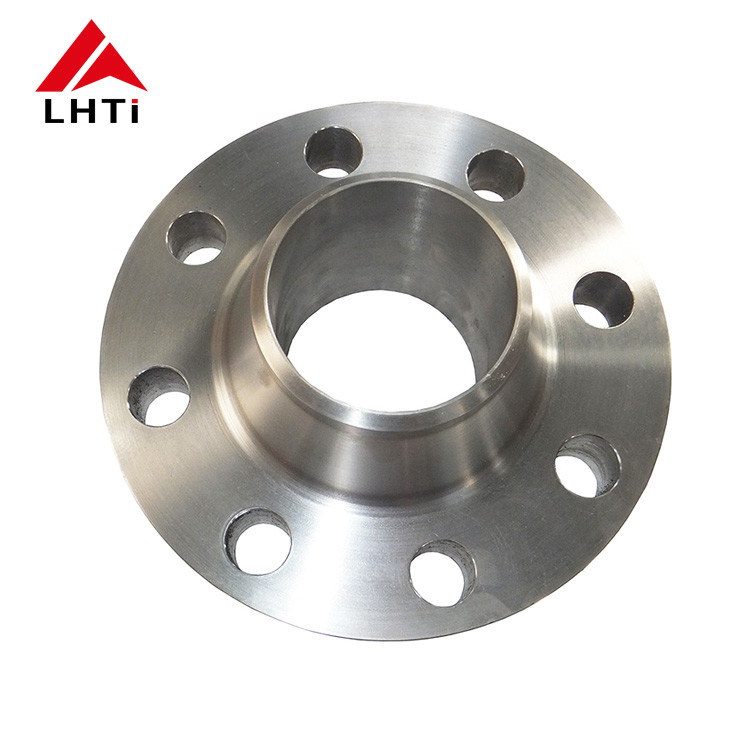

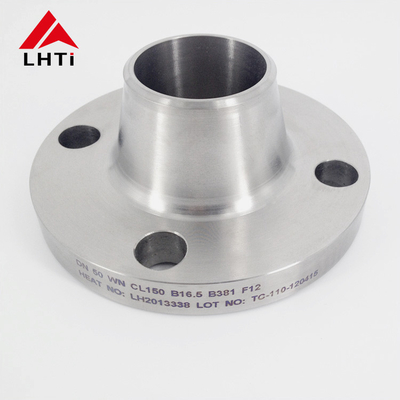

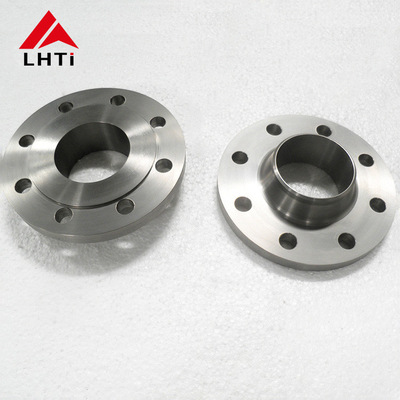

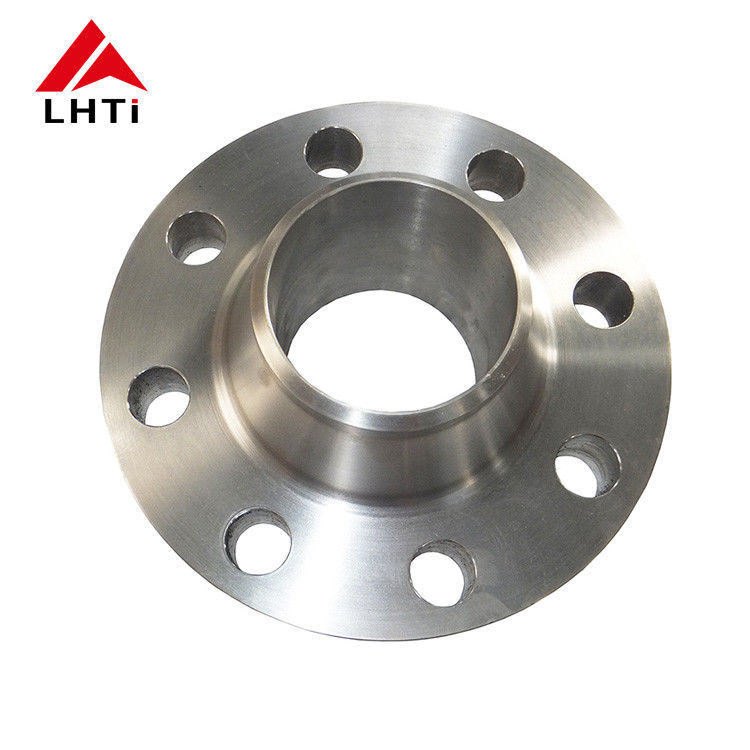

DN10-DN2000 Titanium WN Welding Neck Flange

This titanium WN welding neck flange is forged and CNC machined to ASME B16.5 with dimensions to ANSI/ASME B16.5, B16.47 Series A and B and B16.48, and it is also available to BS4504, BS10, EN-1092 and DIN. Sizes run from NPS 1/2 to NPS 24 (DN10 to DN2000) with pressure classes from 150# to 2500# and PN6 to PN64, in Grade 2, Grade 7 and Grade 12 with a polished raised face.

Technical Specifications

Product Type	Weld neck (WN) flange
Standard	ASME B16.5, ANSI B16.5, B16.47 Series A and B, B16.48, BS4504, BS10, EN-1092, DIN
Material Standard	ASTM B381 / ASME SB381
Grade	Gr2, Gr7, Gr12 (Gr1, Gr4, Gr5 available)
Size	NPS 1/2 - NPS 24 (DN10 - DN2000)
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6 - PN64
Face Type	Flat face (FF), raised face (RF), ring type joint (RTJ)
Sealing Surface	RF
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing and material test report EN10204.3.1
Application	Chemical industry, water conservancy, power stations, pressure vessels
Certification	ISO9001, TUV

Physical Properties by Grade

Grade	Tensile Strength min	Yield Strength min	Elongation (%)
Gr1	35 ksi / 240 MPa	20 ksi / 138 MPa	24
Gr2	50 ksi / 345 MPa	40 ksi / 275 MPa	20
Gr5	130 ksi / 895 MPa	120 ksi / 828 MPa	10
Gr7	50 ksi / 345 MPa	40 ksi / 275 MPa	20
Gr9	90 ksi / 620 MPa	70 ksi / 438 MPa	15
Gr12	70 ksi / 438 MPa	50 ksi / 345 MPa	18

Applications & Titanium Advantages

Titanium flanges are used in water conservancy, electric power and power stations, pipe fittings, industrial machinery and pressure vessels, and are particularly suited to chemical processing because they resist corrosion. Titanium has a low density and a high strength-to-weight ratio, so a titanium flange is lighter than a steel part of the same rating while still resisting seawater, chlorides and many acids. Forged construction gives uniform mechanical properties, and the raised face supports reliable gasket sealing.

Quality, Customization & Inquiry

Flanges are produced to ASTM B381 / ASME SB381 under ISO9001 and TUV control, with ultrasonic testing and a material test report to EN10204.3.1 available. Size, pressure class, face type and grade can be customized, monthly capacity is 5000 pcs and orders are normally delivered within 3-15 work days. Please send your size, pressure rating, face type and grade so that we can prepare a quotation.

Titanium welding neck flange
