Titanium Wire 0.5-200m Length Thermal Conductive

Titanium Wire 0.5-200m Length Thermal Conductive

Brand Name: LHTi
Model Number: Titanium wire
Detail Information
Place of Origin:
China
Surface:
Polished
Specific Heat:
0.124-0.132KJ/Kg·K
Diameter:
0.2-10mm
Thermal Conductivity:
21.9-23.9W/m·K
Yield Strength:
800-2000MPa
Shape:
Wire
Length:
0.5-200m
Magnetic Property:
Non-magnetic
Highlight:

Titanium Wire Non Magnetic

,

200m Titanium Wire

,

Aerospace Titanium Braided Wire

Product Description

Titanium Wire 0.5-200m Length Thermal Conductive

This titanium wire is supplied in lengths from 0.5 m to 200 m and in coiled, braided or woven mesh form. The wire has a thermal conductivity of 21.9 to 23.9 W/m.K and a polished surface that removes drawing marks and oxide, so it looks clean and resists corrosion well. Titanium is light, non-magnetic and strong, with a yield strength of 800 to 2000 MPa, and it keeps its properties at higher temperature. The wire is drawn from titanium and titanium alloy and can be supplied to the customer diameter and length for wiring, mesh and filler use.

Technical Specifications

Product Titanium wire
Material Titanium and titanium alloy
Shape Wire
Diameter 0.2 mm to 10 mm
Length 0.5 m to 200 m
Surface Polished
Thermal conductivity 21.9 to 23.9 W/m·K
Specific heat 0.124 to 0.132 KJ/Kg·K
Yield strength 800 MPa to 2000 MPa
Magnetic property Non-magnetic

Wire Forms

Form Description
Coiled wire Electrical resistivity 4.9 to 5.1 μΩ·m, tensile 1000 to 2500 MPa
Braided wire Same properties in a flexible braided rope form
Braided wire mesh Woven mesh made from the same titanium wire

Material Properties

Property Value
Density 4.51 g/cm3
Melting point 1668 °C
Electrical resistivity 4.9 to 5.1 μΩ·m
Tensile strength 1000 MPa to 2500 MPa
Yield strength 800 MPa to 2000 MPa

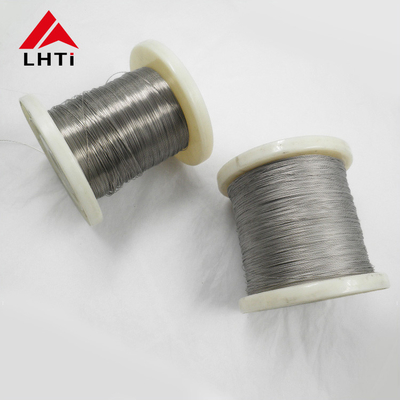

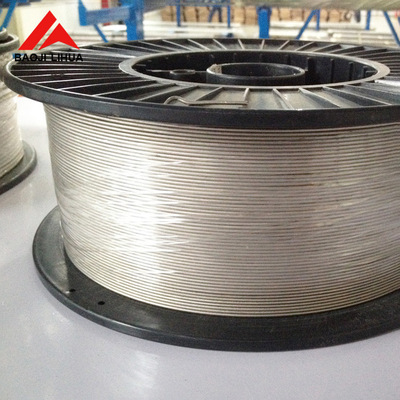

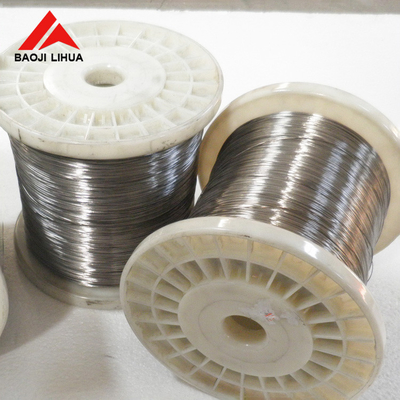

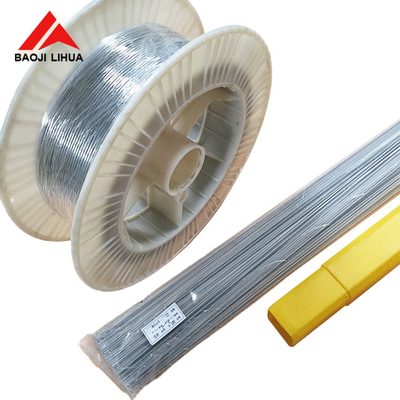

Product Picture

Titanium wire 0.5 to 200 m length

Applications

The wire is used where a light, strong and heat conducting material is needed. Coiled wire serves as welding filler and as a feedstock for fasteners and mesh. Braided wire gives a flexible rope that suits aerospace and medical hardware, and the woven mesh is used for filtration and screens. Other uses include electrical contacts, chemical processing, marine rigging and general engineering that needs a non-magnetic, rust free wire. Diameter, length and form can be produced to the customer requirement.
