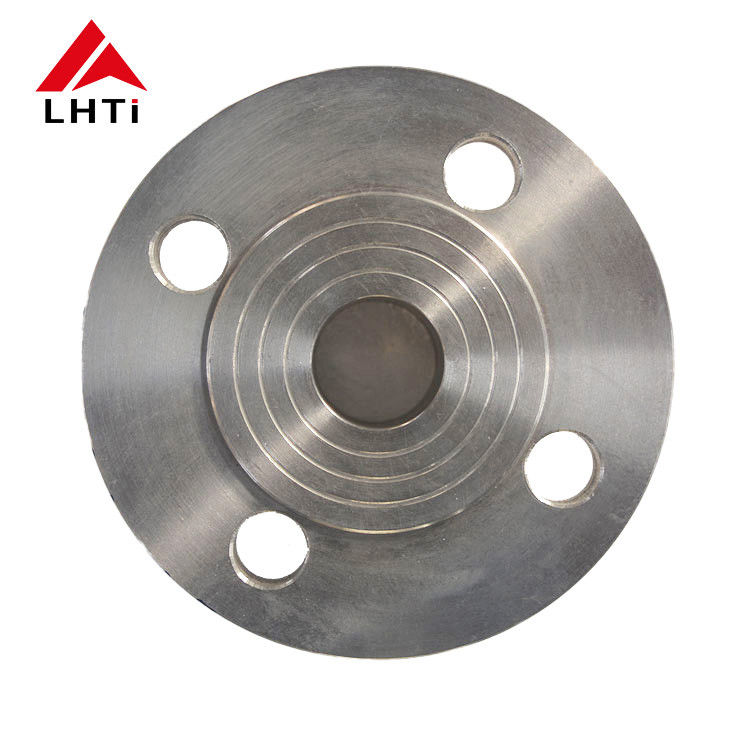

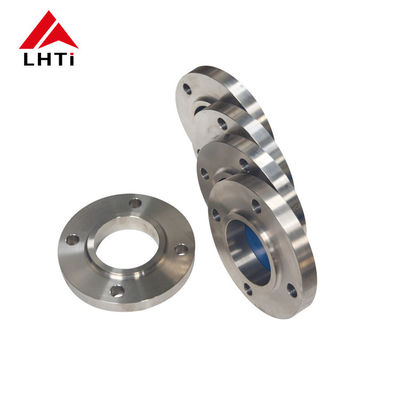

ASTM B16.5 Titanium Socket Weld (SW) Flange | RF Facing | Polished Surface

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Commodity:

Flat Welded Flange /welding Plate Flange

Type:

Weld Neck, Slip On, Blind, Threaded, Lap Joint

Application:

Chemical, Petrochemical, Marine, Aerospace

Technics:

Forged And CNC Machined

Unit Price:

$25usd/pc-$85usd/pc

Item Name:

Titanium Weld Neck Flange

Temperaturerange:

-200°C To 600°C

Din:

PN6,PN10,PN16,PN25 Though PN250

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Forged Titanium RF Flange

Sleeve Welding Machining Titanium Flange

Polished RF Titanium Flange

Product Description

ASTM B16.5 Titanium Socket Weld (SW) Flange | RF Facing | Polished Surface

High-Precision Polished Titanium Socket Weld Flanges

Our Titanium Socket Weld (SW) Flanges are the premier choice for small-diameter, high-pressure piping systems. Unlike slip-on flanges, the socket weld design provides a smooth bore and better flow characteristics, reducing turbulence and erosion inside the joint.

Item	Specification
Type	Socket Weld (SW) Flange / Sleeve Welding
Material	Grade 2, Grade 5, Grade 7 (Palladium-enhanced)
Facing	Raised Face (RF) - Serrated or Smooth Finish
Standard	ASME B16.5, ANSI, DIN 2633
Surface Finish	Mirror Polished (Ra < 0.2μm) or Bright Annealed
Size Range	1/2" to 3" (Ideal for small-bore high-pressure piping)
Application	Critical chemical lines, high-purity gas systems

Why Polished Surface Matters?

The mirror-polished surface (Ra < 0.2μm) is not just for aesthetics. In industries like semi-conductor processing and specialty chemicals:

Contamination Control: A polished surface prevents particle entrapment and makes cleaning/sterilization more effective.
Enhanced Corrosion Resistance: Polishing removes surface imperfections where stress corrosion cracking could potentially start.

Advanced Machining & Fitment

Each flange undergoes rigorous CNC machining to ensure the socket depth and diameter perfectly match your titanium piping. This ensures a tight fit-up and a high-quality fillet weld, minimizing the risk of weld leakage in critical environments.

FAQ:

Q: What is the main advantage of a Socket Weld Flange over a Slip-On Flange?
A: Socket weld flanges have an internal recessed area that acts as a guide for the pipe, providing a smoother internal flow and higher fatigue strength than slip-on flanges.

Q: Can I get these flanges with a customized RF height?
A: Yes. While 1/16" (1.6mm) is the standard RF height for Class 150/300, we can customize the facing dimensions according to your specific gasket and sealing requirements.
