Home Products

Titanium Flange

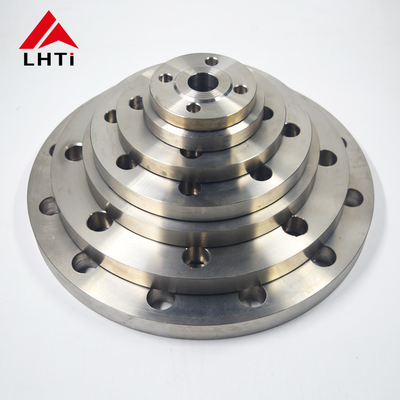

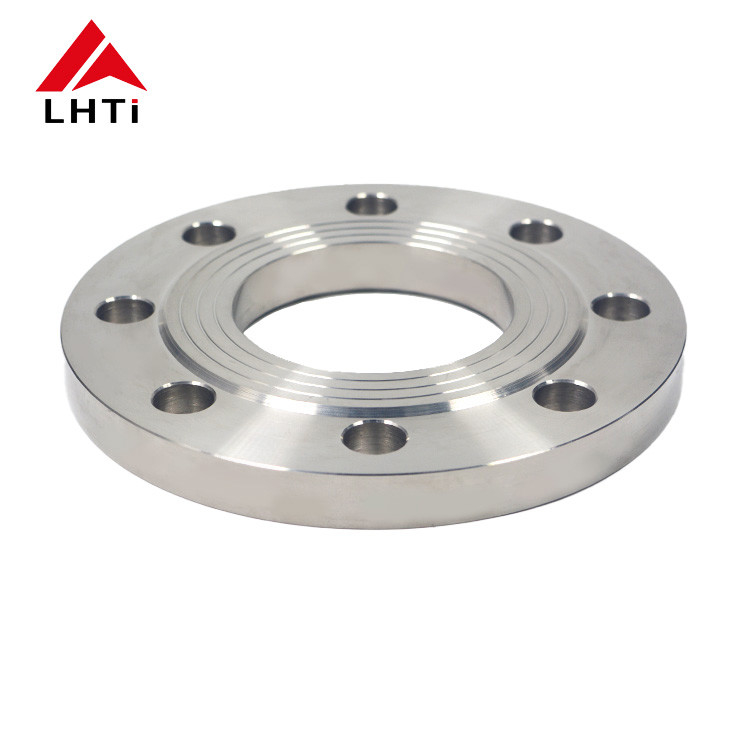

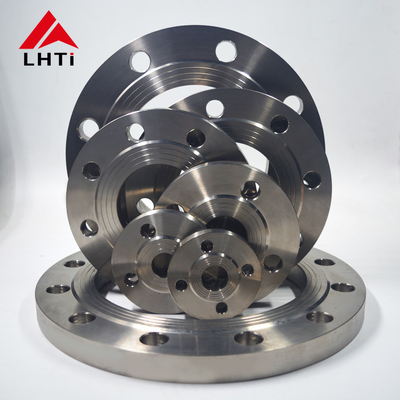

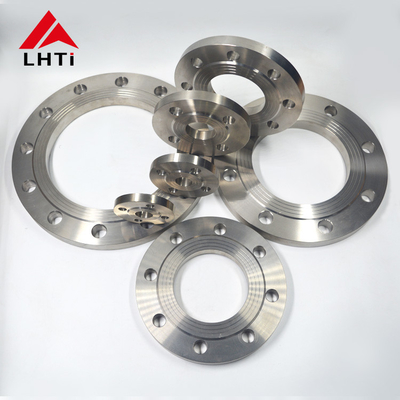

Threaded Titanium Flange PL DN40 RF25 HG/T20592-2009 ANSI

Name: Threaded Titanium Flange PL DN40 RF25 HG/T20592-2009 ANSI
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-BL
Price: 55.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

Threaded Flange

Standard:

ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME

Material:

Gr1 Gr2 Gr5 Gr7 Gr12 Etc.

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

Class150/300/600/9001500/2500

Surface:

Polished

Technique:

Forged Casting

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Titanium Flange PL

DN40 Titanium Flange

Titanium Threaded Flange

Product Description

titanium flange PL DN40 RF25 HG/T20592-2009 ansi flange

Item name	Titanium pipe flange
Standard	ANSI B16.5,DIN2630~2633,BS etc
Material	Gr1,Gr2
Size	(DN10~600)
Pressure rating	0.6~32Mp
	(DIN) PN6,PN10,PN16,PN25 though PN250
	(ASNI) CL150,CL300,CL600,CL900,CL1500
Working temperature	-60°C~250°C
Flange surface	FF,RF,TG,RJ etc
Quality control	Ultrasonic Testing & Material Test Report
Packaging	Plywood case line with foam or as per clients request

size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/
Flange Face Type	Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)
Grade	Titanium Gr1, Titanium Gr2, Titanium Gr4, Titanium Gr5, Titanium Gr7
Available Dimensions	OD:200-1300mm ID:100-900mm Height:35-250mm

Titanium Gr 2 Flanges are widelyused in various industries including petrochemical, oil and gas, power generation, bulk liquid

transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Ti Alloy Gr 2 Flange are
manufactured in accordance with international standards. Titanium Gr 2 Pipe Flange are packaged . Standard export packaging is
done in plywood cases, inside is filled in foam films to protect goods to ensure that there is no damage during transit. All

Titanium Gr 2 Plate Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make
custom marking on Gr 2 Titanium Flanges.
