Titanium Flange
Created with Pixso.

Titanium Plate Flange PL DN40 RF ANSI B16.5

Titanium Plate Flange PL DN40 RF ANSI B16.5

Brand Name: LH-Ti
Model Number: LH-BL
MOQ: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 pcs per month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001, TUV etc.
Type:
WN , SO , BL ,SW, PL, Lap Joint, Customized.
Standard:
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application:
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:
RF
Size:
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/
Surface:
Polished
Technique:
Forged And CNC Machined.
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Packaging Details:
Wrapped by foam contained in plywood box for export
Supply Ability:
5000 pcs per month
Highlight:

titanium flange DN40 RF25

,

ansi titanium flange DN40

,

titanium flange with RF25 face

Product Description

Titanium Plate Flange PL DN40 RF ANSI B16.5

This titanium plate flange (PL type) is a forged, CNC machined part with a raised face, made to DN40 and the ANSI B16.5 standard. A plate flange bolts to the mating flange through the pipe wall, which gives a simple and compact joint for low to medium pressure lines. The forged body is dense and free of porosity, the polished face lets the gasket seat evenly, and the raised face concentrates the bolt load where the seal is needed. Titanium resists chlorides, sea water and many acids and weighs about half as much as steel. Each part is checked by ultrasonic testing and shipped with a material test report to EN 10204 3.1.

Technical Specifications

Product Titanium plate flange (PL)
Standard ANSI B16.5, ASME, DIN, GB/T 9116, JIS B2220
Types PL, WN, SO, BL, SW, lap joint, customized
Grade Gr1, Gr2, Gr5, Gr7, Gr12
Size range 1/2 inch to 60 inch (DN15 to DN1200)
Pressure class 150# to 2500#, PN6 to PN64
Sealing surface RF (raised face)
Technique Forged and CNC machined
Inspection Ultrasonic testing and EN 10204 3.1 report

Chemical Composition Requirements (max %)

Grade N C H Fe O Al V Pd Mo Ni
Gr1 0.03 0.08 0.015 0.20 0.18 - - - - -
Gr2 0.03 0.08 0.015 0.30 0.25 - - - - -
Gr5 0.05 0.08 0.015 0.40 0.20 5.5-6.75 3.5-4.5 - - -
Gr7 0.03 0.08 0.015 0.30 0.25 - - 0.12-0.25 - -
Gr12 0.03 0.08 0.015 0.30 0.25 - - - 0.2-0.4 0.6-0.9

Tensile Strength Requirements

Grade Tensile (min) Yield (min) Elongation
1 240 MPa / 35 KSI 138 MPa / 20 KSI 24%
2 345 MPa / 50 KSI 275 MPa / 40 KSI 20%
5 895 MPa / 130 KSI 828 MPa / 120 KSI 10%
7 345 MPa / 50 KSI 275 MPa / 40 KSI 20%
12 438 MPa / 70 KSI 345 MPa / 50 KSI 18%

Product Picture

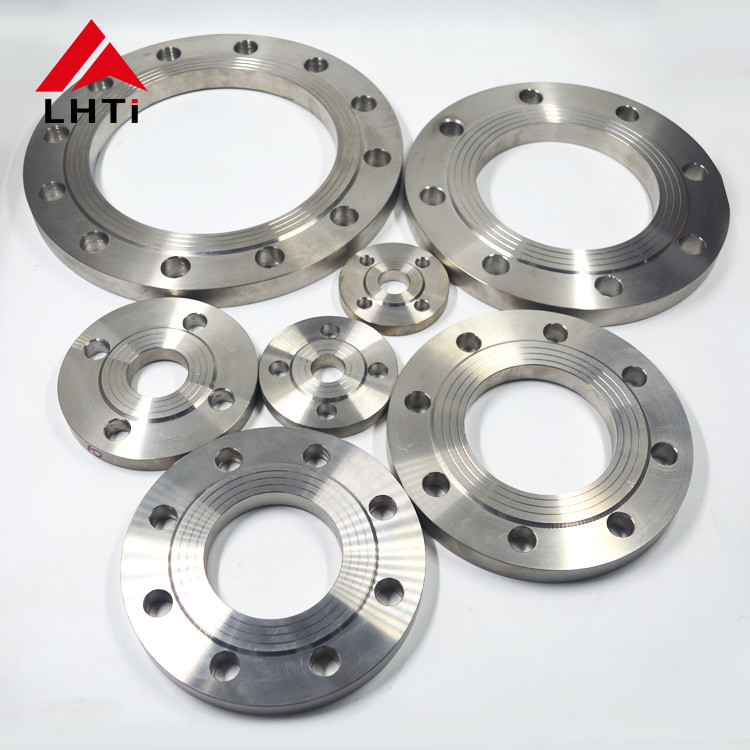

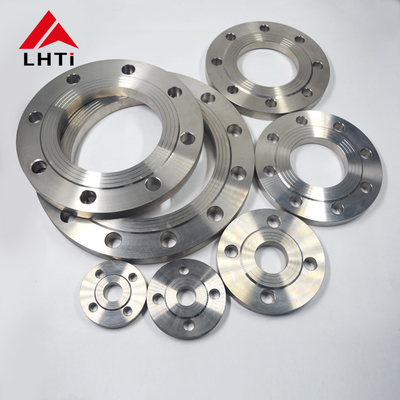

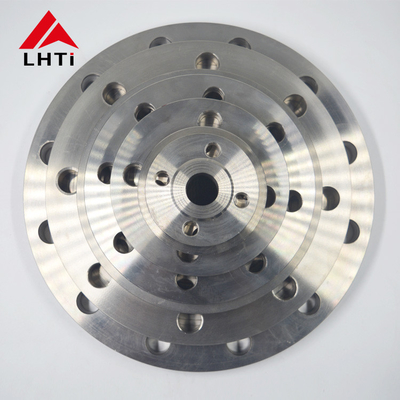

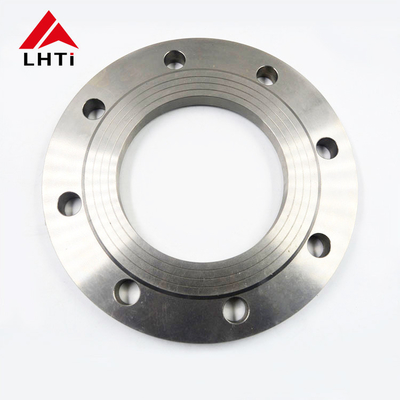

Titanium plate flange PL DN40 raised face

Applications

The plate flange is fitted where a compact, corrosion resistant joint is needed. Common uses include process plant piping, pump and valve connections, water treatment and desalination lines, oil and gas service, chemical handling equipment, marine pipework and general engineering. Because the size, pressure class and face can be produced to the drawing, the flange can be matched to existing pipework and gasket standards. Each batch is checked for dimensions, face finish and material before packing in wooden cases for export.
