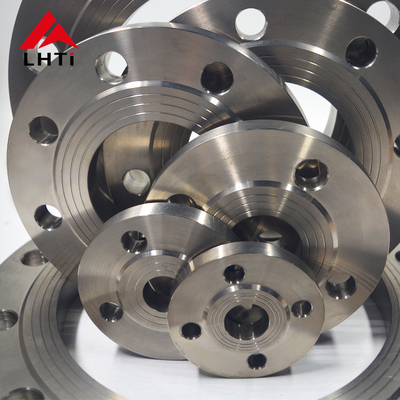

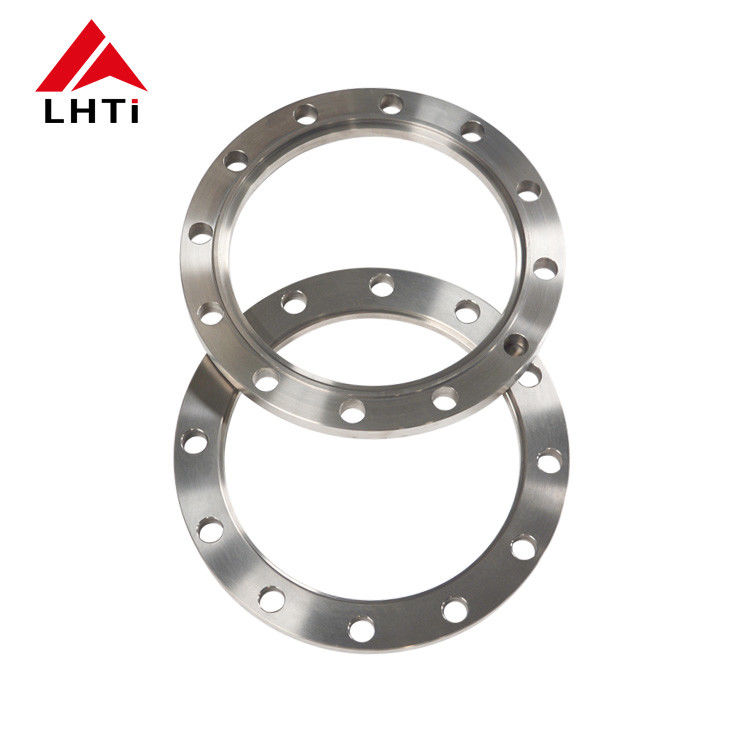

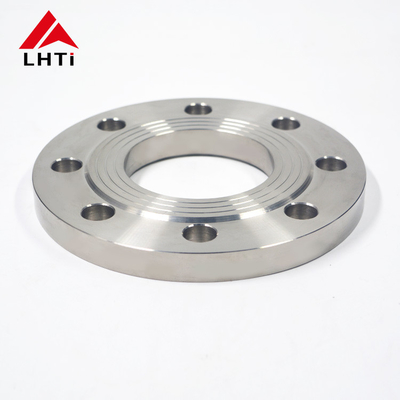

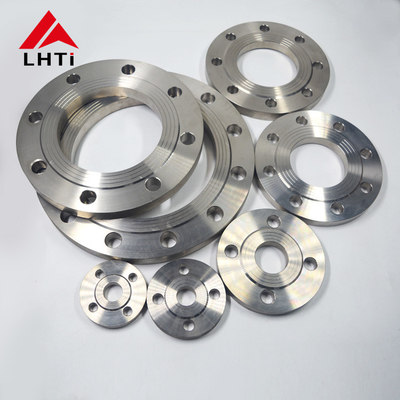

GR2 Titanium Blind Flange DN200 PN16 RF

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Titanium RF Plate Flange

DN200 Titanium Blind Flange

PN16 Titanium Blind Flange

Product Description

GR2 Titanium Blind Flange DN200 PN16 RF

This GR2 titanium blind flange is DN200 with a PN16 rating and a raised face sealing surface, forged and CNC machined to ANSI B16.5, ASTM B16.5, JIS B2220 and DIN2627-2628. Blind, weld neck, slip on, socket weld, plate and lap joint types can be supplied in Grade 1, Grade 2, Grade 3, Grade 4, Grade 7 and Grade 9 with a polished finish.

Technical Specifications

Product Type	Blind flange (BL), also WN, SO, SW, PL and lap joint
Standard	ANSI B16.5, ASTM B16.5, ASME, JIS B2220, DIN2627-2628, GB/T 9116
Grade	Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Size	NPS 1/2 - NPS 24 (DN10 - DN2000)
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6 - PN64
Sealing Surface	RF (raised face)
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing and material test report EN10204.3.1
Advantage	Long service life, corrosion resistant, high yield and tensile strength
Application	Medical equipment, electronics, petrochemical equipment, pump and valve, pipeline, aerospace, ocean industry
Certification	ISO9001, TUV

Applications & Titanium Advantages

Titanium flanges are used in cars, glass production, medical equipment, electronics, petrochemical equipment, pump and valve assemblies, pipelines, aerospace and ocean industry. A GR2 titanium blind flange closes a line or vessel and can be removed for inspection, and titanium resists seawater, chlorides and many acids, giving a long service life with high yield and tensile strength. Forged and CNC machined construction keeps dimensions accurate, and the polished raised face provides reliable sealing.

Quality, Customization & Inquiry

Flanges are produced to ANSI B16.5, ASTM B16.5, JIS B2220 and DIN2627-2628 under ISO9001 and TUV control, and ultrasonic testing with a material test report to EN10204.3.1 is available. Size, pressure class, face type and grade can be customized, monthly capacity is 5000 pcs and orders are normally delivered within 3-15 work days. Please send your size, pressure rating, face type and grade so that we can prepare a quotation.

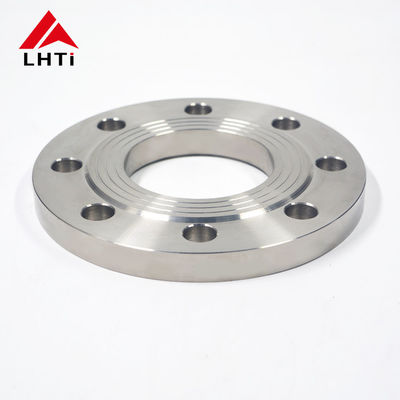

GR2 titanium blind flange
