Titanium Flange
Created with Pixso.

Polished Titanium PL Flange For Industrial Pipe

Polished Titanium PL Flange For Industrial Pipe

Brand Name: LH-Ti
Model Number: LH-BL
MOQ: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 pcs per month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001, TUV etc.
Type:
WN , SO , BL ,SW, PL, Lap Joint, Customized.
Standard:
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application:
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:
RF
Size:
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/
Surface:
Polished
Technique:
Forged And CNC Machined.
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Packaging Details:
Wrapped by foam contained in plywood box for export
Supply Ability:
5000 pcs per month
Highlight:

Gr12 Titanium PL Flange

,

Polished PL Flange

,

Industrial Pipe Connection Titanium Flange

Product Description

Polished Titanium PL Flange For Industrial Pipe

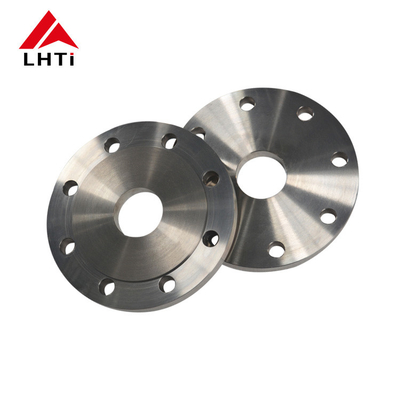

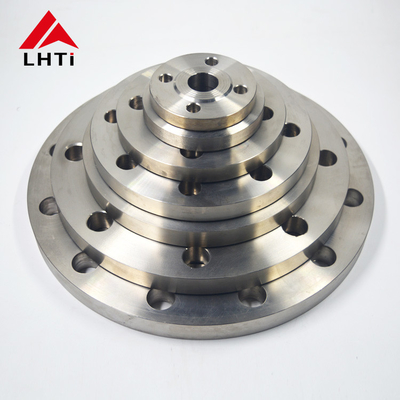

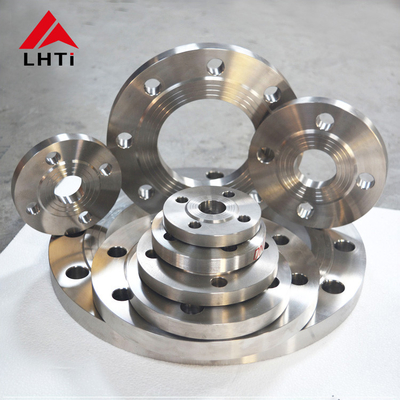

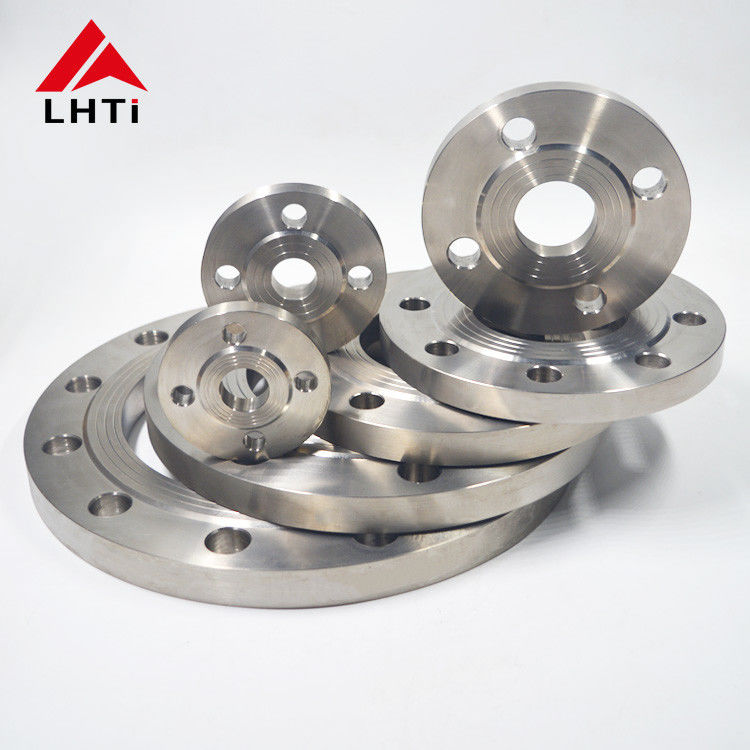

The titanium PL flange is a plate flange for industrial pipe connection, forged and CNC machined with a polished surface and a raised face. It is made to ANSI B16.5 and ASME in Gr1, Gr2, Gr5, Gr7 and Gr12, from 1/2 inch to 30 inch NB, with pressure ratings from 150# to 2500#. Long service life, corrosion resistance and high yield and tensile strength make it a reliable joint for petrochemical, pump valve and pipeline duty.

Technical Specifications

Item Specification
Type PL plate flange, also WN, SO, BL, SW, lap joint
Standard ANSI B16.5, ASME, JIS B2220, DIN 2627-2628, GB/T 9116
Material Grades Gr1, Gr2, Gr5, Gr7, Gr12
Size Range 1/2 to 30 inch NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Rating 150#, 300#, 600#, 900#, 1500#, 2500#, PN6 to PN64
Sealing Surface Raised face (RF)
Surface Polished
Technique Forged and CNC machined
Inspection Ultrasonic testing and EN 10204 3.1 material test report

Chemical Requirements (max %, balance Ti)

Grade N C H Fe O Al V Pd Mo Ni
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / /
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / /
Gr5 0.05 0.08 0.015 0.40 0.20 5.5-6.75 3.5-4.5 / / /
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12-0.25 / /
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2-0.4 0.6-0.9

Tensile Requirements

Grade Tensile Strength (MPa, min) Yield Strength (MPa, min) Elongation (%)
Gr1 240 138 24
Gr2 345 275 20
Gr5 895 828 10
Gr7 345 275 20
Gr12 438 345 18

Applications and Inquiry

Titanium PL flanges are used in petrochemical equipment, pump valves, pipelines, heat exchangers and ocean industry piping where corrosion resistance matters. Send us your size, pressure rating, grade and face type and we will confirm the right polished titanium plate flange for your connection.
