Titanium Flange
Created with Pixso.

Titanium Flange Forged WN BL SO SW PL Types

Titanium Flange Forged WN BL SO SW PL Types

Brand Name: LH-Ti
Model Number: LH-BL
MOQ: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 pcs per month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001, TUV etc.
Type:
WN , SO , BL ,SW, PL, Lap Joint, Customized.
Standard:
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application:
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:
RF
Size:
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/
Surface:
Polished
Technique:
Forged And CNC Machined.
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Packaging Details:
Wrapped by foam contained in plywood box for export
Supply Ability:
5000 pcs per month
Highlight:

Custom Threaded Weld Neck Flange

,

Stainless Steel Copper Titanium Brass Flange

,

Brass Titanium Blind Flange

Product Description

Titanium Flange Forged WN BL SO SW PL Types

These titanium flanges are forged and CNC machined in a full range of types, including weld neck, slip on, blind, socket welding, plate and lap joint. They are supplied in Gr1 to Gr9 with a polished surface and offer a long service life with corrosion resistance and high yield and tensile strength. Standard sizes run from 1/2 inch to 30 inch and pressure classes from 150 to 2500.

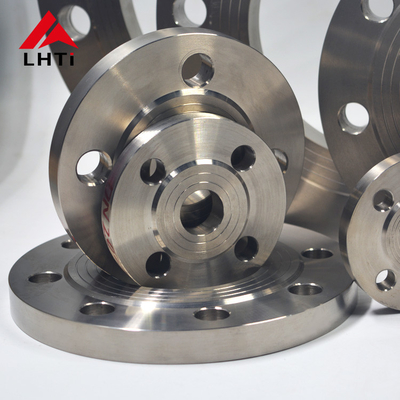

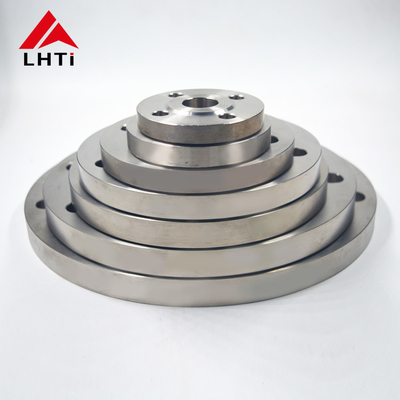

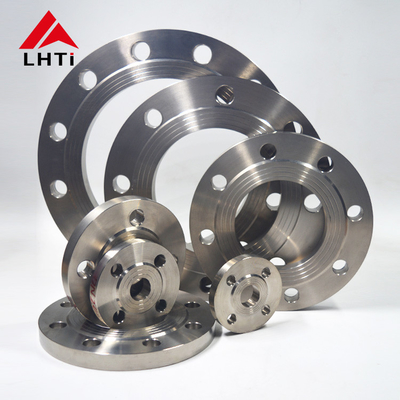

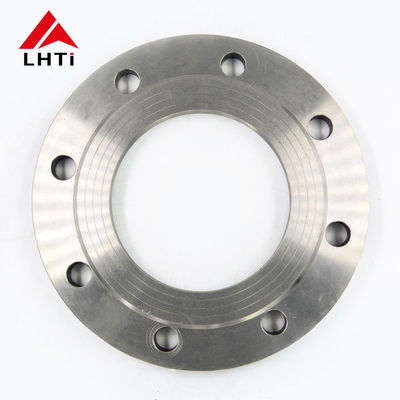

Forged Titanium Flange

Technical Specifications

Standard ANSI B16.5, JIS B2220, DIN2627-2628, ASME B16.5, GB/T 9116
Material Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Type WN, SO, BL, SW, PL, lap joint, customized
Size 1/2" - 30" NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6 - PN64
Sealing Surface RF
Surface Polished
Technique Forged and CNC machined
Inspection Ultrasonic testing & material test report EN10204 3.1

Chemical Requirements (%)

Grade N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5-6.75 3.5-4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12-0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2-0.4 0.6-0.9 bal

Tensile Requirements

Grade Tensile Strength (KSI) Tensile Strength (MPa) Yield Strength (KSI) Yield Strength (MPa) Elongation (%)
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

Applications & Flange Advantages

These flanges are used on cars, glass and medical equipment, electronics, petrochemical equipment, pump and valve assemblies, pipelines, aerospace and ocean industry systems. Titanium resists corrosion in chlorides and oxidising media and keeps high yield and tensile strength, so the joint stays reliable in aggressive service.

Quality, Customization & Inquiry

Manufacturing follows an ISO 9001:2015 system with ultrasonic testing and a material test report to EN10204 3.1 available, and BV audit certification. Types, sizes, grades and pressure ratings can be made to your drawing. Please send your specification and quantity for a quotation.
