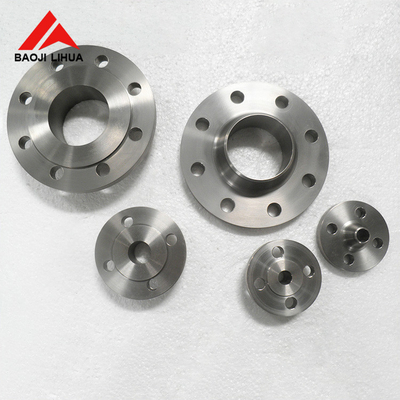

ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Ansi Titanium Blind Flange

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

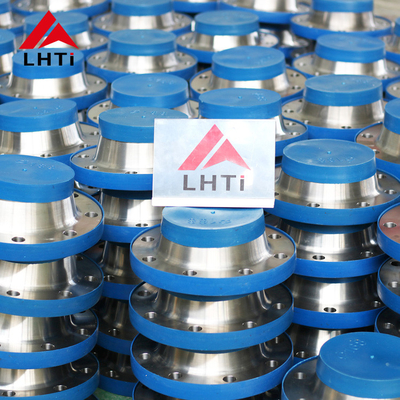

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Oil Gas Industry RF Titanium Flange

RF Titanium Pipe Flange

Gr2 WN Titanium Blind Flange

Product Description

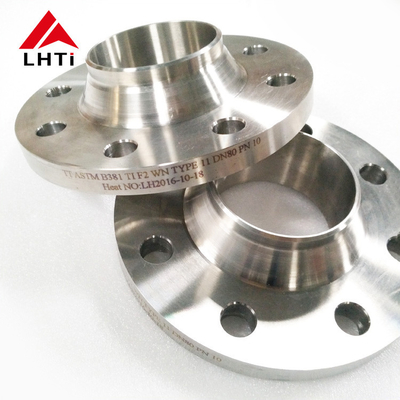

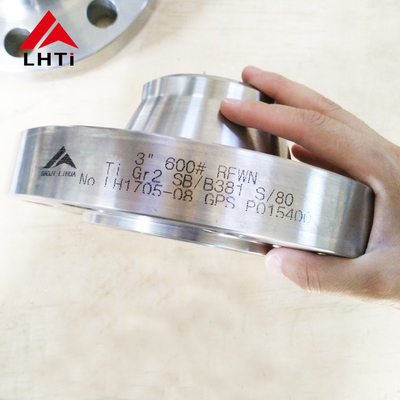

ASME B16.5 Grade 2 Titanium WN RF Flange - Corrosion Resistant

Our ASME B16.5 Grade 2 Titanium Welding Neck (WN) Raised Face (RF) Flanges are engineered for high-stress environments in the oil, gas, and chemical processing industries. Combining the lightweight properties of titanium with superior corrosion resistance, these flanges ensure leak-proof connections and long-term structural integrity.

Technical Specifications

Feature	Details
Standard	ASME B16.5 / ANSI B16.5
Material	Titanium Grade 2 (UNS R50400)
Type	Weld Neck (WN)
Face Type	Raised Face (RF)
Pressure Class	150# to 2500#
Size Range	1/2" to 24" (DN15 - DN600)
Surface Treatment	Sandblasting, Polishing, Machining Finish

Key Benefits

Extreme Corrosion Resistance: Specifically resistant to seawater, chlorine, and organic acids.
High Strength-to-Weight Ratio: 45% lighter than steel but equally strong, reducing the overall load on piping systems.
Thermal Stability: Maintains mechanical properties in temperatures ranging from sub-zero to 800°F.

Standard Dimensions

Nominal Size	Outside Diam (D)	Thickness (C)	Bore (B)	Hub Length (L)	No. of Bolt Holes
1" (Class 150)	108 mm	14.2 mm	26.7 mm	55.6 mm	4
2" (Class 150)	152 mm	19.1 mm	52.5 mm	63.5 mm	4
4" (Class 150)	229 mm	23.9 mm	102.3 mm	76.2 mm	8

Applications

Offshore Oil Drilling: High resistance to salt spray and seawater pressure.
Chemical Processing: Handling corrosive fluids in heat exchangers and reactors.
Desalination Plants: Preventing pitting corrosion in saline environments.
