Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $180/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Product Name: |
Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2" - NPS 24"(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Product Name: |
Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2" - NPS 24"(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |

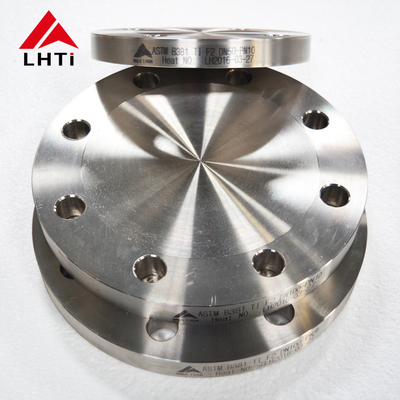

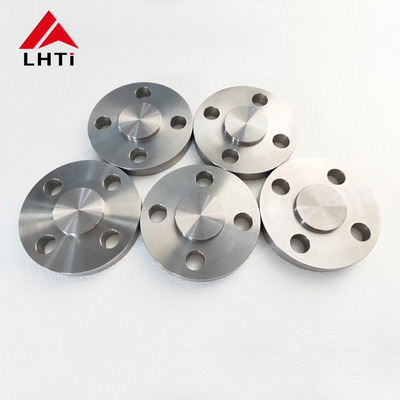

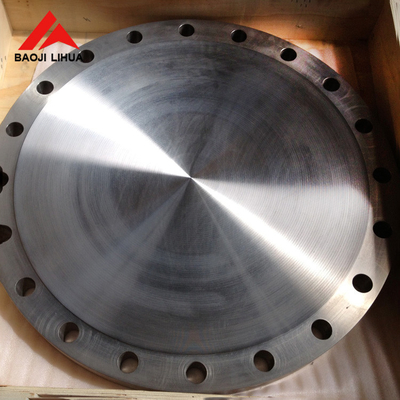

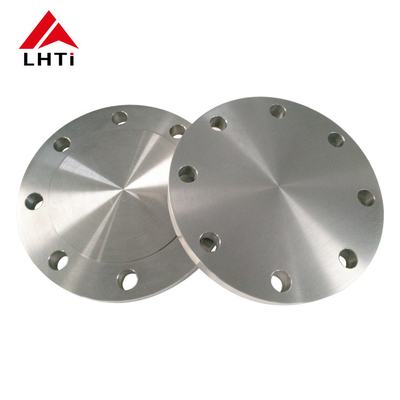

ASME/ANSI B16.5 titanium blind flanges
| Products | Titanium Flange |
| Material Grade | Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr23, TI-6Al4v, Ti6Al4V Eli |
| Certification | ISO9001:2008 |
| Standard | ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
| size | 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
| Pressure Clase | PN0.25~32Mpa |
| (DIN) PN6,PN10,PN16,PN25 though PN250 | |
| 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB | |
| Technique | Forged and CNC Machined |
| type | WNRF, SORF, BLIND, SW, PL |
| Flange surface | FF,RF,TG,RJ etc |
| Application | used in cars, glasses, medical equipment, electronics, petrochemical equipment |
| Advantage | 1. Long service life |
| 2. corrosion-resistant | |
| 3.hign yelled strength and tensile strength. |
3. Available Dimensions
| OD ( mm) | I D ( mm) | HEIGHT ( mm) |
| 200-400 | 100-300 | 35-120 |
| 400-700 | 150-500 | 40-160 |
| 700-900 | 300-700 | 50-480 |
| 900-1300 | 400-900 | 70-250 |
Baoji Lihua Group
As a leading manufacturer of titanium products for over 17 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.
If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 15 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
