ANSI B16.5 titanium Flange Grade2 pipe fittings flange

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

GR5 Titanium Welding Flange

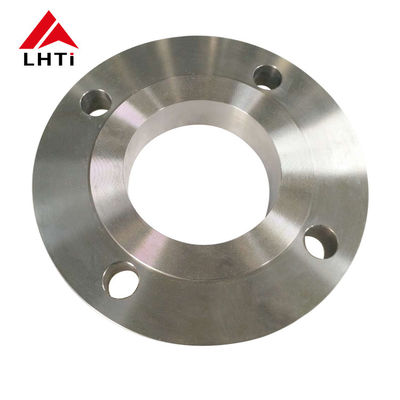

Titanium Straight Hub Welding Flange

Straight Hub Pipe Fittings Flange

Product Description

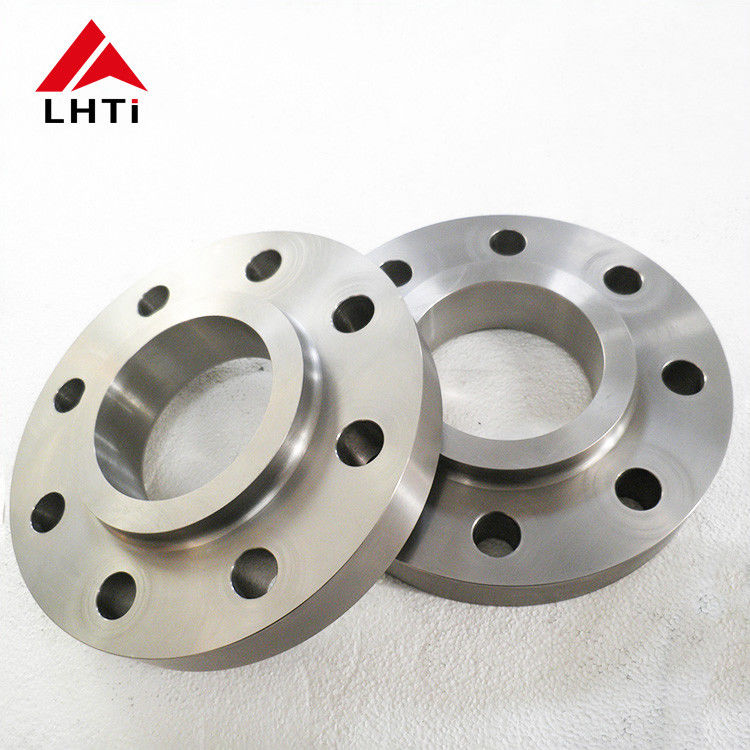

ANSI B16.5 Titanium Flange Grade 2 Pipe Fittings

High-quality ANSI B16.5 titanium flange pipe fittings manufactured from Grade 2 titanium, designed for demanding industrial applications requiring exceptional corrosion resistance and mechanical strength.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength	Elongation (%)
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18

Titanium Flange Specifications

Material Grades: Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Standards: ANSI B16.5, JIS B2220, DIN 2627-2628, ASME, GB/T 9116, ASTM B16.5
Manufacturing Technique: Forged and CNC Machined
Flange Types: WN, SO, BL, SW, PL, Lap Joint, Customized
Applications: Automotive, Glass Manufacturing, Medical Equipment, Electronics, Petrochemical Equipment, Pump Valves, Pipeline Systems, Aerospace, Ocean Industry
Key Advantages: Long service life, Excellent corrosion resistance, High yield strength and tensile strength

About Baoji Lihua Non-ferrous Metal Co., Ltd.

Established in 2006, Baoji Lihua Non-ferrous Metal Co., Ltd. leverages the industrial advantages of Baoji with strong technical support. The company specializes in the production and sales of non-ferrous metals including titanium, tantalum, and nickel.

Our 800 square meter factory features advanced technical equipment with over 20 sets of CNC machines, milling and drilling machines, achieving an annual production value exceeding 30 million CNY.

We maintain consistently high product quality and hold ISO 9001:2015 certification along with BV audit certification. Our commitment to quality improvement and stability, combined with a customer-focused business approach, ensures exceptional service and product performance.

Frequently Asked Questions

1. Any discount?

Our prices are wholesale-based, with better discounts available for larger order quantities. Please specify your purchase quantity for our best pricing.

2. Are you a manufacturer?

Yes, we are an experienced manufacturer with 13 years of expertise. Our fully equipped Product and QC Departments ensure the highest quality standards.

3. How do I know if my products are delivered?

We provide tracking numbers for all shipments and are available to provide shipment information upon request.

4. Has your company acquired any certificate?

We are ISO9001 Quality Management System certified manufacturers.

5. How about quality of products?

Each product undergoes strict quality control with careful inspection and testing before delivery.

6. What about payment terms?

We accept T/T, L/C, Western Union, and PayPal.

7. How is your MOQ?

Minimum order quantity is 10kg for specific items, with flexible MOQ options for combined product orders.

8. How about delivery time?

Standard delivery is within 5-7 days via express, subject to order quantity requirements.
