DN100 4 Inch Gr2 Titanium Slip On Flange

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

DN100 4" Titanium Flange

Titanium Slip On Pipe Flanges

Gr2 Slip On Flange

Product Description

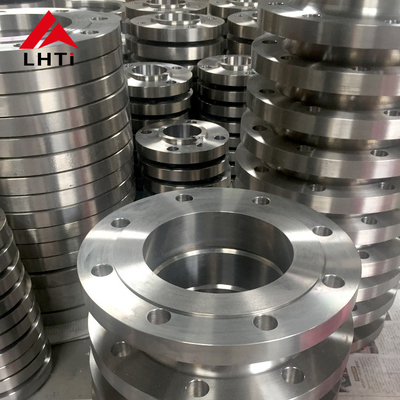

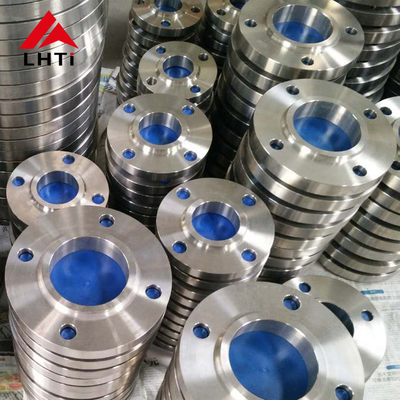

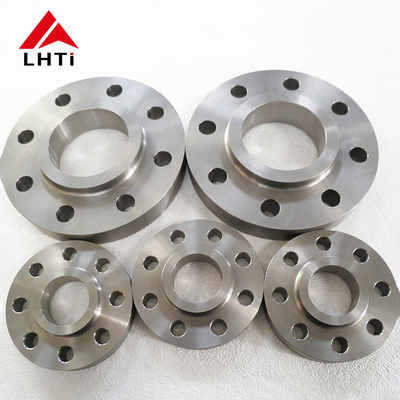

DN100 4 Inch Gr2 Titanium Slip On Flange

This titanium slip-on pipe flange is supplied in Grade 2 with a DN100 (4 inch, NPS 4) size and an ASME B16.5 Class 150 pressure rating. The flange is forged and CNC machined with a polished finish and an RF sealing face. Titanium flanges are used where a light, corrosion-resistant and long-life joint is needed in petrochemical, pump and valve, pipeline and marine equipment.

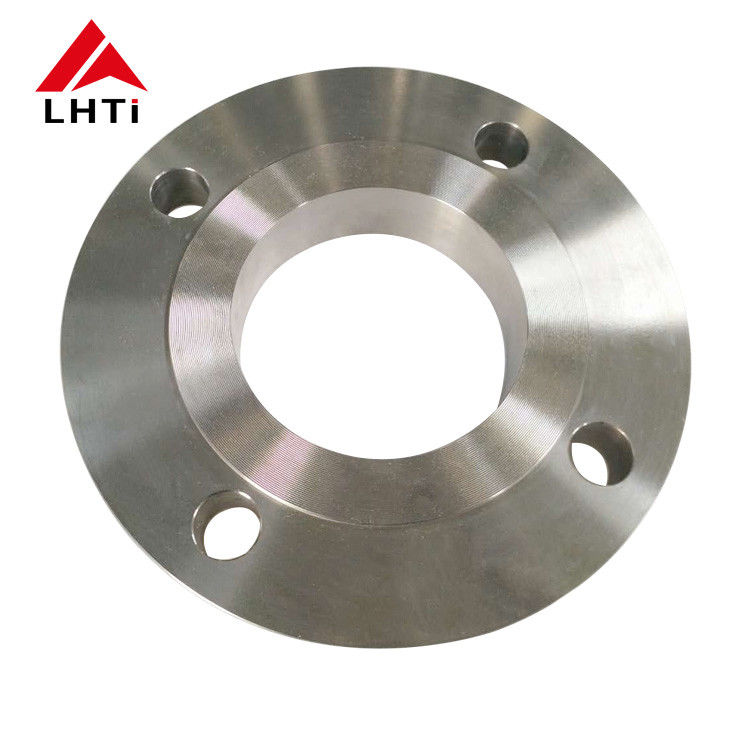

DN100 Gr2 titanium slip on flange

Technical Specifications

Type	Slip on (SO); WN, BL, SW, PL, lap joint also available
Standard	ASME B16.5, ANSI B16.5, JIS B2220, DIN 2627-2628, GB/T 9116
Material	Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Size	DN100 (4 inch); 1/2 inch - 30 inch NB, DN10 - DN2000
Pressure	Class 150; Class 300-2500 and PN6-PN64 also available
Sealing Surface	RF
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing and material test report EN 10204 3.1

Chemical Requirements (wt %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Tensile Requirements

Grade	Tensile Strength min ksi [MPa]	Yield Strength min ksi [MPa]	Elongation %
1	35 [240]	20 [138]	24
2	50 [345]	40 [275]	20
5	130 [895]	120 [828]	10
7	50 [345]	40 [275]	20
12	70 [438]	50 [345]	18

Applications & Titanium Advantages

Titanium flanges are used in petrochemical equipment, pump and valve bodies, pipelines, marine systems, and for medical equipment and general industrial parts. Titanium offers a long service life, excellent corrosion resistance, and high yield and tensile strength, which keeps connections leak-free and reliable.

Quality, Customization & Inquiry

LHTi produces these flanges under ISO 9001 and TUV quality control, and ultrasonic testing plus material test reports to EN 10204 3.1 are available. Custom sizes, types and sealing faces are offered, and flanges are wrapped in foam and packed in a plywood box for export. Please send your drawing or specification for a quotation.
