Bright Gr2 Titanium Bar ASTM B348 6-350mm Round

Name: Bright Gr2 Titanium Bar ASTM B348 6-350mm Round
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: TC26
Price: 40.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	TC26
MOQ:	10kg
Price:	USD 30-50 / kg
Payment Terms:	T/T,,L/C,Western Union,Paypal
Supply Ability:	5 Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Product Name:

Titanium Bar

Standard:

ASTM B348

Material:

TC26

Shape:

Round, Square, Flat, Hex

Diameter:

6-350mm

Length:

Max 6000mm

Surface:

Bright

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Supply Ability:

5 Ton per month

Highlight:

Gr2 Metal Titanium Bar

Bright Surface Titanium Rod

ASTM B348 Metal Titanium Bar

Product Description

Bright Gr2 Titanium Bar ASTM B348 6-350mm Round

LHTi makes this bright surface titanium bar in Grade 2 to ASTM B348, and also in Gr1, Gr5, Gr7, Gr12 and TC26. The bar is supplied round, square, flat or hex, with a diameter of 6mm to 350mm and lengths up to 6000mm. As a titanium manufacturer with more than 16 years of experience, we anneal, forge, mill, straighten and machine the bar in house, and offer MTC such as EN10204.3.1 together with third party testing by TUV, SGS or BV on request.

Technical Specifications

Standard	ASTM B348
Material	Titanium TC26 (Gr2 grade also available)
Grades	Gr1, Gr2, Gr5, Gr7, Gr12, TC26
Shape	Round, square, flat, hex
Diameter	6mm - 350mm
Length	Max 6000mm
Surface	Bright
Condition	Annealed

Chemical Requirements (wt%)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Requirements

Grade	Tensile KSI	Tensile MPa	Yield KSI	Yield MPa	Elongation %
Gr1	35	240	20	138	24
Gr2	50	345	40	275	20
Gr5	130	895	120	828	10
Gr7	50	345	40	275	20
Gr12	70	438	50	345	18

Manufacturing Advantages

As a titanium manufacturer with more than 16 years in the market we keep competitive pricing, and we operate annealing furnaces, forging hammers, milling, straightening, shearing, trimming, punching and sandblasting equipment in house. Our titanium rods are exported worldwide and are supported by MTC to EN10204.3.1 and third party inspection such as TUV, SGS or BV, with EXW, FOB and CIF shipping options.

Detailed Images

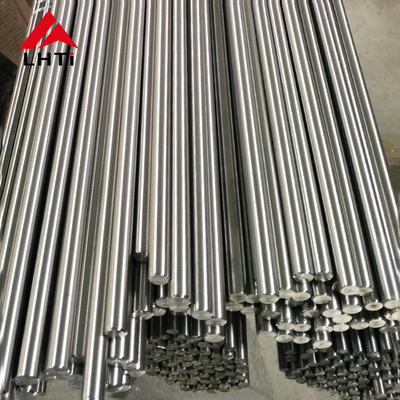

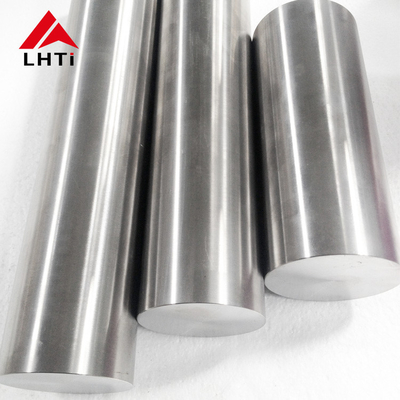

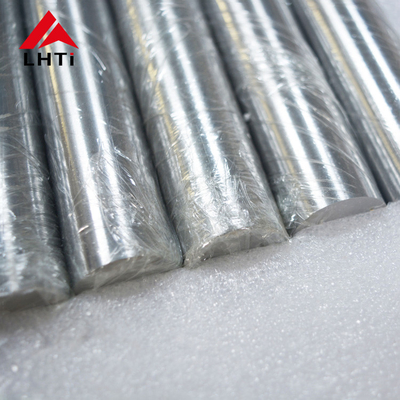

Bright surface Gr2 titanium round bar ASTM B348
