ASME B16.5 JIS B2220 Titanium Flange Gr1 Gr2 Gr5 Gr7 Gr12 Class150/300/600/900/1500/2500 1/2"~ 30"NB Threaded Flange

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

Threaded Flange

Standard:

ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME

Material:

Gr1 Gr2 Gr5 Gr7 Gr12 Etc.

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

Class150/300/600/9001500/2500

Surface:

Polished

Technique:

Forged Casting

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Titanium Pipe Fitting Valves Flanges

Multiport Filter Titanium Blind Flange

Polished Valves Flanges

Product Description

ASME B16.5 JISB Titanium Pipe Fitting Valves Flanges Water Oil Steam Pipe Multiport Filter

New Type Water Oil Steam Pipe Multiport Filter ASME B16.5 JISB titanium Pipe Fitting Valves Flanges

Chemical Requirements

N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	0.2~0.4	0.6~0.9	bal

Tensile Requirements

Grade	Tensile strength (min)	Yield strength	Elongation(%)
	KSI \| MPa	Ksi \| MPa
1	35 \| 240	20 \| 138	24
2	50 \| 345	40 \| 275	20
5	130 \| 895	120 \| 828	10
7	50 \| 345	40 \| 275	20
12	70 \| 438	50 \| 345	18

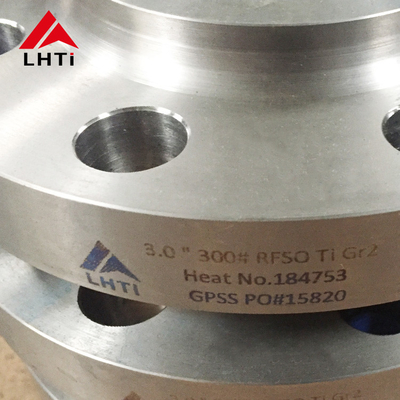

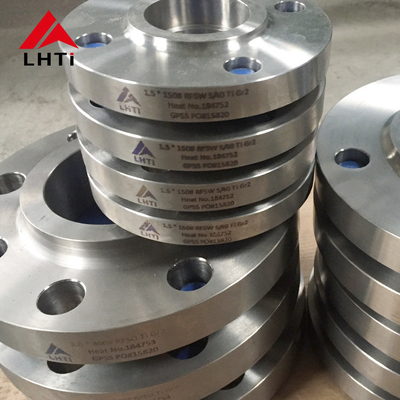

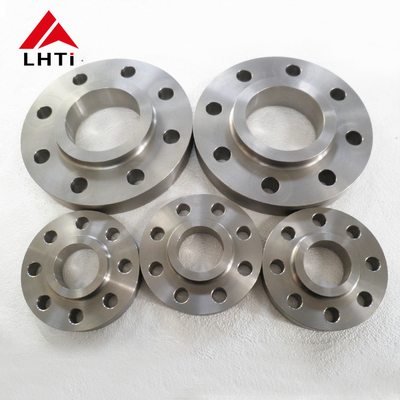

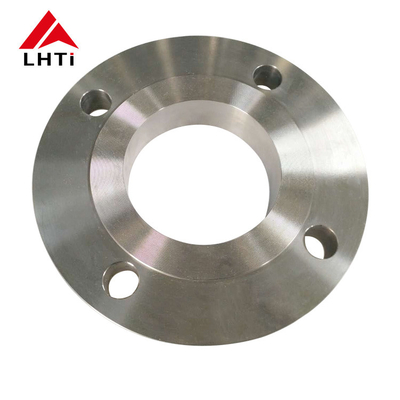

Product Images

Product Parameters

Material Grade:

Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Standard:

ANSI B16.5, JIS B2220, DIN2627-2628, ASME, GB/T 9116, ASTM B16.5

Technique:

Forged and CNC Machined

Type:

WN, SO, BL, SW, PL, Lap joint, customized

Application:

Used in cars, glasses, medical equipment, electronics, petrochemical equipment, pump valve, pipeline, aerospace, ocean industry

Advantage:

Long service life, corrosion-resistant, high yield strength and tensile strength

Size	1/2"~30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc
Flange Face Type	Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)
Grade	Titanium Gr1, Titanium Gr2, Titanium Gr4, Titanium Gr5, Titanium Gr7
Available Dimensions	OD:200-1300mm ID:100-900mm Height:35-250mm
