Product Details
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Type: |
Threaded Flange |
Standard: |
ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME |
Material: |
Gr1 Gr2 Gr5 Gr7 Gr12 Etc. |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
Class150/300/600/9001500/2500 |
Surface: |
Polished |
Technique: |
Forged Casting |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Type: |
Threaded Flange |
Standard: |
ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME |
Material: |
Gr1 Gr2 Gr5 Gr7 Gr12 Etc. |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
Class150/300/600/9001500/2500 |
Surface: |
Polished |
Technique: |
Forged Casting |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |

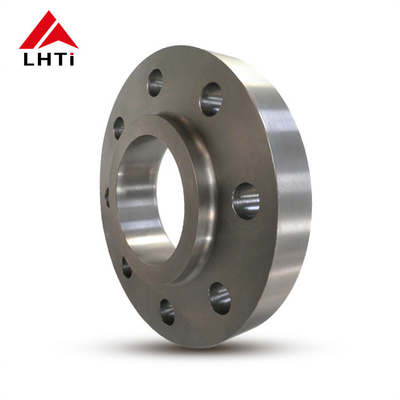

Titanium SO flange Slip On flange ASME B16.5
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

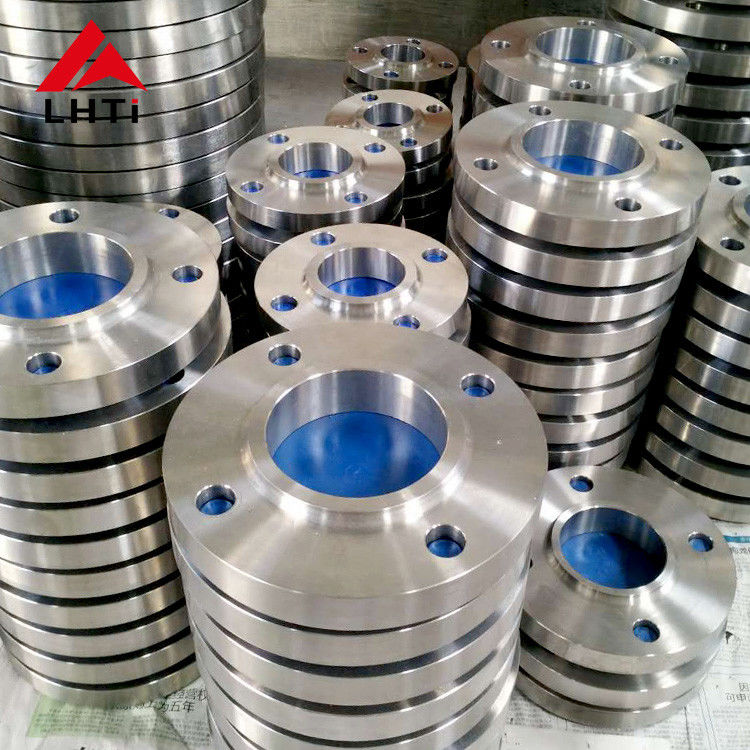

| Item | Titanium Slip On Flange |
| Standard | ANSI B16.5 |
| Material Grade | TA1 TA2 TC4 TA9 TA10 |
| Technique | Forged and CNC Machined |
| Size | 1/2"~ 24" |
| Pressure | 0.6 - 4.0 Mpa |
| Type | RF, MFM, TG, FF |
| Available Flange types |
| Slip On Flange |
| Threaded Flange |
| Plain Flange |
| Blind Flange |
| Lap Joint Flange |
| Socket Welded Flange |
| Welding Neck Flange |
| Titanium large diameter flange |
| Flange ring |
Baoji Lihua group specializes in titanium products and titanium alloy materials, tungsten, molybdenum, tantalum and other rare metals over 15 years. Our products include titanium bars, rods, plates, tubes, wires, coils, fasteners and machined components such as elbows, reducers,bolts, stub ends etc. We process our products according to the standards of GB/T, ASTM/B ASME SB, AMS, DIN, JIS and other requirements from clients. Our products have been widely used in the metallurgy, petrochemical industry, aerospace and aviation, medical instruments, automotive industry and so on. The company has passed ISO9001:2008 Quality Management System certificate. Our company has already complied with modern enterprise management system to establish a complete quality and supervisor control program from raw materials purchase to end products. Our products are quite popular in America, Canada, Brazil, Japan, Korea, Germany, the UK, Australia, Southeast Asia, etc.
About us
Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.
The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.
The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.
The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
FAQ
1. Any discount?
A: The prices we quote are all wholesale price in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best-quality products as we have fully equipped Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are certified manufacturer with our auto parts approved by ISO9001 Quality Management System.
5. How about quality of products?
A: We guarantee strict control on every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: Minimum quantity for certain items is only 10kg. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at anytime.
8. How about delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
