ASTM B348 Polished Titanium Rod Gr2 Gr5 Gr7

Name: ASTM B348 Polished Titanium Rod Gr2 Gr5 Gr7
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium rod
Price: 25.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium rod
MOQ:	50 kgs
Price:	USD20.00-31.00 per kg
Payment Terms:	T/T,,L/C,Western Union
Supply Ability:	300000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Material:

Titanium Alloy

Color:

Natural

Surface:

Polished Surface

Condition:

Annealed

MOQ:

50 Kgs

Diameter:

3mm-350mm

Length:

500-6000mm,or As Customers Request

Packaging Details:

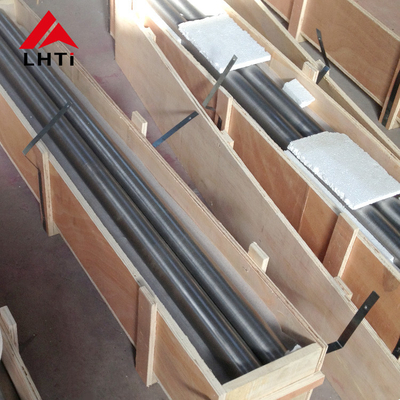

Plywood box with soft foam inside for additional protection against any shipping-induced trauma

Supply Ability:

300000 kg per month

Highlight:

Gr7 Titanium Rod

Polished Surface Titanium Rod

Gr5 Titanium Bar

Product Description

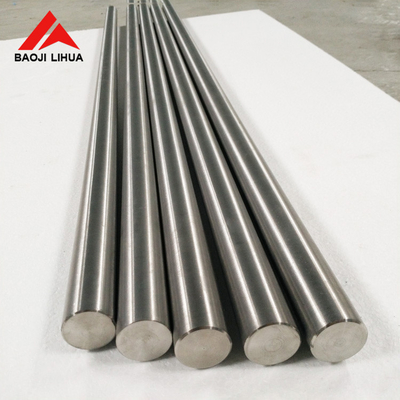

ASTM B348 Polished Titanium Rod Gr2 Gr5 Gr7

These titanium rods are made to ASTM B348 in Gr2, Gr5 and Gr7, supplied annealed with a polished surface in diameters from 3 mm to 350 mm and lengths from 500 mm to 6000 mm or to your request. Titanium combines a high strength-to-weight ratio with excellent corrosion resistance and biocompatibility, so the rod is used for bone and joint implants in the medical industry, for aerospace components, and for high-performance sporting and automotive parts such as racing car components and engine parts that must withstand high temperature and pressure.

ASTM B348 Polished Titanium Rod

Technical Specifications

Standard	ASTM B348
Grade	Gr2, Gr5, Gr7 (Gr1-Gr12 available)
Diameter	3 mm - 350 mm
Length	500 - 6000 mm, or as requested
Surface	Polished
Condition	Annealed
Color	Natural
Application	Medical, aerospace, sports and automotive parts

Chemical Requirements (Wt%)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9

Tensile Requirements

Grade	Tensile Strength min (ksi / MPa)	Yield Strength min (ksi / MPa)	Elongation min %
1	35 / 240	20 / 138	24
2	50 / 345	40 / 275	20
5	130 / 895	120 / 828	10
7	50 / 345	40 / 275	20
12	70 / 438	50 / 345	18

Applications & Inquiry

The versatility and strength of titanium rods make them valuable in many industries: as implants for bone and joint replacement, as light strong corrosion resistant parts in aerospace structures, and as components in high-performance sports and automotive equipment. Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006 and produces titanium, tantalum and nickel products with more than 20 sets of CNC, milling and drilling machines, holding ISO 9001:2015 and BV audit certification. Rods are supplied in diameters from 3 mm to 350 mm with polished annealed surfaces, free samples are available and packing is a plywood box with soft foam inside to protect against shipping damage. Please send your grade, diameter and quantity for a quotation.
