Home > products > Weld Neck Flange > ASME 4" 6" Weld Neck Slip On Titanium Blind Flange RF CLASS 150

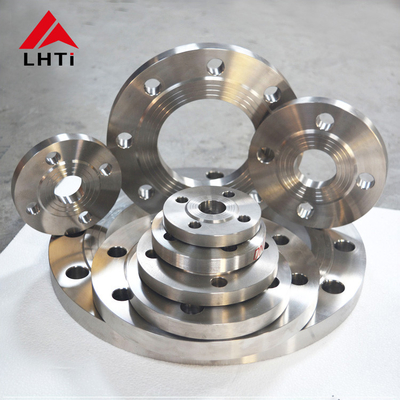

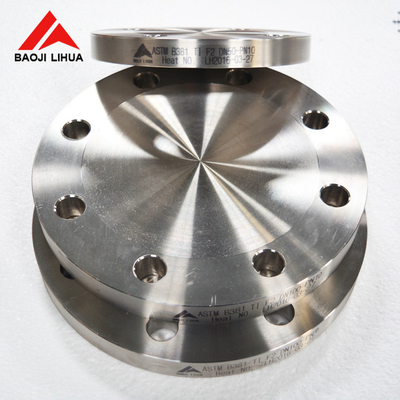

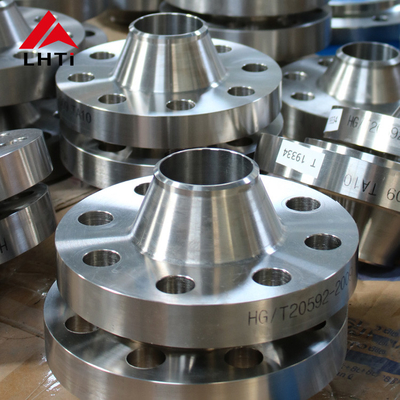

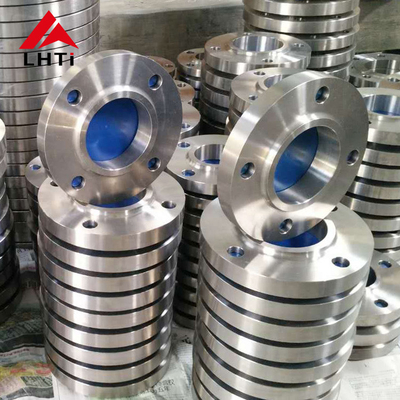

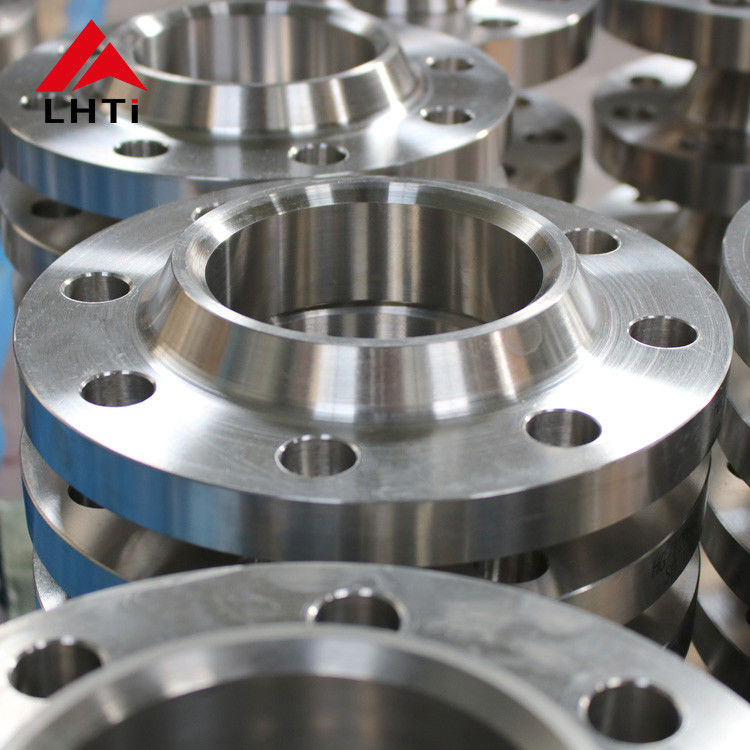

ASME 4" 6" Weld Neck Slip On Titanium Blind Flange RF CLASS 150

Product Details

Place of Origin: China , Shaanxi , Baoji(The titanium valley of China)

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: WN

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: $35 / pc

Packaging Details: Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Delivery Time: 10-15 days

Payment Terms: L/C, T/T, D/P,D/A,Western Union

Supply Ability: 100000 pcs per month

Get Best Price
Highlight:

Slip On Titanium Blind Flange

,

ASME Weld Neck Flange 4"

,

RF CLASS 150 Blind Flange

Material:
Titanium Gr2 Gr5 Gr7
Type:
WN (weld Neck Flange)
Standard:
ASME/ASTM B16.5
Class:
CL300
Size:
2" Sch.20s
Quality Test:
UT,PT Etc.
MOQ:
1PC
The Third Party Test:
TUV,SGS,BV Etc.
Product Name:
ASME Titanium Flanges 4" 6" Weld Neck Slip On Blind Flange RF CLASS 150
Material:
Titanium Gr2 Gr5 Gr7
Type:
WN (weld Neck Flange)
Standard:
ASME/ASTM B16.5
Class:
CL300
Size:
2" Sch.20s
Quality Test:
UT,PT Etc.
MOQ:
1PC
The Third Party Test:
TUV,SGS,BV Etc.
Product Name:
ASME Titanium Flanges 4" 6" Weld Neck Slip On Blind Flange RF CLASS 150
ASME 4" 6" Weld Neck Slip On Titanium Blind Flange RF CLASS 150





ASME Titanium Flanges



Titanium Flange is a part connecting shaft and shaft and is used for connection between pipe ends. It is also used for flanges on the inlet and outlet of equipment for connection between two equipment, such as reducer flange. Flange connection or flange joint refers to a detachable connection in which flanges, gaskets and bolts are connected to each other as a set of combined sealing structures. Pipe flanges refer to the flanges used for pipelines in pipeline installation, and refer to the inlet and outlet flanges of the equipment when used on the equipment. There are holes on the flanges and bolts make the two flanges tightly connected. The flanges are sealed with gaskets.

Flange connection

Product name: ASME Titanium Flanges

Flange type: PL, BL, WN, LP, SO, spectacle etc

Size: 1/2"~80"

Class: Class 150 class 300 class 600 class 900 class 1500

Material: GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)

Standard: ANSI B16.5 ASTM B381

Technique: Forged, CNC machined

Unit price: $5.9-$269/pc (The specific price depends on products)



The usage of various Titanium:

(1) Gr1 can be used in the drawing parts for its good elongation and excellent corrosion- resistance.

(2) Gr2 is the most widely used commercial pure titanium.

(3) Gr3 is almost used in pressure vessels.

(4)Gr4 can be used for some accessory parts and fastening pieces, but it needs 300 degrees Celsius to form complex shapes.

(5) Gr5 alloy is the most widely used titanium alloy due to its comprehensive mechanical and chemical properties.

(6) Gr7 alloy add little palladium in cp titanium and it has the most excellent corrosion- resistance,of course the cost is higher.

(7) Gr9(Ti-3Al-2.5V) alloy is the most widely used alloy in golf clubs and bicycle beams.

(8) Gr23 alloy, ELI(extra low interstitial),can be used in medical industry.

Titanium flange 651



Applications



ASME Titanium Flanges



Production Process



ASME Titanium Flanges



Our Factory

Baoji Lihua Non-ferrous Metals Co., Ltd. has been engaged in the production and export of titanium flanges for more than 15 years, and can produce standard size titanium flanges in accordance with ASME/ANSI, DIN, JIS, EN 1092-1 and other standards. Special-shaped flanges can also be customized according to customer drawings. Welcome to send drawings and customize non-standard flanges.

Titanium forging products include titanium flanges, titanium forged disc/disk/cake, titanium forged rings, titanium blocks and so on. While we provide our customers with good quality products, we guarantee that the price is a competitive in the market.

factory8



Stock



ASME Titanium Flanges



Quality Inspection



ASME Titanium Flanges



Packaging



ASME Titanium Flanges
