UNS R50400 Gr. 2 DIN 3.7035 Forged titanium fange blind flange BL F2 150# 300# 600#

Basic Information
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $180/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Detail Information
Product Name: UNS R50400 Gr. 2 DIN 3.7035 Forged Titanium Fange Blind Flange BL F2 150# 300# 600# Standard: ANSI B16.5
Material: Gr2, Gr7, Gr12 Application: Chemical Industry
Sealing Surface: RF Size: NPS 1/2" - NPS 24"(DN 10 - 2000)
Pressure: 150#-2500# Surface: Polished
Technique: Froged And CNC Machined Inspection: Ultrasonic Testing & Material Test Report EN10204.3.1

Product Description



UNS R50400 Gr. 2 DIN 3.7035 Forged titanium fange blind flange BL F2 150# 300# 600#



BL flange is also know as blind flange. It's a connection form of flange. It's actually a flange without a hole in the middle. One of its functions is to block the end of the pipeline, and the other is to facilitate the removal of debris in the pipeline during maintenance. As far as the blocking effect is concerned, it has the same effect as cap and plug. But there is no way to disassemble the plug, while the bind flange is fixed with bolts, which is very convenient to disassemble.



Blind-Flange



Product Name: Titanium Blind Flange

Standard: ANSI / ASME B16.5

Material: Gr1 Gr2 Gr5 Gr7 Gr12

Application: Chemical industry

Unit Price: $25usd/pc-$85usd/pc

Sealing Surface: RF, FF, TG, RJ etc.

Size: NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure: 150#-2500#

Surface: Polished >

Technique: Forged and CNC Machined

Inspection: UT% PT%<br/>

Certificate: ISO9001, TUV etc.



All quality Tests of Titanium BL Flange:

Visual testing (VT)

Ultrasonic Testing (UT)

Radiographic Testing (RT)

Magnetic particle testing (MT)

Penetrant Testing/Dye penetrate (PT)

Eddy Current testing (ET)

Acoustic Emission(AE)

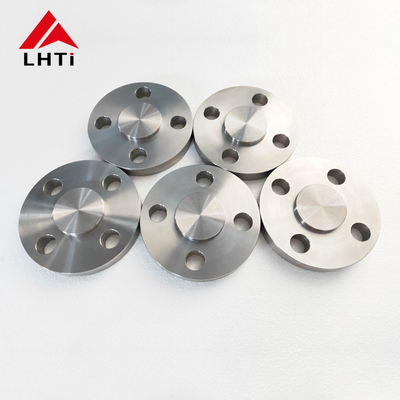

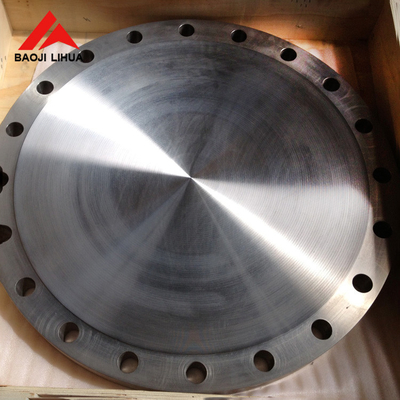

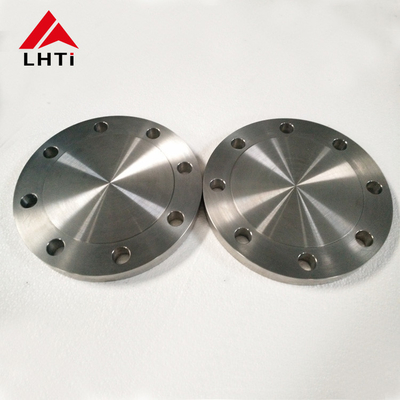

Detailed Image of Titanium BL Flange:bl flangetitanium blind flange



Titanium Blind Flange Class 150
Nom. Pipe Size Flange Dia. Flange Thick Raised Face Dia. No. of Holes Dia. of Bolts Dia. Of Bolt Circle
1/2 3-1/2 7/16 1-3/8 4 1/2 2-3/8
3/4 3-7/8 1/2 1-11/16 4 1/2 2-3/4
1 4-1/4 9/16 2 4 1/2 3-1/8
1-1/4 4-5/8 5/8 2-1/2 4 1/2 3-1/2
1-1/2 5 11/16 2-7/8 4 1/2 3-7/8
2 6 3/4 3-5/8 4 5/8 4-3/4
2-1/2 7 7/8 4-1/8 4 5/8 5-1/2
3 7-1/2 15/16 5 4 5/8 6
3-1/2 8-1/2 15/16 5-1/2 8 5/8 7
4 9 15/16 6-3/16 8 5/8 7-1/2
5 10 15/16 7-5/16 8 3/4 8-1/2
6 11 1 8-1/2 8 3/4 9-1/2
8 13-1/2 1-1/8 10-5/8 8 3/4 11-3/4
10 16 1-3/16 12-3/4 12 7/8 14-1/4
12 19 1-1/4 15 12 7/8 17
14 21 1-3/8 16-1/4 12 1 18-3/4
16 23-1/2 1-7/16 18-1/2 16 1 21-1/4
18 25 1-9/16 21 16 1-1/8 22-3/4
20 27-1/2 1-11/16 23 20 1-1/8 25
24 32 1-7/8 27-1/4 20 1-1/4 29-1/2



Titanium Blind Flange Class 300
Nom. Pipe Size Flange Dia. Flange Thick Raised Face Dia. No. of Holes Dia. Of Bolts Dia. Of Bolt Circle
1/2 3-3/4 9/16 1-3/8 4 1/2 2-5/8
3/4 4-5/8 5/8 1-11/16 4 5/8 3-1/4
1 4-7/8 11/16 2 4 5/8 3-1/2
1-1/4 5-1/4 3/4 2-1/2 4 5/8 3-7/8
1-1/2 6-1/8 13/16 2-7/8 4 3/4 4-1/2
2 6-1/2 7/8 3-5/8 8 5/8 5
2-1/2 7-1/2 1 4-1/8 8 3/4 5-7/8
3 8-1/4 1-1/8 5 8 3/4 6-5/8


titanium flange packagingUNS R50400 Gr. 2 DIN 3.7035 Forged titanium fange blind flange BL F2 150# 300# 600# 4our companyTitanium flange factory 1lihua titanium rod  (1)
