Forged Titanium Blind Flange UNS R50400 Gr2

Brand Name:	LIHUA
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $180/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

UNS R50400 Gr. 2 DIN 3.7035 Forged Titanium Fange Blind Flange BL F2 150# 300# 600#

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2" - NPS 24"(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

F2 Titanium Blind Flange

Gr2 Forged Titanium Blind Flange

Chemical Industry BL Flange

Product Description

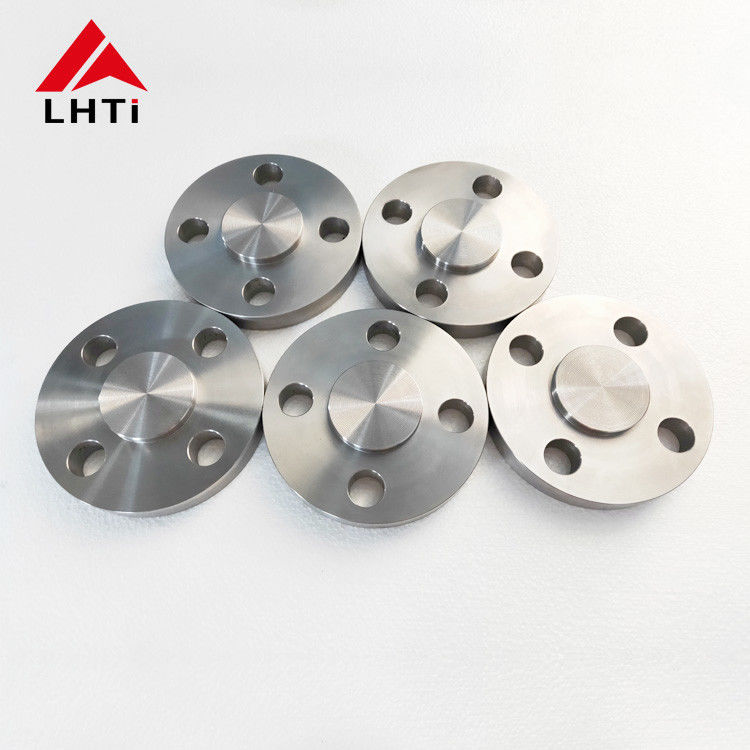

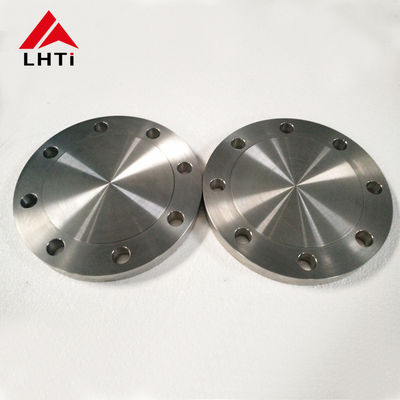

Forged Titanium Blind Flange UNS R50400 Gr2

This forged titanium blind flange is produced from UNS R50400 / Gr.2 / F2 material to DIN 3.7035 and is designed for chemical industry service. The BL flange, also known as a blind flange, is a connection form of flange without a hole in the middle; it blocks the end of a pipeline and is forged and CNC machined for precise dimensions. Grade 2 titanium gives strong corrosion resistance, and the polished surface is suitable for demanding installations.

Technical Specifications

Material	Gr2, Gr7, Gr12 (UNS R50400 / Gr.2 / F2, DIN 3.7035)
Standard	ANSI B16.5
Type	Blind flange (BL)
Sealing Surface	RF
Size	NPS 1/2" - NPS 24" (DN 10 - 2000)
Pressure	150# - 2500#
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing and material test report EN10204.3.1
Model	LH-BL
Application	Chemical industry

Applications & Titanium Advantages

Because titanium resists aggressive chemicals, the flange is mainly used in the chemical industry to blank off pipe ends and valve connections. Compared with conventional metals, titanium offers much better corrosion resistance together with a high strength-to-weight ratio, which extends service life and reduces maintenance in corrosive process lines.

Quality, Customization & Inquiry

Each flange is forged and CNC machined under ISO9001 and TUV quality control, and ultrasonic testing plus a material test report to EN10204.3.1 can be supplied. Size, pressure class, sealing surface and material grade can be customized, the minimum order is only 1 piece, and monthly capacity reaches 5000 pcs. Please send us your drawing or specification for an exact quotation.
