Product Details
Place of Origin: China
Brand Name: LH-Ti
Certification: ISO 9001: 2015
Model Number: BL
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $45-$159 / PC
Packaging Details: Carton box/plywood case
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10000 pcs per month
Porduct Name: |
Customized Forging CNC Gr2 Gr5 Gr7 Gr12 Titanium Blind Flange BL 6" CL 150 |
Material: |
Grade 2 Titanium |
Standard: |
ASTM / ANSI B16.5 |
Flange Type: |
Blind |
Size: |
1/2''~80" |
Pressure: |
Class 150 Class 300 Class 600 Class 900 Class 1500 |
MOQ: |
1PC |
Quality Test: |
Ultrasonic Testing |
Technique: |
Forged, CNC Machined |
Porduct Name: |
Customized Forging CNC Gr2 Gr5 Gr7 Gr12 Titanium Blind Flange BL 6" CL 150 |
Material: |
Grade 2 Titanium |
Standard: |
ASTM / ANSI B16.5 |
Flange Type: |
Blind |
Size: |
1/2''~80" |
Pressure: |
Class 150 Class 300 Class 600 Class 900 Class 1500 |
MOQ: |
1PC |
Quality Test: |
Ultrasonic Testing |
Technique: |
Forged, CNC Machined |
A blind flange is a solid disk used to block off a pipeline or to create a stop. It is machined in the same manner as a regular flange with the mounting holes around the perimeter and the gasket sealing rings machined into the mating surface. The difference is that a blind flange has no opening to allow fluid to pass through. The blind flange can be inserted between two open flanges and used to block off the flow of liquid through a pipeline
Product name: Titanium blind flange,Binld titanium flange,Grade 2 titanium flange,Titanium Flange Manufacturers,Titanium Flange factory
Size: 1'' and 1/2'' ~ 80' (DN40-DN2500)
Standard:ANSI, ASME
Material :Gr2 titanium
Type: Blind flange
Connection type: RF
MOQ: 1 piece
Package: Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case.
Application:Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.
Chemical composition (Wt%)
|
ASTM No. |
Fe max |
O max |
N max |
C max |
H max |
Pd |
Al |
Bal |
|
Grade 2 |
0.3 |
0.25 |
0.03 |
0.1 |
0.015 |
- |
- |
Ti |
Physical Properties (Min)
|
ASTM Grade |
Alloy Composition |
Tensile Strength |
Yield Strength |
Elongation min % |
||
|
ksi |
Mpa |
ksi |
Mpa |
|||
|
Grade 2 |
Unalloyed Ti ("Pure") 50A -CP2 |
64 |
440 |
46 |
320 |
18 |

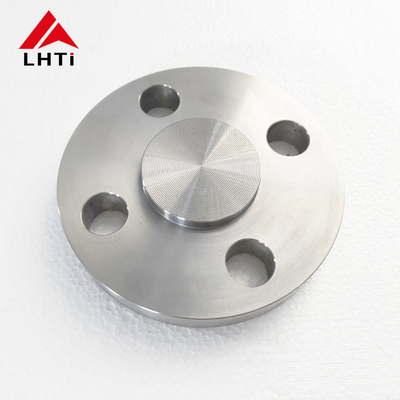

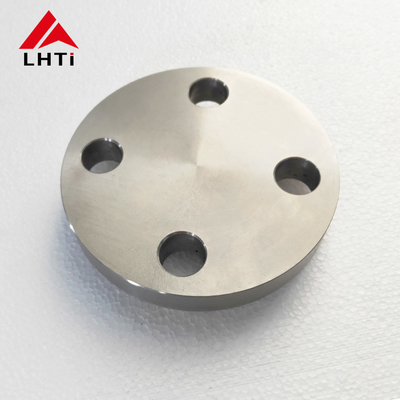

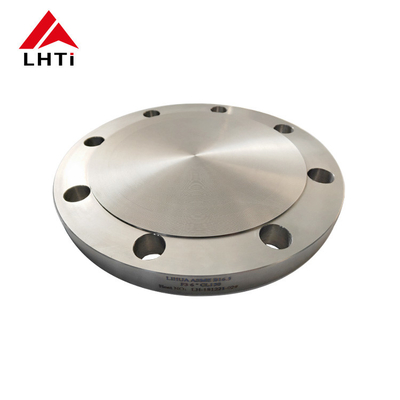

Detailed images of titanium blind flanges:
ASME / ANSI B16.5 Blind Titanium Flanges
· ASME / ANSI B16.5 Flange class 150 Blind Flanges
· ASME / ANSI B16.5 Flange class 300 Blind Flanges
· ASME / ANSI B16.5 Flange class 600 Blind Flanges ASME / ANSI B16.47 Ser. A Blind Titanium Flanges
· ASME / ANSI B16.47 Flange class 150lb ser.A (MSS SP44) Blind Flanges
·ASME / ANSI B16.47 Flange class 300lb Ser.A (MSS SP44) Blind Flanges
· ASME / ANSI B16.47 Flange class 600lb Ser.A (MSS SP44)Blind Flanges
· ASME / ANSI B16.47 Flange class 900lb Ser. A (MSS SP44) Blind Flanges ASME / ANSI B16.47 Ser. B Titanium Blind Flanges
· ASME / ANSI B16.47 Flange class 75lb ser.B (API 605) Blind Flanges
· ASME/ ANSI B16.47 Flange class 150lb ser.B (API 605) Blind Flanges
· ASME / ANSI B16.47 Flange class 300lb Ser.B (API 605) Blind Flanges
· ASME / ANSI B16.47 Flange class 600lb Ser.B (API 605) Blind Flanges
· ASME / ANSI B16.47 Flange class 900lb Ser.B (API 605) Blind Flanges
About us
Baoji Lihua , lies in Baoji city of Shaanxi province, which is famous for "The titanium valley of China". Our factory has more than 15 years producing experience and more than 14 years export experience of titanium flanges. Because we have our own equipment and machines, the titanium flanges produced by our factory are of good quality, high precision and long service life. All flanges are produced in strict accordance with American standards: ANSI/ASME B16.5 ,ANSI/ASME B16.47 ASTM B381, and their chemical composition and physical properties both can meet international standards. We can also produce JIS standard, DIN standard, Russian standard Titanium flange. In addition to the usual quality inspections such as ultrasonic testing(UT), PMI tec, we can also accept third-party inspections from customers, such as SGS, TUV, BV, etc.
