ASME B16.5 Pipe RF Titanium Blind Flange 4" Class 300 UNS R50400

Basic Information
Place of Origin: China , Shaanxi , Baoji(The titanium valley of China)
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: WN
Minimum Order Quantity: 1 pc
Price: $35 / pc
Packaging Details: Standard exporting packing: protecting foam and EPE inside and plywood case outside.
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P,D/A,Western Union
Supply Ability: 100000 pcs per month
Detail Information
Material: Titanium Gr2 Type: BL (blind Flange)
Standard: ASME/ASTM B16.5 Class: CL300
Size: 2" Sch.20s Quality Test: UT,PT Etc.
MOQ: 1PC The Third Party Test: TUV,SGS,BV Etc.
Product Name: ASME B16.5 BL RF Titanium Blind Flange 4" Class 300 UNS R50400 Pipe Flanges
High Light:

Pipe Titanium Blind Flange

,

Class 300 Titanium Blind Flange

,

UNS R50400 Pipe Flanges


Product Description





A blind flange is a solid disk used to block off a pipeline or to create a stop. It is machined in the same manner as a regular flange with the mounting holes around the perimeter and the gasket sealing rings machined into the mating surface. The difference is that a blind flange has no opening to allow fluid to pass through. The blind flange can be inserted between two open flanges and used to block off the flow of liquid through a pipeline

Product name: Titanium blind flange,Binld titanium flange,Grade 2 titanium flange,Titanium Flange Manufacturers,Titanium Flange factory

Size: 1'' and 1/2'' ~ 80' (DN40-DN2500)

Standard:ANSI, ASME

Material :Gr2 titanium

Type: Blind flange

Connection type: RF

MOQ: 1 piece

Package: Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case.

Application:Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.



Chemical composition (Wt%)

ASTM No.

Fe max

O max

N max

C max

H max

Pd

Al

Bal

Grade 2

0.3

0.25

0.03

0.1

0.015

-

-

Ti



Physical Properties (Min)

ASTM Grade

Alloy  Composition

Tensile Strength

Yield Strength

Elongation min %

ksi

Mpa

ksi

Mpa



Grade 2

Unalloyed Ti ("Pure") 50A -CP2

64

440

46

320

18

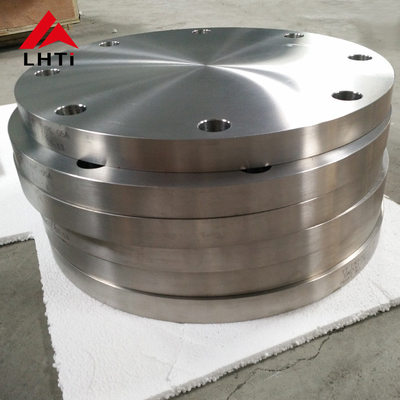

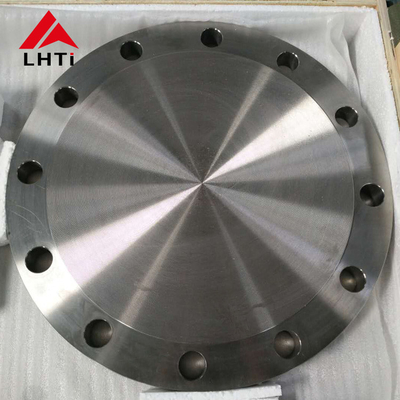

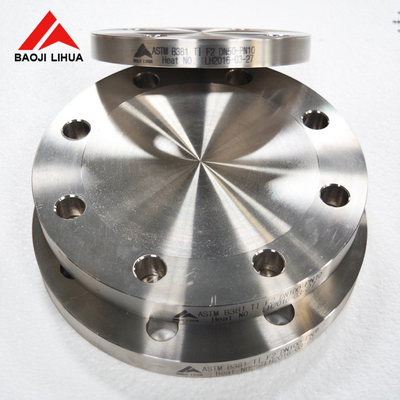

Detailed images of titanium blind flanges:

titanium blind flange (1)IMG20190105143137mmexport1490952638780 nickel flange 2so titanium flange



ASME / ANSI B16.5 Blind Titanium Flanges

· ASME / ANSI B16.5 Flange class 150 Blind Flanges

· ASME / ANSI B16.5 Flange class 300 Blind Flanges

· ASME / ANSI B16.5 Flange class 600 Blind Flanges  ASME / ANSI B16.47 Ser. A Blind Titanium Flanges

· ASME / ANSI B16.47 Flange class 150lb ser.A (MSS SP44) Blind Flanges

·ASME / ANSI B16.47 Flange class 300lb Ser.A (MSS SP44) Blind Flanges

· ASME / ANSI B16.47 Flange class 600lb Ser.A (MSS SP44)Blind Flanges

· ASME / ANSI B16.47 Flange class 900lb Ser. A (MSS SP44) Blind Flanges  ASME / ANSI B16.47 Ser. B Titanium Blind Flanges

· ASME / ANSI B16.47 Flange class 75lb ser.B (API 605) Blind Flanges

· ASME/ ANSI B16.47 Flange class 150lb ser.B (API 605) Blind Flanges

· ASME / ANSI B16.47 Flange class 300lb Ser.B (API 605) Blind Flanges

· ASME / ANSI B16.47 Flange class 600lb Ser.B (API 605) Blind Flanges

· ASME / ANSI B16.47 Flange class 900lb Ser.B (API 605) Blind Flanges



titanium flange packagingTitanium flange



About us

Baoji Lihua , lies in Baoji city of Shaanxi province, which is famous for "The titanium valley of China". Our factory has more than 15 years producing experience and more than 14 years export experience of  titanium flanges. Because we have our own equipment and machines, the titanium flanges produced by our factory are of good quality, high precision and long service life. All flanges are produced in strict accordance with American standards: ANSI/ASME B16.5 ,ANSI/ASME B16.47 ASTM B381, and their chemical composition and physical properties both can meet international standards. We can also produce JIS standard, DIN standard, Russian standard Titanium flange. In addition to the usual quality inspections such as ultrasonic testing(UT), PMI tec, we can also accept third-party inspections from customers, such as SGS, TUV, BV, etc.
