ANSI B16.5 Titanium Blind Flange with GR2 GR7 GR12 Material and EN10204.3.1 Test Report for Chemical Industry

Brand Name:	LIHUA
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Ansi Titanium Blind Flange

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Raised Face Titanium Blind Flange

Gr12 Raised Face Flange

CNC Machined Titanium Pipe Blind Flange

Product Description

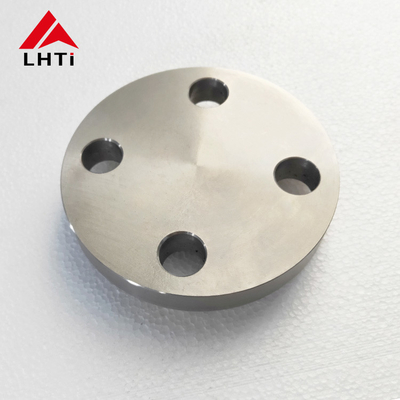

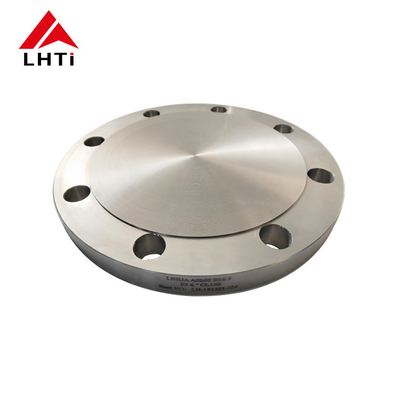

ANSI B16.5 GR2 GR7 GR12 Titanium Blind Flanges for Pipe Fittings

Product Overview

High-quality titanium blind flanges designed for demanding industrial applications, offering exceptional corrosion resistance and durability in chemical and petrochemical environments.

Product Specifications

Parameter	Details
Product Name	Titanium Blind Flanges
Flange Type	BL
Standard	ANSI B16.5, ANSI B16.47A, ANSI B16.47
Size Range	1/2" to 60"
Class Rating	150 to 20000 LBS
Material Grades	Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
Manufacturing Process	Forged, CNC Machined
Surface Finish	CNC Machined Polished
Facing Types	RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint), RJ (Ring Joint Face), TG (Tongue and Groove Face), MFM (Male and Female Face)
Primary Applications	Pipe connections for chemical and petrochemical equipment. Excellent performance in corrosive environments due to low density material properties.

Dimensional Tolerances (ASME B16.5)

Dimension	Tolerance
Outside Diameter	≤24" = ±1.6mm \| >24" = ±3.2mm
Diameter of Contact Face	1.6mm Raised Face = ±0.8mm \| 6.35mm Raised Face, Tongue & Groove/Male-Female = ±0.4mm
Outside Diameter of Hub	2≤1 = +2.4mm/-1.6mm \| ≥14 = ±3.2mm
Drilling Bolt Circle	±1.6mm
Bolt Hole Spacing	±0.8mm
Eccentricity of Bolt Circle	≤2½ = 0.8mm max \| ≥3 = 1.6mm max
Thickness	≤18 = +3.2mm/-0 \| ≥20 = +4.8mm/-0
Length thru Hub	≤18 = +3.2mm/-0.8mm \| ≥20 = +4.8mm/-1.6mm
